Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-SFP-10G-SR

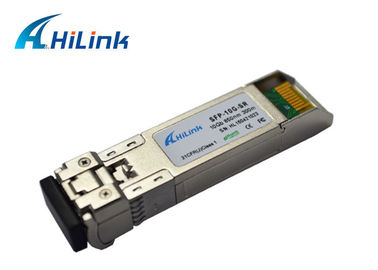

Dual Fiber SFP+ Transceiver Cisco Compatible SFP-10G-SR 850nm 300m DDM
Feature
Hot-pluggable SFP+ footprint
Supports 9.95 to 10.3 Gb/s bitrates
Power dissipation < 1W
RoHS-6 compliant (lead-free)
Commercial temperature rang 0C to 70C
Single 3.3Vpower supply
Maximum link length of 300m on 2000 MHZ-km MMF
Receiver limiting electrical interface
Duplex LC connector
Built-in digital diagnostic functions
850nm VCSEL transmitter, PIN photo-detector
All-metal housing for superior EMI performance
Advanced firmware allow customer system encryption information to be stored in
transceiver
Application
10GBASE-SR/SW 10G Ethernet
Performance Specifications
Absolute maximum rating
Exceeding the limits below may damage the transceiver module permanently.
Parameter
| Datarate | 10Gbps | Fiber Type | MMF |
| Transmitter | VCSEL | Receiver | PIN |
| Distance | 300M | Wavelenth | 850nm |
| DDM/DOM | Yes | Connector | LC |
| Voltage Supply | 3.3V | Compatibility | Cisco/Huawei/Mikrotik etc |
| Operating Temperature | 0℃~ +70℃ | Certification | CE/FCC/RoHS |
SFP+ Transceivers
| Cisco Part Number | Application | Data Rate | Wavelength | Distance |
Connector Type |
| SFP-10G-SR | SFP+ 10GBASE-SR | 10G | 850nm | 300m | LC |
| SFP-10G-LR | SFP+ 10GBASE-LR | 10G | 1310nm | 10km | LC |
| SFP-10G-LRM | SFP+ 10GBASE-LRM | 10G | 1310nm | 220m | LC |
| SFP-10G-ER | SFP+ 10GBASE-ER | 10G | 1550nm | 40km | LC |
| SFP-10G-ZR | SFP+ 10GBASE-ER | 10G | 1550nm | 80km | LC |
