Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC RoHS
Model Number:
SFP-10G-ER
Hilink's HLSP551XL-C(I)D80 Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 10-Gigabit Ethernet links up to 80km over Single-Mode fiber, and it can support data rate from 9.95Gb/s to 11.1Gb/s. Digital diagnostics are available via I2C interface as specified in the SFP+ MSA.
They are compliant with SFF-8431 ,SFF-8432 and IEEE 802.3ae 10GBASE-ZR/ZW. The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for telecommunication.
| Item No. | SFP-10G-ZR | Vendor Name | Hilink |
| Form Type | SFP+ | Max Data Rate | 10Gbps |
| Wavelength | 1550nm | Max Cable Distance | 80KM |
| Interface | LC duplex | Optical Components | EML |
| Cable Type | SMF | DOM Support | Yes |
| TX Power | 0~+4dBm | Receiver Sensitivity | <-24dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8517706000 |
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Features
1550nm cooled EML Transmitter
High sensitivity APD Receiver
Distance up to 80km over SMF
Single 3.3V Power supply and TTL Logic Interface
Duplex LC Connector Interface
Power Dissipation: SFP+< 1.5W
Compliant with SFF-8431 MSA, SFF-8432 MSA, SFF-8472 MSA
Digital Diagnostic Monitoring Function
Operating Temperature: 0-70℃
Specifications
Applications
10GBASE-ZR/ZW
10G Fiber Channels
Other optical links

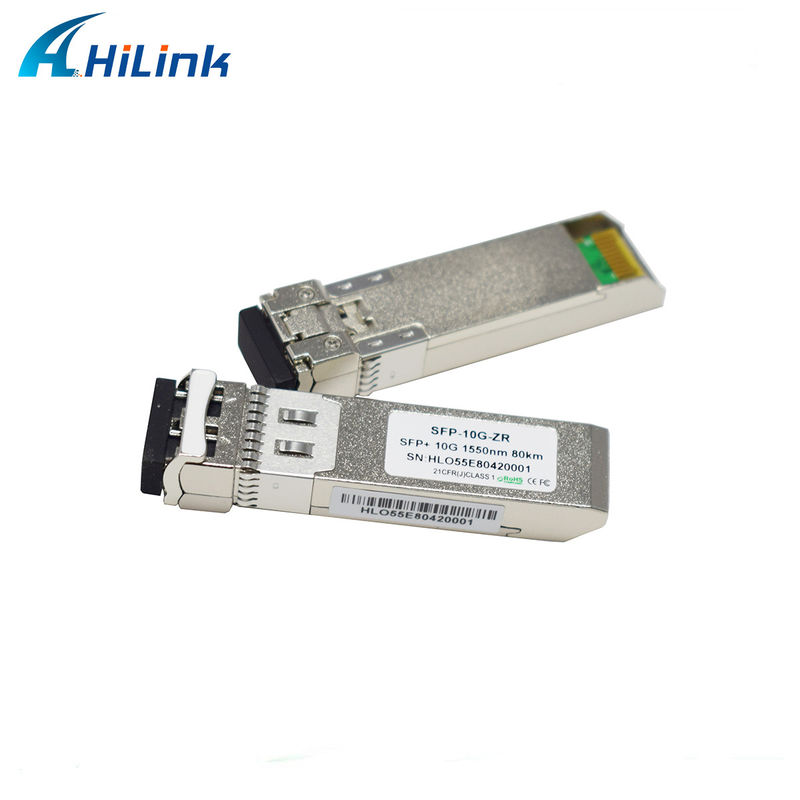

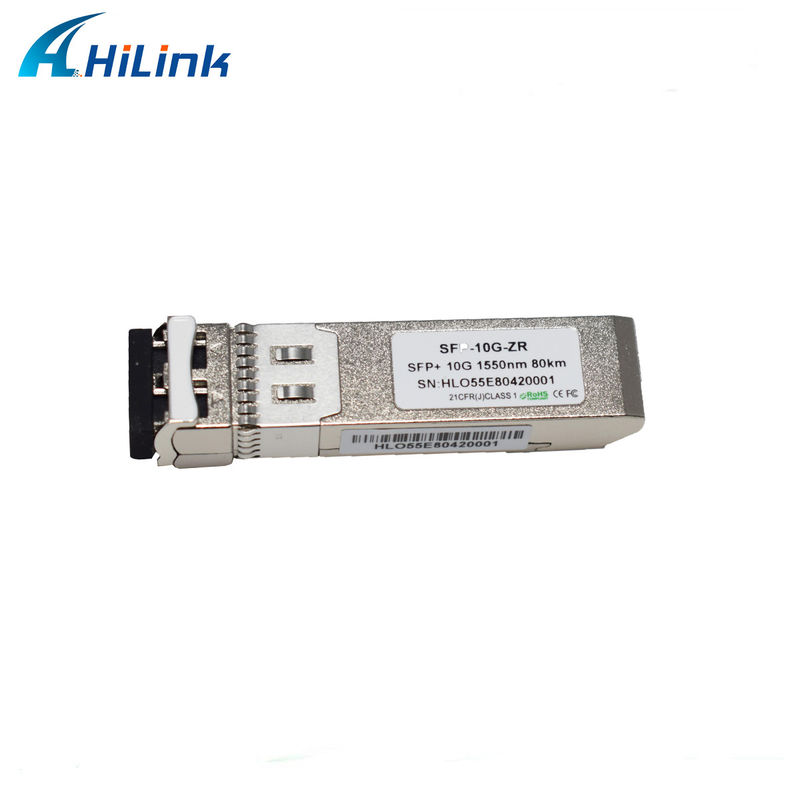

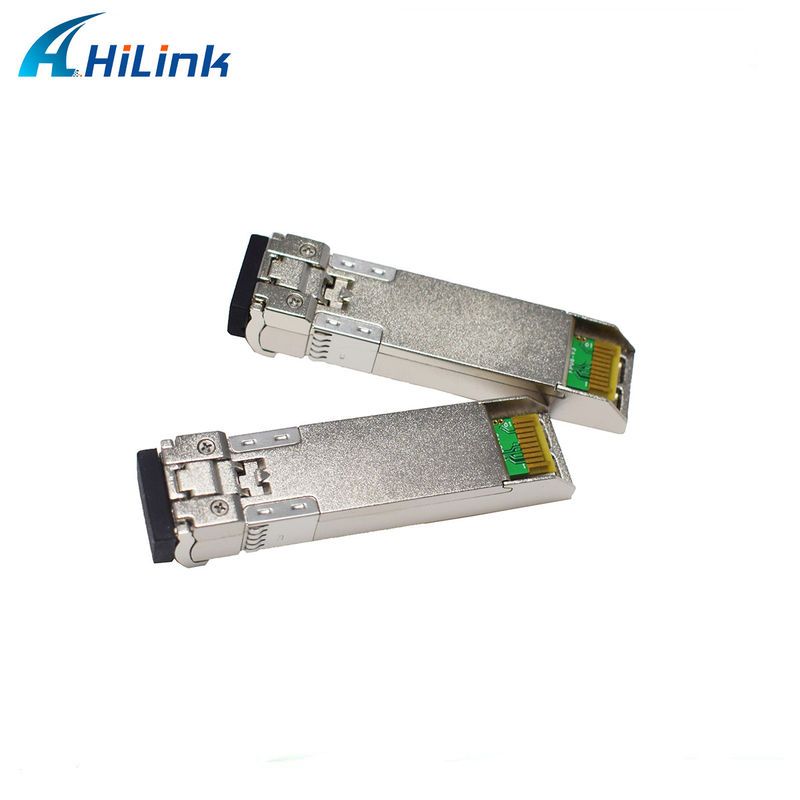

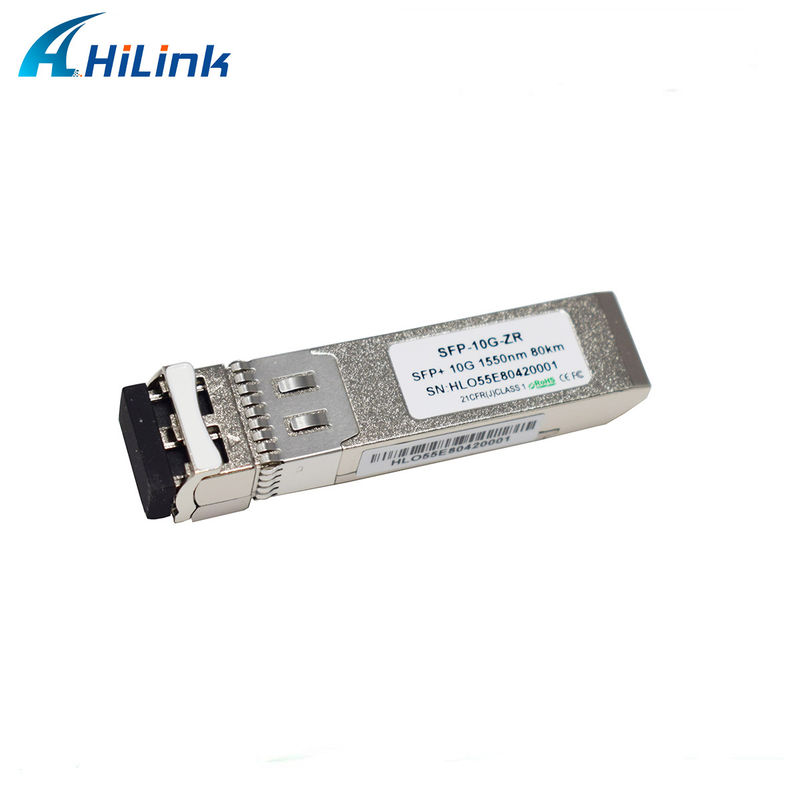

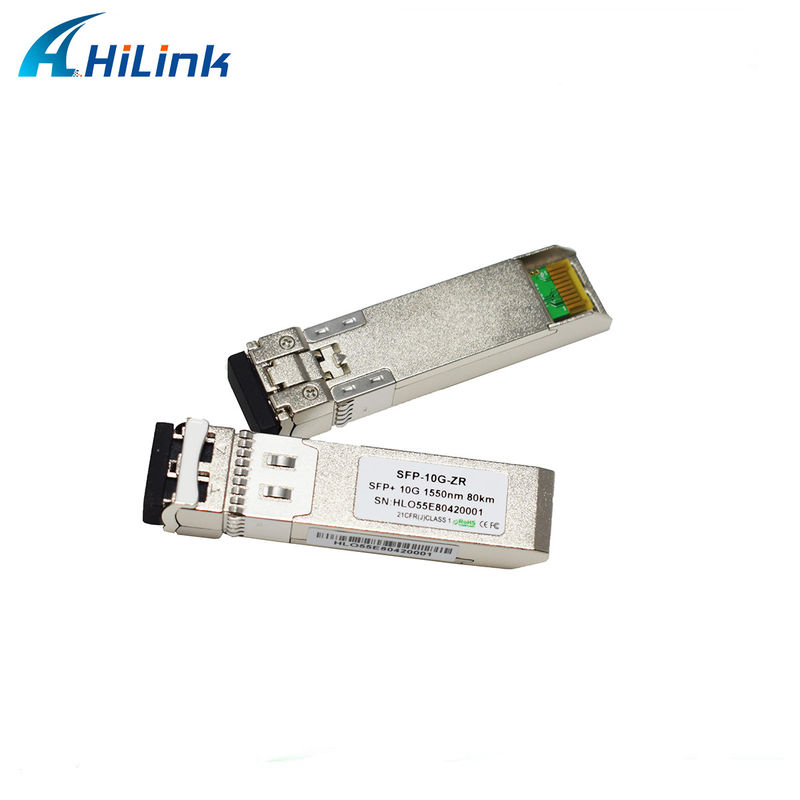

Details Photos
Hilink Advantage
1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
