Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-GPON-OLT-C+
GPON SFP OLT C+ Module 20KM SC/UPC 1490nm/1310nm SFP 2.5Gbps/1.25Gbps GPON OLT
General
GPON OLT SFP is designed for OLT side in GPON network. OLT is a equipment integrating L2/L3 switch function, which is located in central office (CO). The main function is to control the information float in both directions: upstream and downstream.
The GPON OLT module plays an inevitable role in the upstream and downstream transmission. In order to put across the transmission process, the downstream transmission is taken as an example. A single mode optical fiber coming from OLT (at the central office) PON port, runs to the passive optical splitter (POS) located near end users. And then the optical splitter will divide signals into separate paths which can provide service up to 64 end users.
In this basic GPON topology, a GPON OLT module is used to connect a single-mode fiber patch cable to a passive optical splitter. Therefore, GPON OLT transceiver works to get the data, voice and video traffic from metro network or from a long-haul network.
Features
Single fiber bi-directional data links asymmetric TX 2488Mbps/RX1244Mbps application
1490nm continuous-mode DFB laser transmitter and 1310nm burst-mode APD-TIA receiver
Small Form Factor Pluggable package with SC/UPC Connector
0 to 70°C operating temperature
Single 3.3V power supply
Digital diagnostic monitoring interface
Digital burst RSSI function to monitor the input optical power level
LVPECL compatible data input/output interface
LVTTL transmitter disable control
LVTTL transmitter laser fault alarm
Fast LVTTL receiver Signal Detect (SD) indication response
Low EMI and excellent ESD protection
Class I laser safety standard IEC-60825 compliant
RoHS6 Compliance
Application
Gigabit-capable Passive Optical Networks (GPON)
Standards
Complies with SFP Multi-Source Agreement (MSA) SFF-8074i
Complies with ITU-T G.984.2 Amendment 1
Complies with FCC 47 CFR Part 15, Class B
Complies with FDA 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
Complies with SFF-8472
Compatible with TR-NWT-000870 4.1 ESD sensitivity classification Class2.
Compatible with Telcordia GR-468-CORE

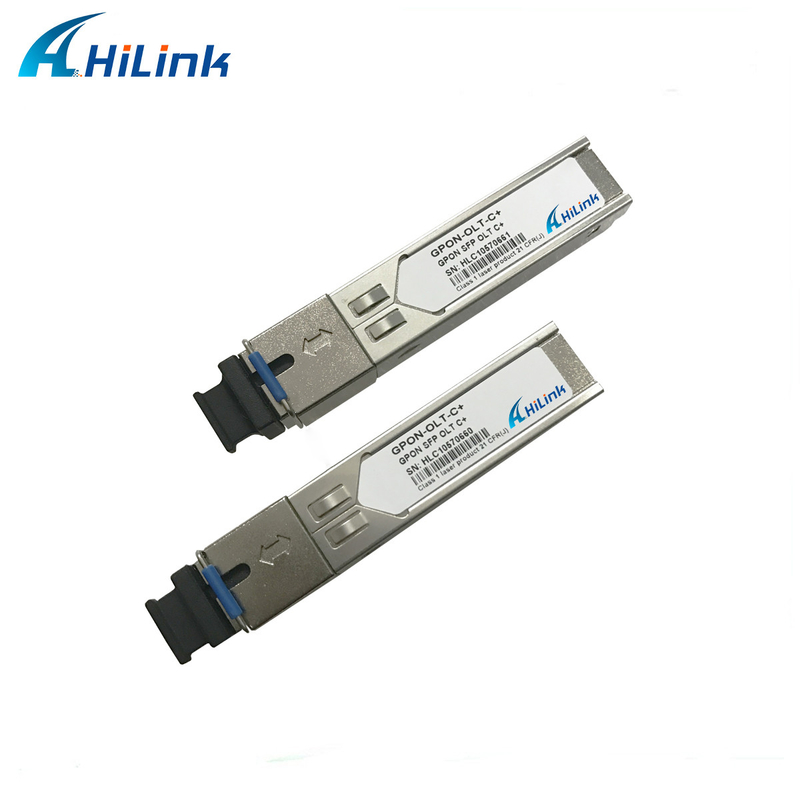

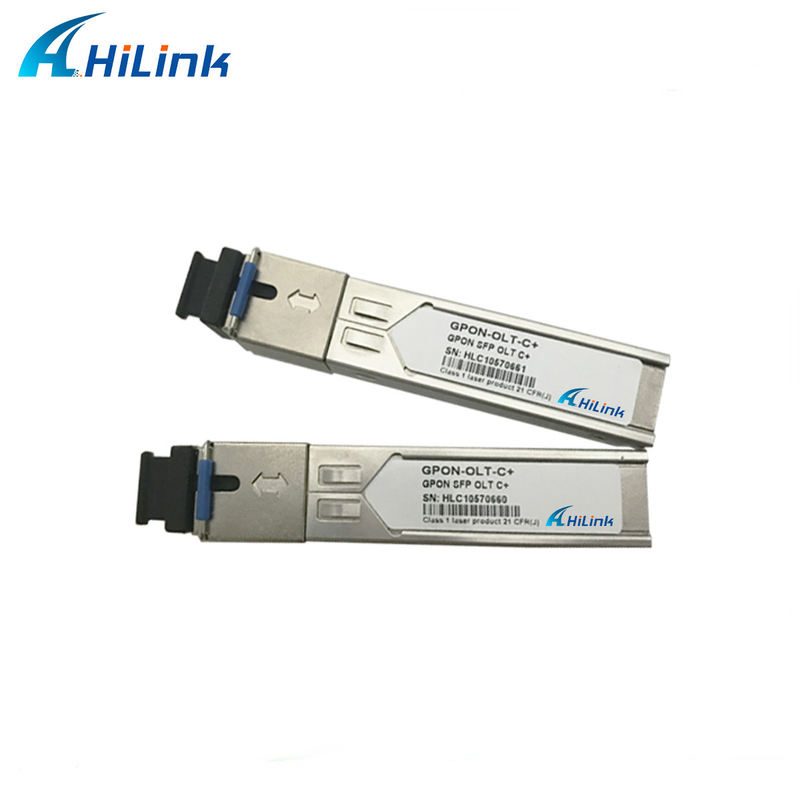

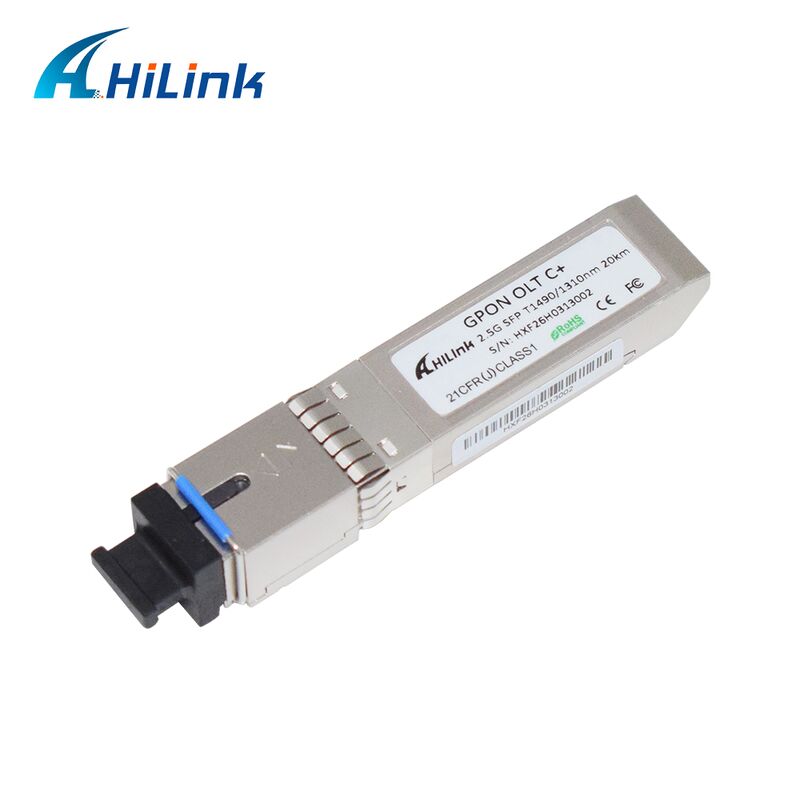

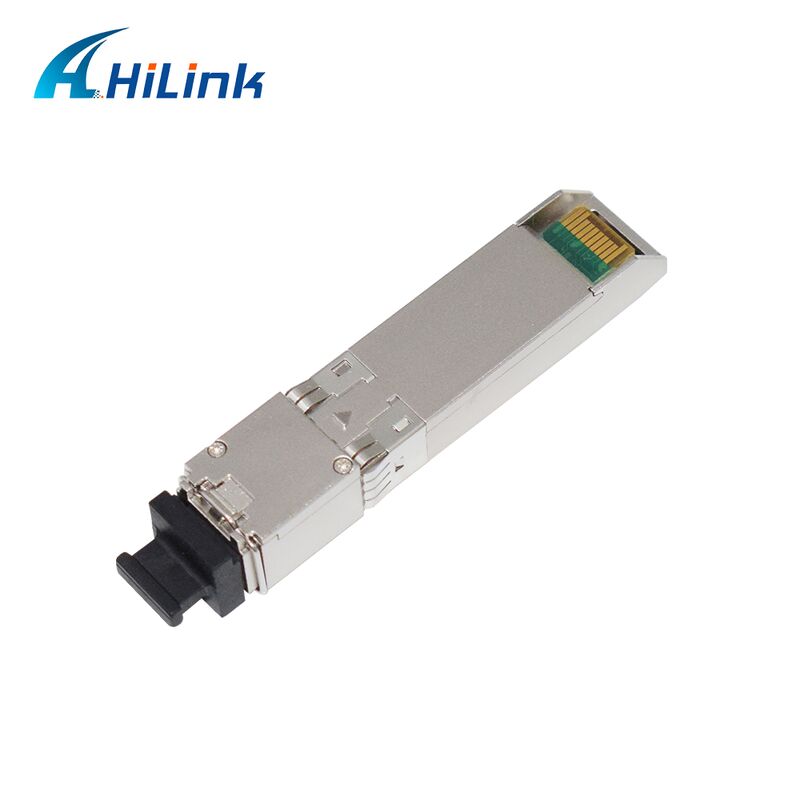

Product Picture
Solution:
Ordering Information
| Part. No | Specifications | ||||
| Package | Class |
Temperature (°C) |
Reach (km) |
DDM | |
| HL-GPON-OLT-B+ | SFP | GPON OLT Class B+ | -5~70 | 20 | Y |
| HL-GPON-OLT-B+ IT | SFP | GPON OLT Class B+ | -40~85 | 20 | Y |
| HL-GPON-OLT-C+ | SFP | GPON OLT Class C+ | -5~70 | 20 | Y |
| HL-GPON-OLT-C+ IT | SFP | GPON OLT Class C+ | -40~85 | 20 | Y |
| HL-GPON-OLT-C++ | SFP | GPON OLT Class C++ | -5~70 | 20 | Y |
| HL-GPON-OLT-C+++ | SFP | GPON OLT Class C+++ 7dBm | -5~70 | 20 | Y |
