Place of Origin:
China
Brand Name:
Hilink
Certification:
CE FCC Rohs
Model Number:
HL-Switch-8-PoE

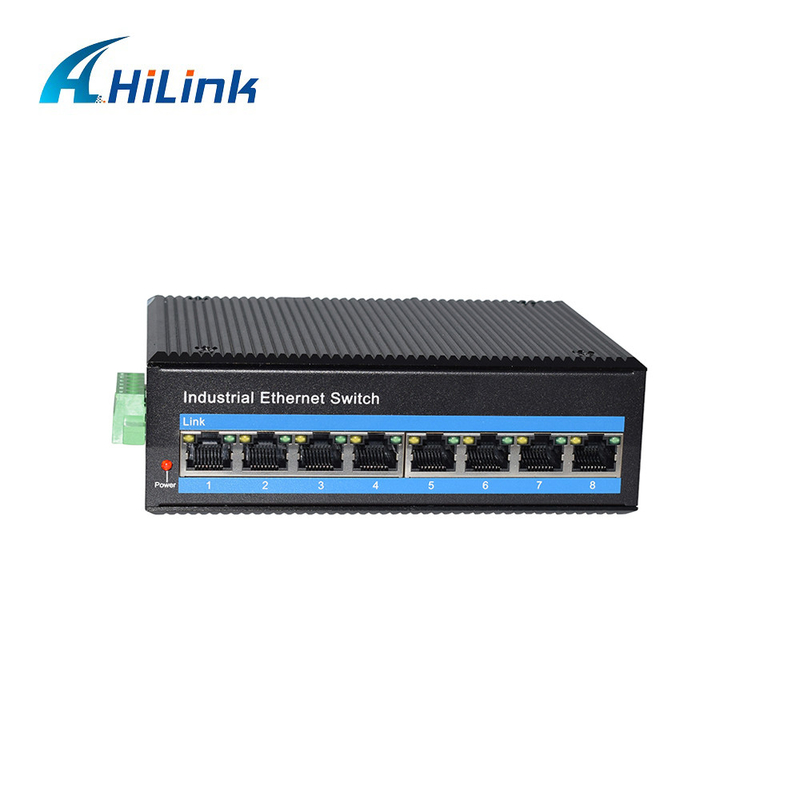

8 Port 10/100/1000Base-Tx Auto-sensing PoE Industrial Ethernet Switch FCC CE
Hilink Industrial Ethernet Switch, 8 Port 10/100/1000 Ethernet ports , for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, industrial VoIP phone, wireless AP and other devices. Specially designed for harsh outdoor applications. Its 6KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted PoE system. Power input also chooses industry-standard types of power
• 8 Port 10/100/1000Mbps Ethernet RJ45 ,
• Automatic MAC address learning and aging
• Automatically support IGMP (Multicasting)
• 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
• LED indicators for monitoring power/link/activity
• Supports 10/100/1000Mbps-Full/Half-duplex
• Supports Wall-mount and DIN-Rail installation for lightning protection
• Supports Daisy-Chain connection
• Supports Broadcast Storm Control
• Super lightening protection, IP40 protection.
• Excellent heat elimination without cooling fan.
• Redundant dual DC power inputs.
• Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
• Harsh industrial environment or higher requirement
• -40℃-85℃ operating temperature range.
• 3-Years Warranty
|
Interface |
8x10/100/1000Base-T Ethernet port |
|
Network Protocols |
IEEE802.3 10BASE-T; IEEE802.3i 10BaseT; IEEE802.3u; 100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
|
Network Media |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤10meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
|
Performance Specification |
Bandwidth: 20Gbps Packet Buffer Memory:2M Packet Forwarding Rate:1488000pps/port MAC Address Table: 8K |
|
Forwarding Mode |
Store-and-Forward |
|
Protection |
Lightening protection, IP40protection |
|
LED Indicators |
Power: Red Ethernet: Yellow POE: Green |
|
Power Supply |
12 to 52V DC redundant power |
|
Working Environment |
Working temperature: -40～80℃ ; Storage temperature: -40～80℃ Relative Humidity: 5%~95 %( no condensation) |
Hilink Advantages
1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
