Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC RoHS
Model Number:
SFP-10G-ER

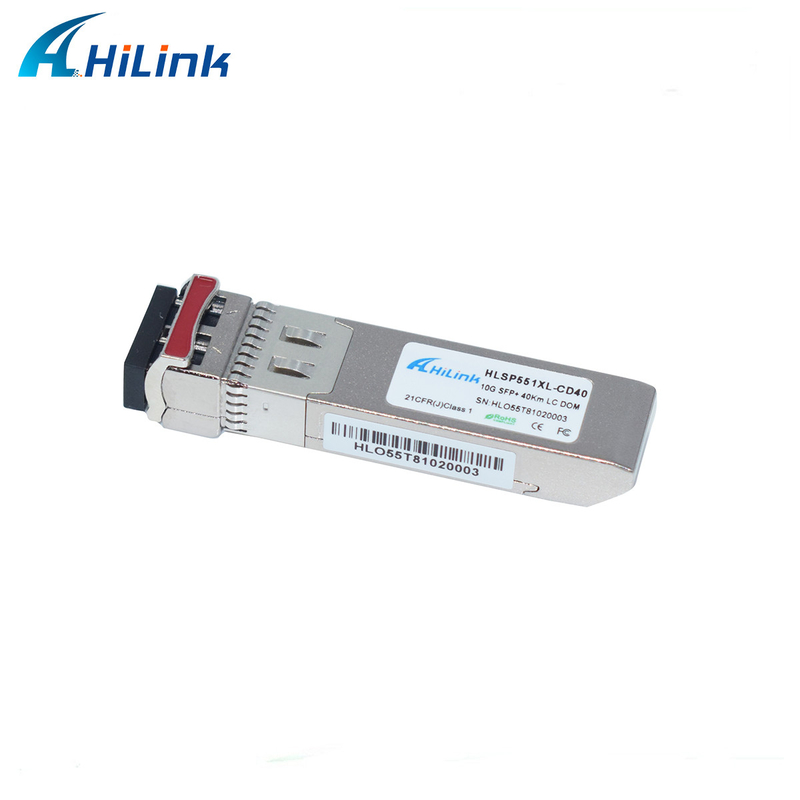

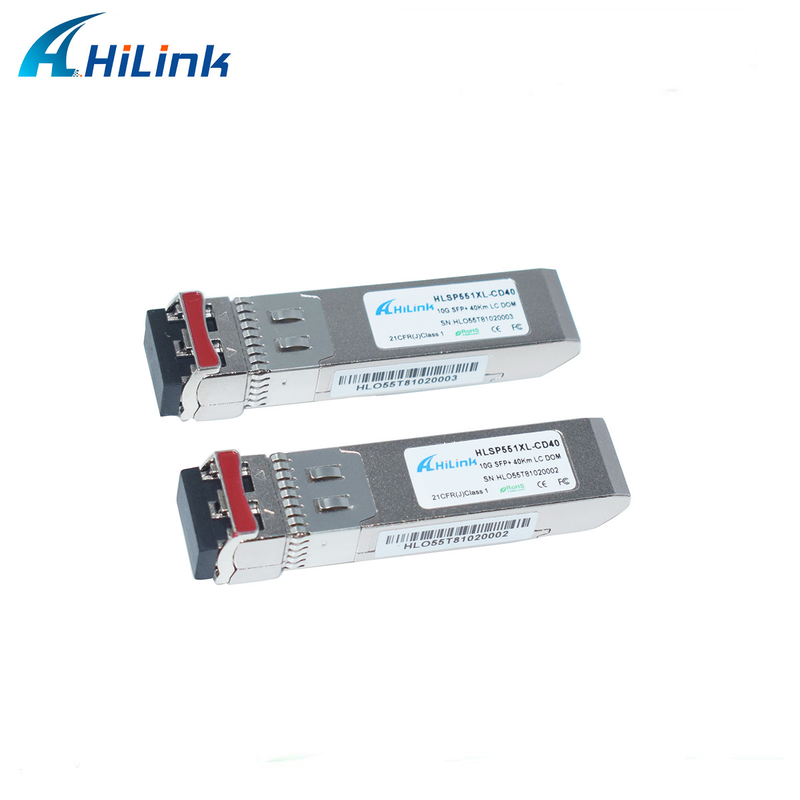

Hilink's HLSP551XL-C(I)D40 Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 10-Gigabit Ethernet links up to 40km over Single-Mode fiber, and it can support data rate from 9.95Gb/s to 11.1Gb/s. Digital diagnostics are available via I2C interface as specified in the SFP+ MSA.
They are compliant with SFF-8431 ,SFF-8432 and IEEE 802.3ae 10GBASE-ER/EW. The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for telecommunication.
| Item No. | SFP-10G-ER | Vendor Name | Hilink |
| Form Type | SFP+ | Max Data Rate | 10Gbps |
| Wavelength | 1550nm | Max Cable Distance | 40KM |
| Interface | LC duplex | Optical Components | EML |
| Cable Type | SMF | DOM Support | Yes |
| TX Power | -1~+2dBm | Receiver Sensitivity | <-16dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8517706000 |
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Features
Supports 9.95 to 11.3Gb/s bit rates
Duplex LC connector
Hot pluggable SFP+ footprint
Cooled 1550nm EML transmitter, PIN photo-detector
Applicable for 40km SMF connection
Low power consumption, < 1.2W
Digital Diagnostic Monitor Interface
Optical interface compliant to IEEE 802.3ae 10GBASE-ER
Electrical interface compliant to SFF-8431, SFF-8432
Operating case temperature: Commerical: 0 to 70 °C
Industrial: -5 to 80 °C
Applications
10GBASE-ER/EW at 10.3125Gbps
OTN G.709 OTU1e/2/2e
4x, 8x and 10x 10G Fiber Channel
Other optical links
Details Photos
Hilink Advantage
1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
