Model Number:
HL-XFP-BXU/D-40

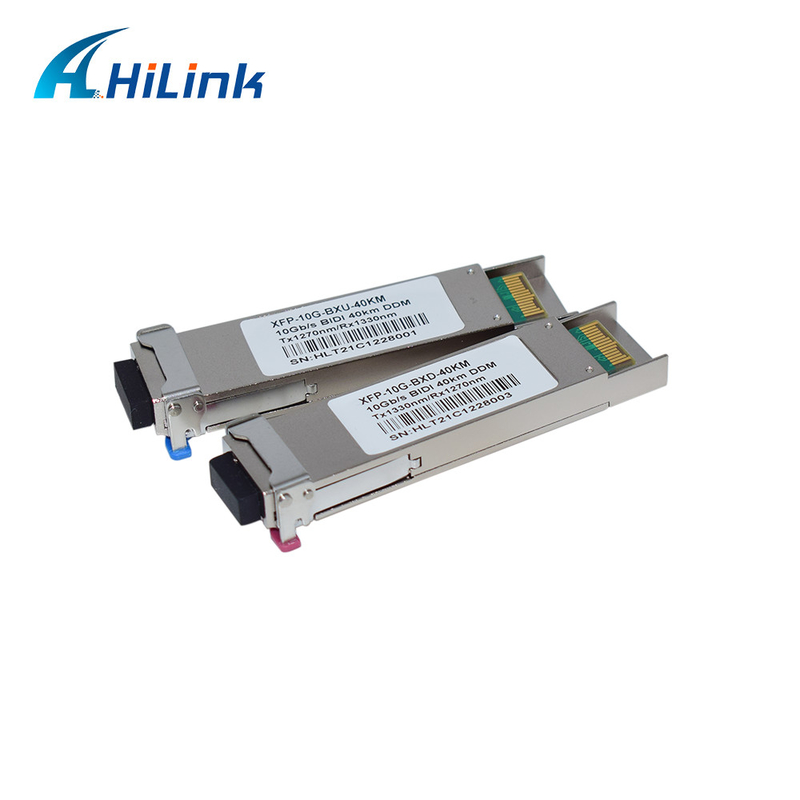

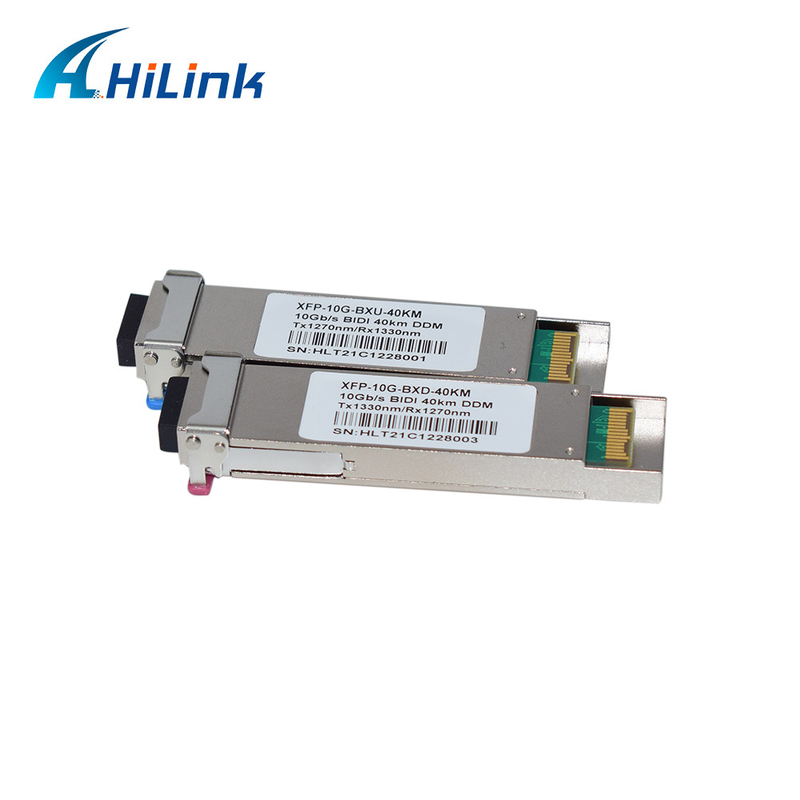

XFP 10G ER BIDI 1270nm 1330nm 40KM SMF XFP Optical Module DDM
Hilink’s HLXBxx1XL-CD40 transceivers are compliant with the IEEE803.3ae 10Gbase-Bx. and transmission distance up to 40km on SMF .
The transceiver module comprises a transmitter with a 1270 or 1330nm DFB laser transmitter, an integrated 1330 or 1270nm detector preamplifier(IDP) mounted in an optical header and a limiting post-amplifier IC. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ for commercial temperature, -40 to 85 °C for industrial temperature, and offers optimum heat dissipation and excellent electromagnetic shielding for 10 GbE systems application.
Features
Supports 9.95 to 11.3Gb/s bit rates
Simplex LC Connector
Hot-pluggable XFP footprint
Uncooled 1270nm DFB transmitter, 1330nm PIN photo-detector
Uncooled 1330nm DFB transmitter, 1270nm PIN photo-detector
Applicable for 40km SMF connection
Low power consumption, < 2.0 W
Digital Diagnostic Monitor Interface
XFP MSA package
Operating case temperature: Commerical:0 to 70 °C Industrial:-40 to 85 °C
Specifications
| Item No. | HL-XFP-BX-40 | Vendor Name | Hilink |
| Form Type | XFP | Max Data Rate | 11.3Gb/s |
| Wavelength | 1490/10nm | Max Cable Distance | 40KM |
| Interface | LC Simplex | Optical Components | DFB + PIN |
| Cable Type | SMF | DOM Support | Yes |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8517706000 |
| Parameter | Symbol | Unit | Min | Typ | Max | Note |
| Transmitter | ||||||
| Center Wavelength | λ | nm | 1260 | 1270 | 1280 | |
| λ | nm | 1320 | 1330 | 1340 | ||
| Average Output Power | Pave | dBm | 0 | 5 | 1 | |
| Extinction Ratio | ER | dB | 4 | 5 | ||
| Side Mode Suppression Ratio | SMSR | dB | 30 | |||
|
RMS spectral width |
Δλ |
nm | 0.45 | |||
|
Rise/Fall time (20%~80%) |
Tr/Tf |
ps | 45 | |||
|
Dispersion penalty |
TDP |
dB |
3.2 |
|||
| Relative Intensity Noise | RIN | dB/Hz | -130 | |||
| Receiver | ||||||
|
Center Wavelength |
λC | nm | 1320 | 1330 | 1340 | |
|
|
λC | nm | 1260 | 1270 | 1280 | |
| Receiver Sensitivity | PSEN2 | dBm | -15 | 2 | ||
| Average Receive Power | Pave | dBm | 0.5 | |||
| Receiver Reflectance |
Rrx |
dB | -12 | |||
| LOS Assert |
Pa |
dBm | -30 | |||
| LOS De-Assert |
Pd |
dBm | -16 | |||
| LOS Hysteresis | Pd-Pa | dB | 0.5 | |||
Notes:
1. Average power figures are informative only, per IEEE 802.3ae.
2. Measured with worst ER; BER<10-12; 231 – 1 PRBS.
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Applications
10GBASE-ER at 10.3125Gbps
10GBASE-EW at 9.953Gbps
Other optical link
Details Photos
Hilink Advantages
1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
