Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-BIDI
40Km 10Gb BIDI SFP
Tx: 1270nm/ Rx: 1330nm BIDI SFP+ Transceiver for 10GbE
Tx: 1330nm/ Rx: 1270nm BIDI SFP+ Transceiver for 10GbE
Features
Operating data rate up to10.3Gbps
1270nm DFB Transmitter/ 1330nm Receiver
Distance up to 40km
Single 3. 3V Power supply and TTL Logic Interface
Simplex LC Connector Interface
Operating Case Temperature
Standard: 0°C~+70°C
Industrial:-40°C~+85°C
DDM function
Applications
10GBASE-LR at 10.3125Gbps
10GBASE-LW at 9.953Gbps
Other Optical Links
PRODUCT DESCRIPTION
10G BIDI SFP+ 40KM is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly
for high-speed communication applications that require rates up to 10.7Gb/s,it designed to be compliant
with SFF-8472 SFP+ MSA. The module data link up to 40km in 9/125um single mode fiber. The optical
output can be disabled by a LVTTL logic high-level input of Tx Disable. Tx Fault is provided to indicate
that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input
optical signal of receiver or the link status with partner.
BiDi(WDM) SFP / XFP Transceivers
| 155M/622M BiDi SFP LC/SC | 155M BiDi SFP LC/SC 3km/20km/40km/80km/120km with DDM | |
| 4/2/1G BIDI SFP LC/SC | 4/2/1G BiDi SFP LC/SC 3km/20km/40km/80km/120km with DDM | |
| 10G SFP BiDi | SFP+ BiDi 1270 20km | SFP+ BiDi 20km Tx1270nm/Rx1330nm LC |
| SFP+ BiDi 1330 20km | SFP+ BiDi 20km Tx1330nm/Rx1270nm LC | |
| SFP+ BiDi 1270 40km | SFP+ BiDi 40km Tx1270nm/Rx1330nm LC | |
| SFP+ BiDi 1330 40km | SFP+ BiDi 20km Tx1330nm/Rx1270nm LC | |
| SFP+ BiDi 1270 60km | SFP+ BiDi 60km Tx1270nm/Rx1330nm LC | |
| SFP+ BiDi 1330 60km | SFP+ BiDi 60km Tx1330/Rx1270nm LC | |
| SFP+ BiDi 1490 80km | SFP+ BiDi 80km Tx1490/Rx1550nm LC | |
| SFP+ BiDi 1550 80km | SFP+ BiDi 80km Tx1550/Rx1490nm LC | |
| 10G XFP BiDi | XFP BiDi 1270 20km | XFP BiDi 20km Tx1270nm/Rx1330nm LC |
| XFP BiDi 1330 20km | XFP BiDi 20km Tx1330nm/Rx1270nm LC | |
| XFP BiDi 1270 40km | XFP BiDi 40km Tx1270nm/Rx1330nm LC | |
| XFP BiDi 1330 40km | XFP BiDi 40km Tx1330nm/Rx1270nm LC | |
| XFP BiDi 1270 60km | XFP BiDi 60km Tx1270nm/Rx1330nm LC | |
| XFP BiDi 1330 60km | XFP BiDi 60km Tx1330nm/Rx1270nm LC | |
| XFP BiDi 1490 80nm | XFP BiDi 80km Tx1490nm/Rx1550nm LC | |
| XFP BiDi 1550 80nm | XFP BiDi 80km Tx1550nm/Rx1490nm LC | |

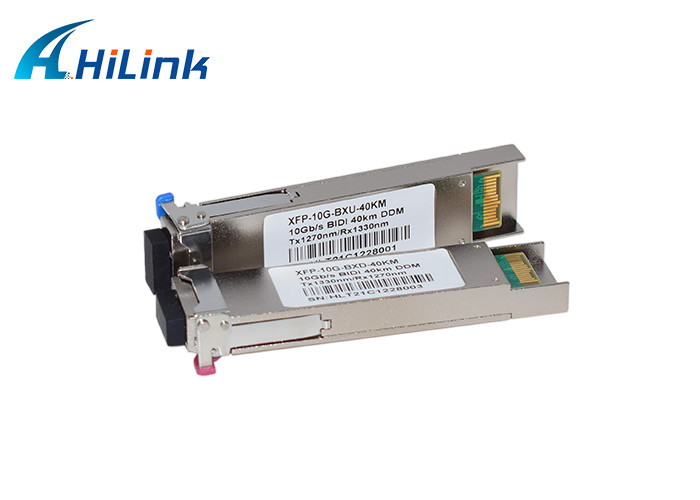

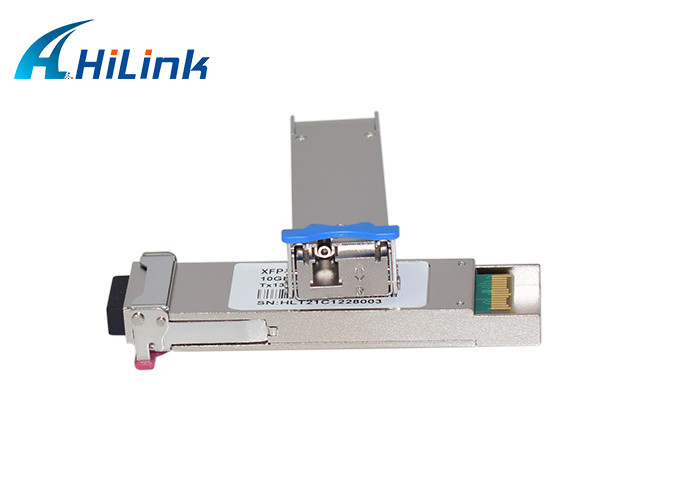

Product Picture Show
