Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-DW-SFP-XX

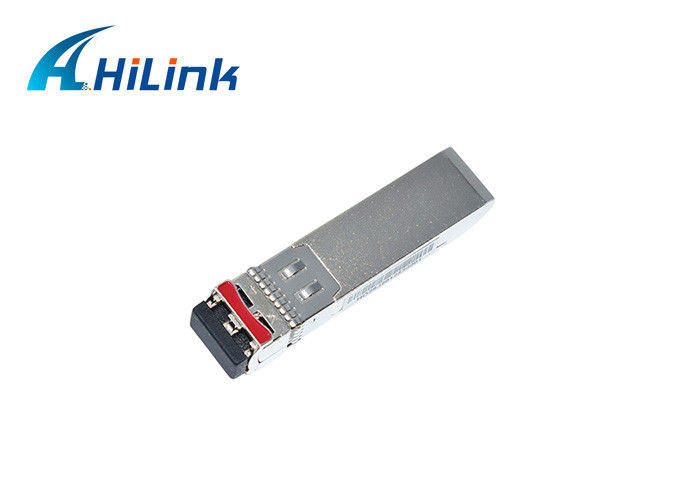

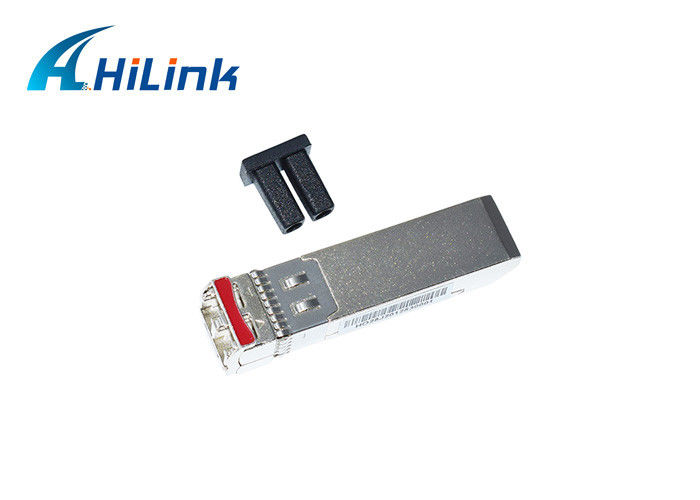

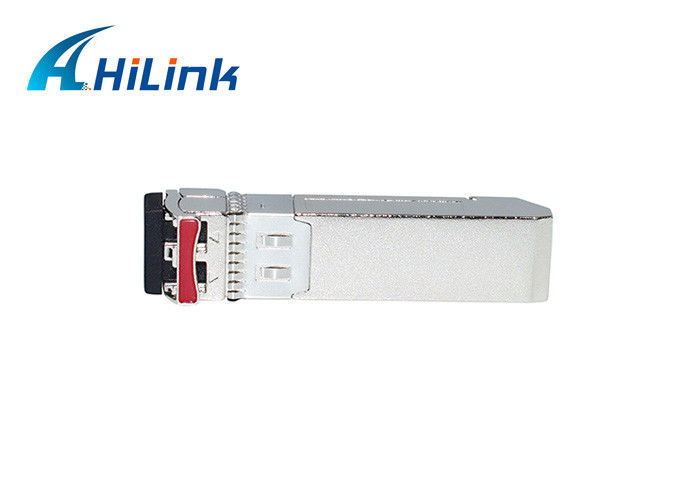

C-Band C22 DWDM 10G SFP+ 40km 10GBASE ER OEM For DWDM MUX/DEMUX
10Gbps DWDM SFP 0.8nm space
We can supply CWDM DWDM Network Solution
Features
10Gb/s serial optical interface compliant to 802.3ae 10GBASE-ER/ZW
Electrical interface compliant to SFF-8431 specifications for enhanced 8.5 and 10 Gigabit small form factor pluggable module “SFP+”
2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers
Operating case temperature: 0 to 70 °C
All-metal housing for superior EMI performance
Low power consumption, less than1.6 w
Advanced firmware allow customer system encryption information to be stored in transceiver
Cost effective SFP+ solution, enables higher port densities and greater bandwidth
RoHS compliant
Applications
Specifications:
| P/N | SFP-10G-DW-xx.xx-A |
| Datarate | 10.3G/ps |
| Distance | 40KM |
| Wavelength | DWDM 1563.86nm-1530.33nm |
| Transmitter | EML |
| Receiver | PIN |
| Media | SMF |
| DDM/DOM | YES |
| Connector | LC |
| Application | 10 Gigabit Ethernet |
| Operating Temperature | 0℃~ +70℃ |
| Voltage Supply | 3.3V |
| Certification | CE/FCC/RoHS/TUV/ |
| Brand | Neuter, OEM, Hilink |
DWDM series 155m~10GB optical transceiver
| SFP-10G-SR | SFP-10G-SR-A | 10GBASE-SR SFP+ transceiver module for MMF, 300M |
| SFP-10G-SRL | SFP-10G-SRL-A | 10GBASE-SR SFP+ transceiver module for MMF, 300M |
| SFP-10G-LR | SFP-10G-LR-A | 10GBASE-LR SFP+ transceiver module for SMF,10km |
| SFP-10G-LRM | SFP-10G-LRM-A | 10GBASE-LRM SFP+ transceiver module for MMF 220M |
| SFP-10G-ER | SFP-10G-ER-A | 10GBASE-ER SFP+ transceiver module for SMF, 40km |
| SFP-10G-DW-xx.xx | SFP-10G-DW-xx.xx-A | 10G DWDM SFP+ xxxx.xxnm C17 to C59 |
Competitive advantage:
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
OEM and ODM
OEM/ODM order is available.
We can supply products according to your requirements, and design products label for your company.
Shipment
International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.
Guarantee
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
What we supply
We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with Cisco, 3COM, H3C, HP, Extreme, Broacom, Avaya, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, Huawei,etc.
Product picture show
