Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-DWDM-1GSFPXX

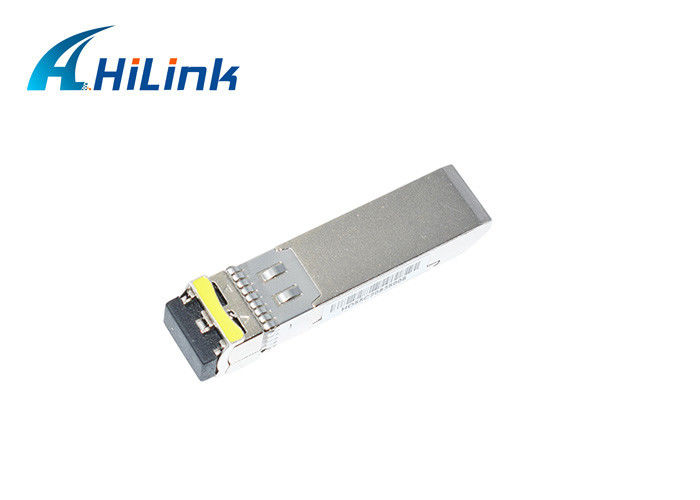

Hilink Dense WDM SFP 1.25G Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and SFF-8472. The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the DFB laser and the APD.The module data link up to 120KM in 9/125um single mode fiber. It offers a simple and convenient way to interface PCBs to single mode fiber optic cables in Dense Wavelength Division Multiplexing (DWDM) ITU C band applications. It is a high performance, cost effective module for serial optical data communication applications.
1 Features
1) All 100 GHz C-Band Wavelengths on the DWDM ITU Grid
2) SFF-8472 MSA Compliant
3) Cold Start up Wavelength Compliance
4) Low Power Dissipation <1.3W Maximum
5) -5ºC to 70ºC Operating Case Temperature
8) Diagnostic Performance Monitoring of Transmit Power,
9) Laser Bias, Receive Power, LD&Module Temperature,
10) APD Bias Voltage, TEC Current
11) Extended link budget with APD receiver technology
12) OC48/STM-16 Long Reach 80km, 120km and 200km Versions
13) RoHS compliant and lead free
2 Application
1) Metropolitan and access systems
2) IP routers and ATM core switches
3) DWDM for Metro Area Networks
| Type | Part Number | Data Rate | Wavelenth(nm) | Distance |
| DWDM SFP | DWDM-OC24-80X | 1.25G | C/L-Band ITU | 80km |
| DWDM-OC24-120X | 1.25G | C/L-Band ITU | 120km | |
| DWDM-OC48-80X | 2.5G | C/L-Band ITU | 80km | |
| DWDM-OC48-120X | 2.5G | C/L-Band ITU | 120km |
