Place of Origin:
China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-CW-XFP-XX

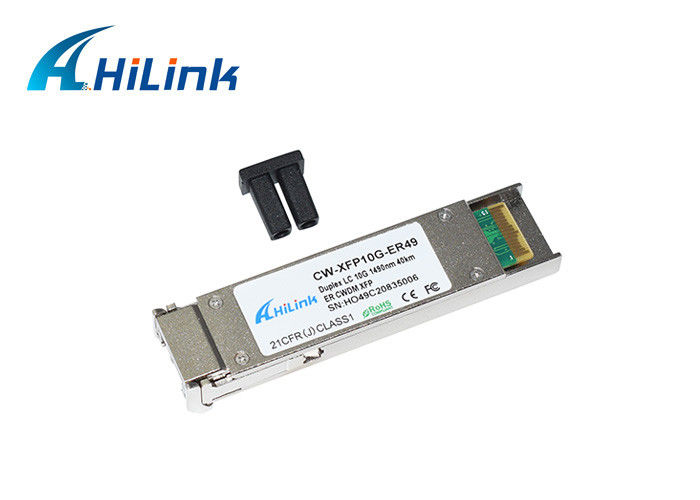

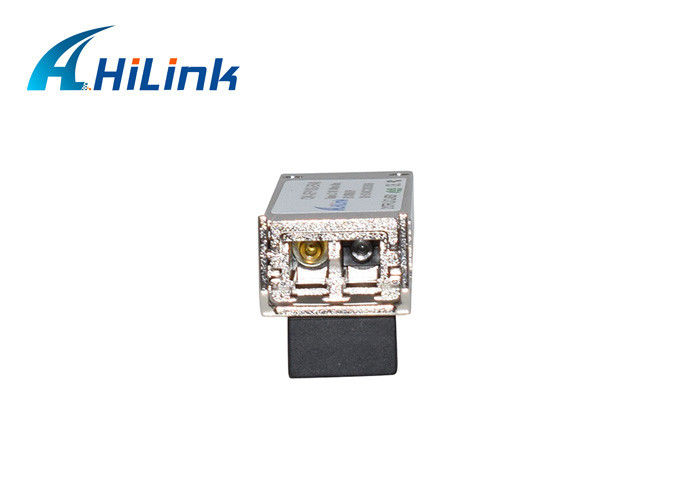

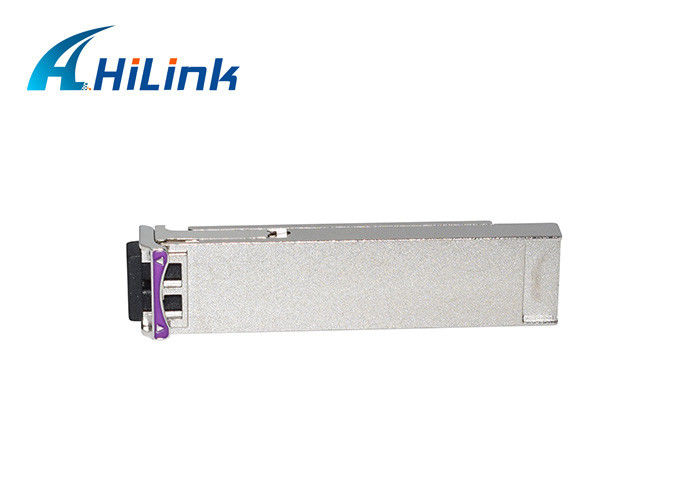

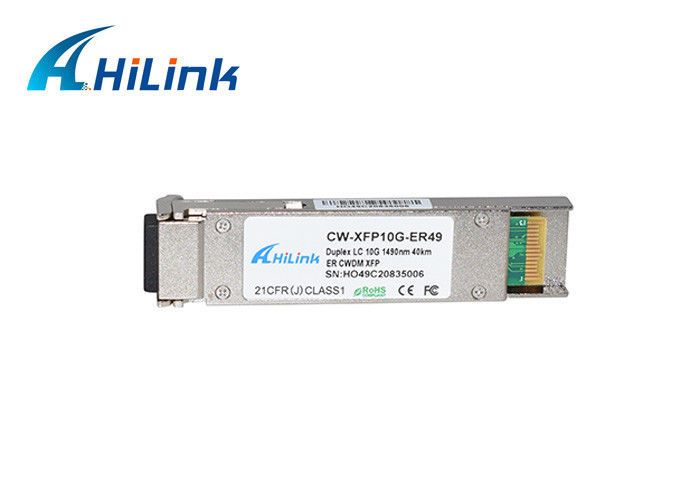

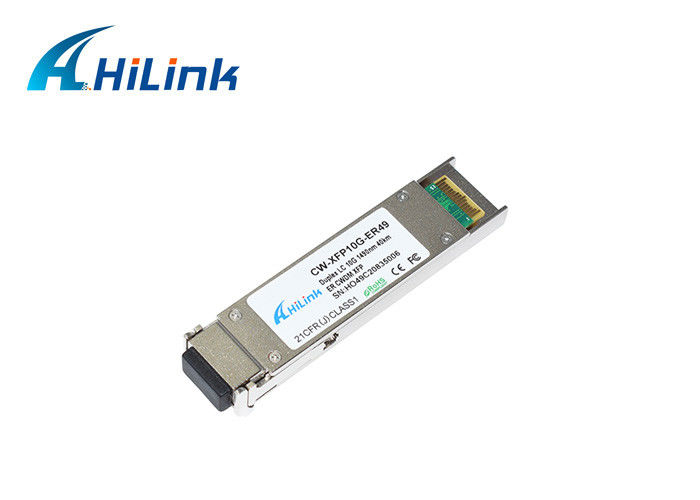

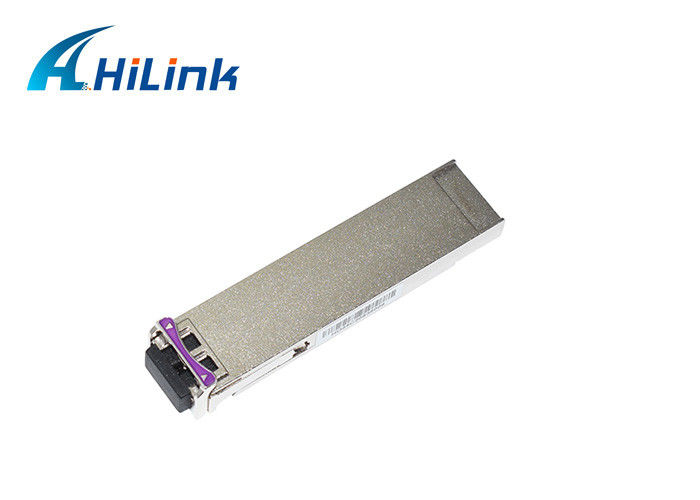

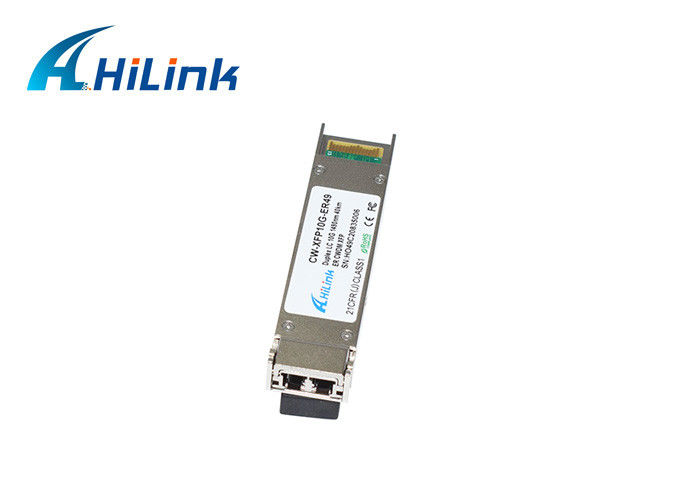

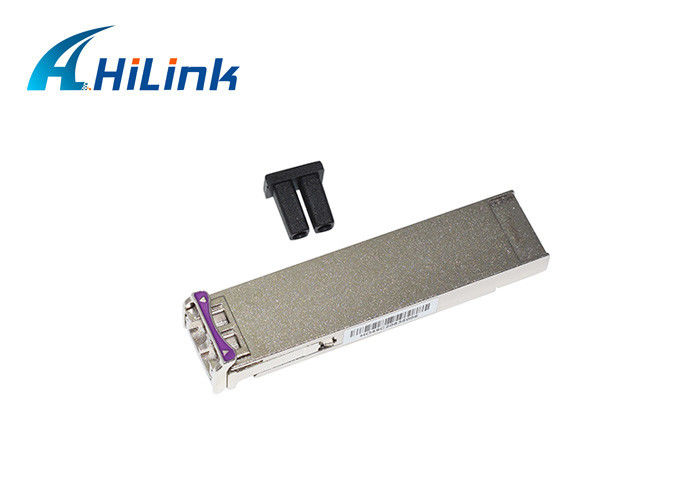

Hilink XFP CWDM 1490nm 40KM 10G Dual LC Fiber Channel Transceiver For Wdm Solution
We can provide you with good cwdm dwdm solutions
Hilink 10G 40km CWDM XFP Transceiver exhibits excellent wavelength stability, cost effective module.It is designed for 10G CWDM SDH, 10GBASE-ER and 10G Fiber-Channel applications.
The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a APD integrated with a TIA. All modules satisfy class I laser safety requirements. It's widely used with CWDM Mux Demux together.
Features:
1470nm-1610nm CWDM grid wavelengths
XFP MSA Rev 4.5 Compliant
Data rate from 9.95Gbps to 11.3Gbps
No Reference Clock required
Cooled EML and APD receiver
link length up to 80km
Low Power Dissipation 3.5W Maximum
XFI and lineside loopback Mode Supported
0 to 70 Temp Operating Case Temperature
Diagnostic Performance Monitoring
RoHS6 compliant (lead free)
Applications:
SONET OC-192&SDH STM 64
10GBASE ZR/ZW
10G Fiber Channel
CWDM Networks
10G CWDM Transceivers
| CWDM XFP(10G) | |||||
| CWDM XFP LR | 10G | (1270-1330nm) | 10KM | CWDM XFP | 0~70°c |
| CWDM XFP ER | 10G | (1470-1610nm) | 40KM | CWDM XFP | 0~70°c |
| CWDM XFP ZR | 10G | (1470-1610nm) | 80KM | CWDM XFP | 0~70°c |
| CWDM SFP+(10G) | |||||
| CWDM SFP+(10G) LR | 10G | (1270-1330nm) | 10KM | CWDM SFP+ | 0~70°c |
| CWDM SFP+ ER | 10G | (1470-1610nm) | 40KM | CWDM SFP+ | 0~70°c |
| CWDM SFP+ ZR | 10G | (1470-1610nm) | 80KM | CWDM SFP+ | 0~70°c |
| CWDM XENPAK(10G) | |||||
| CWDM XENPAK ER | 10G | 1470~1610 | 40KM | XENPAK | 0~70°c |
| CWDM XENPAK ZR | 10G | 1470~1610 | 80KM | XENPAK | 0~70°c |
| CWDM X2 (10G) | |||||
| CWDM X2 -ERC | 10G | 1470~1610 | 40KM | X2 | 0~70°c |
| CWDM X2-ZRC | 10G | 1470~1610 | 80KM | X2 | 0~70°c |
