Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-BIDI

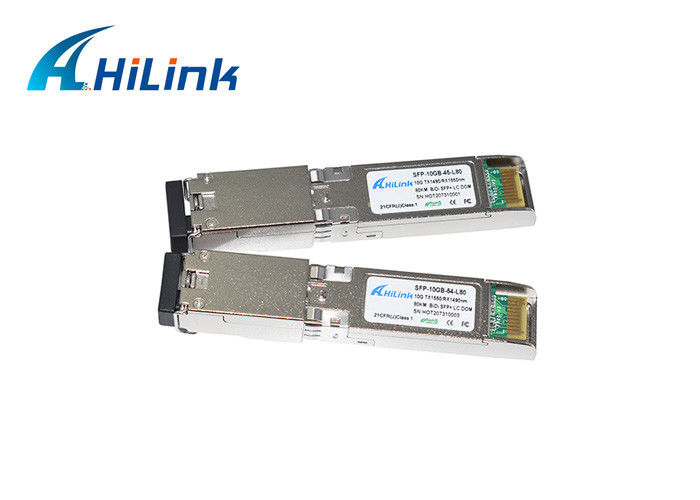

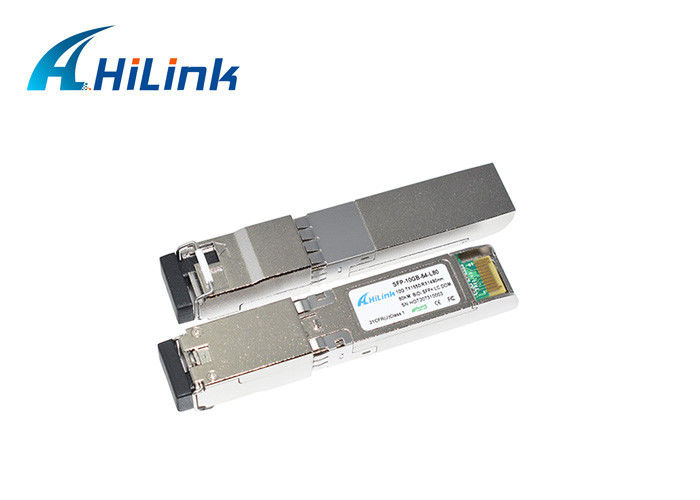

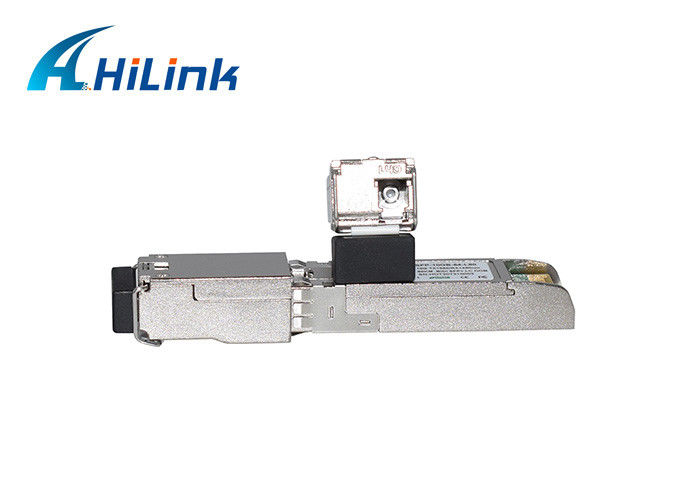

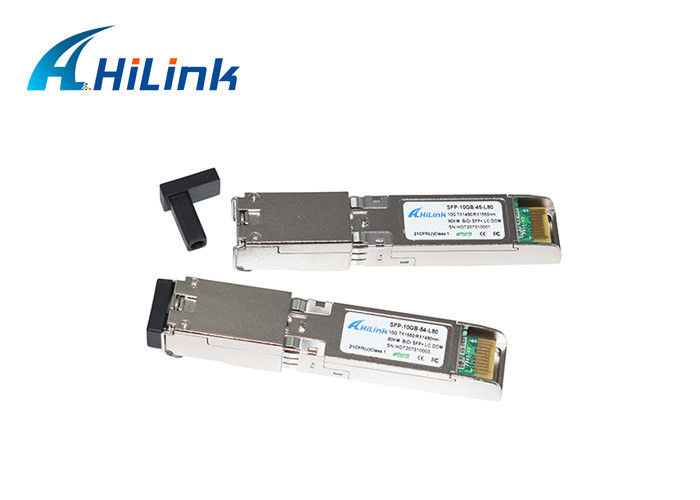

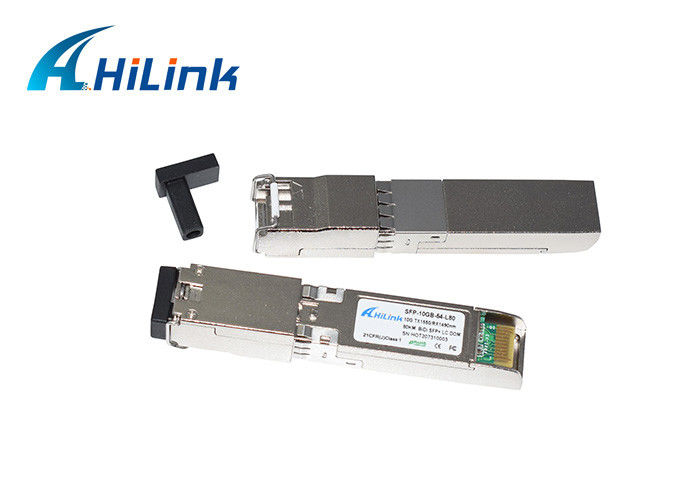

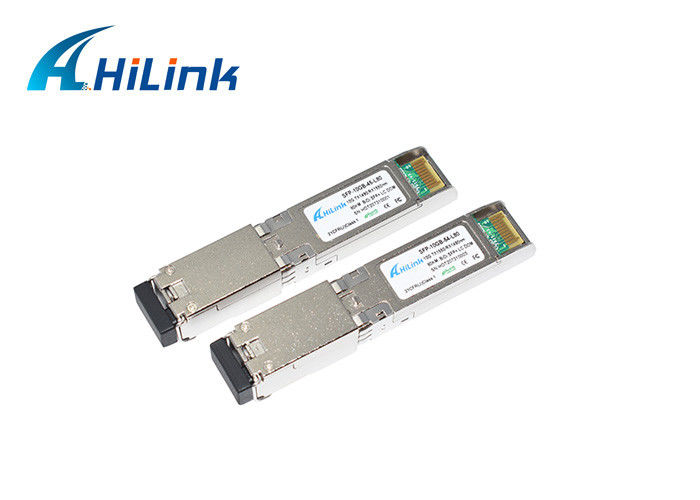

Hilink SFP-10G-BX80U Compatible 80Km 10G WDM SFP ZR 1490/1550 BIDI SFP+ 80Km
80Km 10G WDM SFP
Features
l SFP MSA package with single LC connector
l Typical bidi 1490/1550nm and 1550nm/1490nm for commission
l APD receiver for high sensitivity
l Very low EMI and excellent ESD protection
l Digital Diagnostic Monitor Interface
l Hot pluggable
l Support 9.95Gb/s to 11.1Gb/s serial optical interface
l Up to 80km distance
l Compliant with SFP+ MSA
l High transmission margin
l +3.3V single power supply
l Below <1.5W power consumption
Applications
10GBASE-LR at 10.3125Gbps
10GBASE-LW at 9.953Gbps
Other Optical Links
Also for 1.25Gbps
| HAILI BIDI SFP (155M/1.25G LC Interface) With or without DDMI | |||||||
| BIDI SFP 155MB LC/SC available | BSFP-L155M-SU | 155M | 1310/1550 | 3km | BIDI SFP | 0~70 | FP+PIN |
| BSFP-L155M-SD | 155M | 1550/1310 | 3km | BIDI SFP | 0~70 | FP+PIN | |
| BSFP-L155M-LU | 155M | 1310/1490 | 20km | BIDI SFP | 0~70 | FP+PIN | |
| BSFP-L155M-LD | 155M | 1490/1310 | 20km | BIDI SFP | 0~70 | DFB+PIN | |
| BSFP-L155M-E1U | 155M | 1310/1550 | 40KM | BIDI SFP | 0~70 | FP+PIN | |
| BSFP-L155M-E1D | 155M | 1550/1310 | 40KM | BIDI SFP | 0~70 | FP+PIN | |
| BSFP-L155M-E2U | 155M | 1310/1490 | 40KM | BIDI SFP | 0~70 | FP+PIN | |
| BSFP-L155M-E2D | 155M | 1490/1310 | 40KM | BIDI SFP | 0~70 | DFB+PIN | |
| BSFP-U80 | 155M | 1310/1550 | 80KM | BIDI SFP | DFB+PIN | ||
| BSFP-D80 | 155M | 1550/1310 | 80km | BIDI SFP | DFB+PIN | ||
| BIDI SFP 1.25GB LC/SC available | BSFP-L1.25G-SU | 1.25G | 1310/1550 | 2KM | BIDI SFP | 0~70 | FP+PIN |
| BSFP-L1.25G-SD | 1.25G | 1550/1310 | 2KM | BIDI SFP | 0~70 | FP+PIN | |
| BSFP-L1.25G-LU | 1.25G | 1310/1550 | 20KM | BIDI SFP | 0~70 | FP+PIN | |
| BSFP-L1.25G-LD | 1.25G | 1550/1310 | 20KM | BIDI SFP | 0~70 | DFB+PIN | |
| BSFP-L1.25G-EU | 1.25G | 1310/1550 | 40KM | BIDI SFP | 0~70 | DFB+PIN | |
| BSFP-L1.25G-ED | 1.25G | 1550/1310 | 40KM | BIDI SFP | 0~70 | DFB+PIN | |
| BSFP-U80 | 1.25G | 1310/1550 | 80KM | DFB+PIN | |||
| BSFP-D80 | 1.25G | 15501310 | 80km | DFB+PIN |
|||
