Place of Origin:
China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-XFP-CW

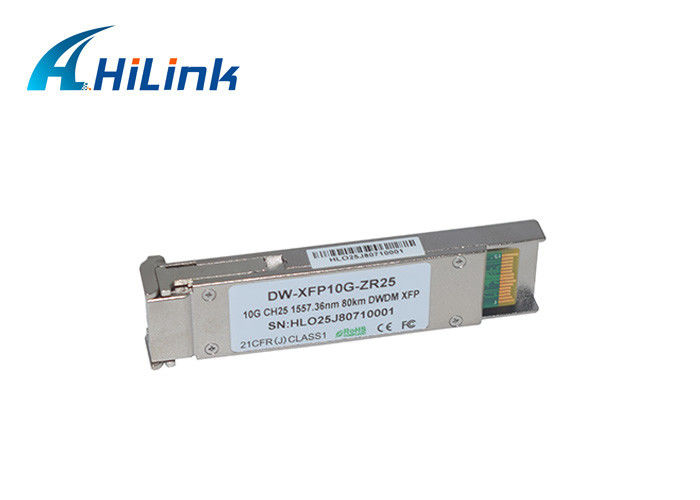

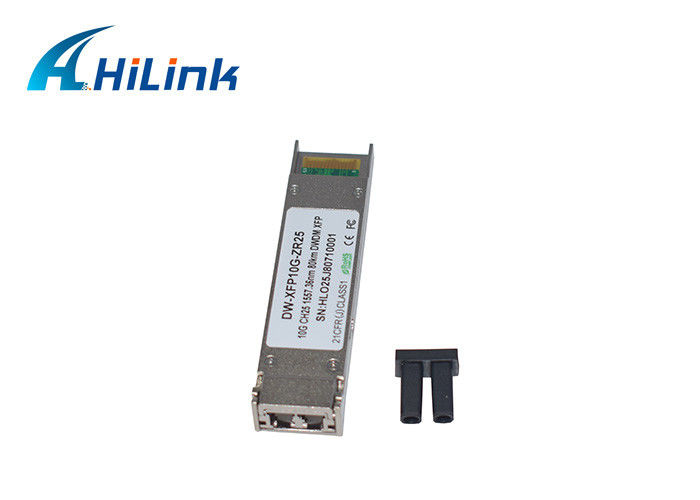

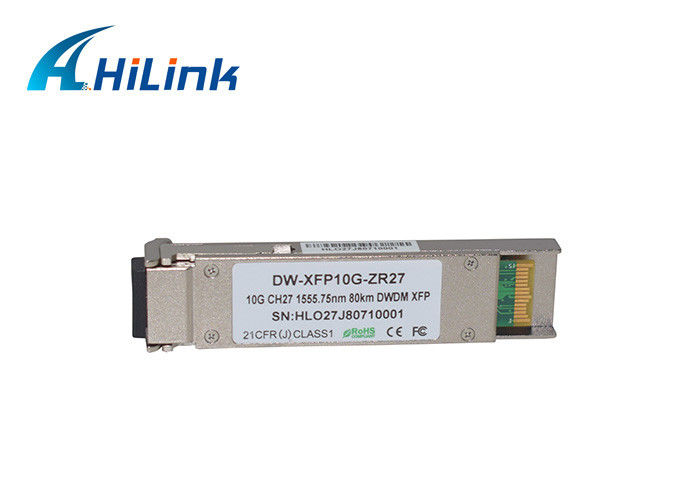

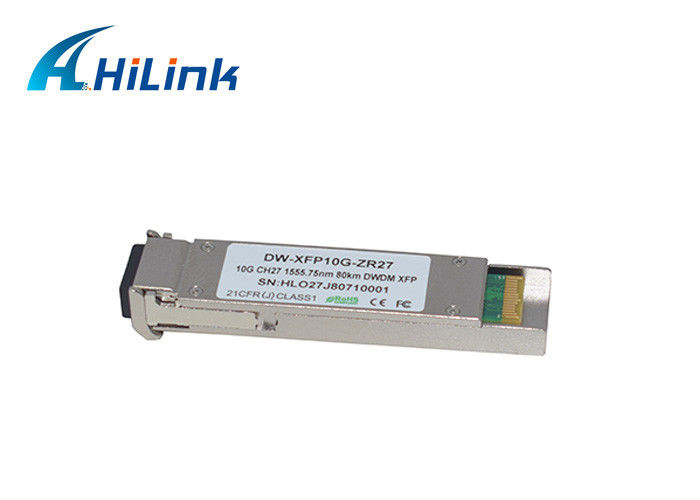

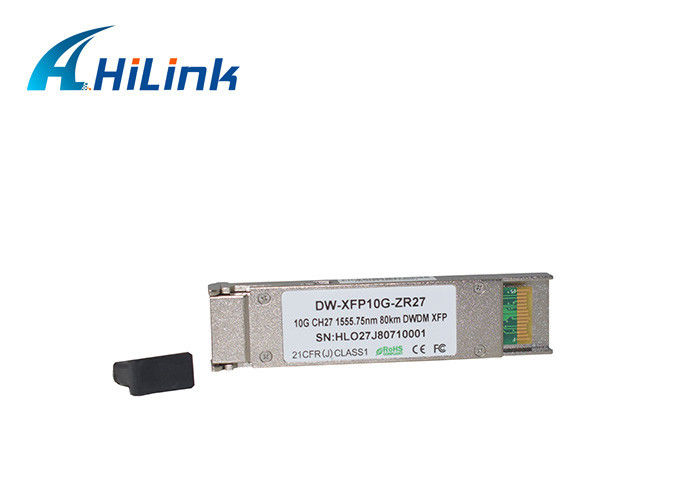

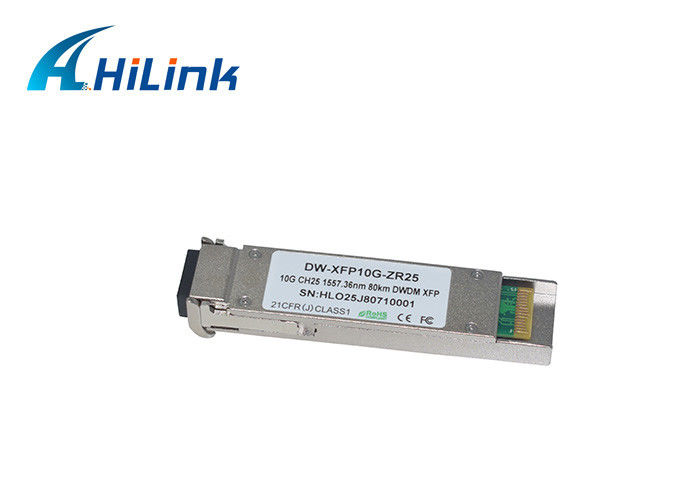

DWDM Network Solution C17-C61 10G DW XFP 80km 100GHz Dual fiber DOM Transceiver Module
DWDM XFP
Features
Compliant with SFF-8413 and IEE802.3ae
Suitable for use in 100GHz channel spacing DWDM systems
Data rate selectable ≤4.25Gbps or 9.95Gbps to 10.3Gbps bit rates
PIN or APD receiver DWDM
link length up to 80km
Low Power Dissipation 1.5W Maximum
-5ºC to 70ºC Operating Case Temperature
Single 3.3V power supply
Diagnostic Performance Monitoring of module temperature, supply Voltages, laser bias current, transmit optical power, receive optical power
RoHS compliant and lead free
Applications
SONET OC-192 IR-1
Switch to Switch channel interface
Switched back plane applications
Router/Server interface
Other optical transmission systems
OEM and ODM
OEM/ODM order is available
10G DWDM Transceivers
| DWDM XFP(10G) | |||||
| DWDM XFP ER | 10G | 15XX.XXnm | 40KM | DWDM XFP | 0~70°c |
| DWDM XFP ZR | 10G | 15XX.XXnm | 80KM | DWDM XFP | 0~70°c |
| DWDM SFP+(10G) | |||||
| DWDM SFP ER | 10G | 15XX.XXnm | 40KM | DWDM SFP+ | 0~70°c |
| DWDM SFP ZR | 10G | 15XX.XXnm | 80KM | DWDM SFP+ | 0~70°c |
| DWDM XENPAK(10G) | |||||
| DWDM XENPAK ER | 10G | 15XX.XXnm | 40KM | DWDM XENPAK | 0~70°c |
| DWDM XENPAK ZR | 10G | 15XX.XXnm | 80KM | DWDM XENPAK | 0~70°c |
| DWDM X2 (10G) | |||||
| DWDM X2 -ERC | 10G | 15XX.XXnm | 40KM | DWDM X2 | 0~70°c |
| DWDM X2-ZRC | 10G | 15XX.XXnm | 80KM | DWDM X2 | 0~70°c |
Hilink Competitive advantages:
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/Ciena/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stocks,Fast delivery
