Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-CW-SFPxx

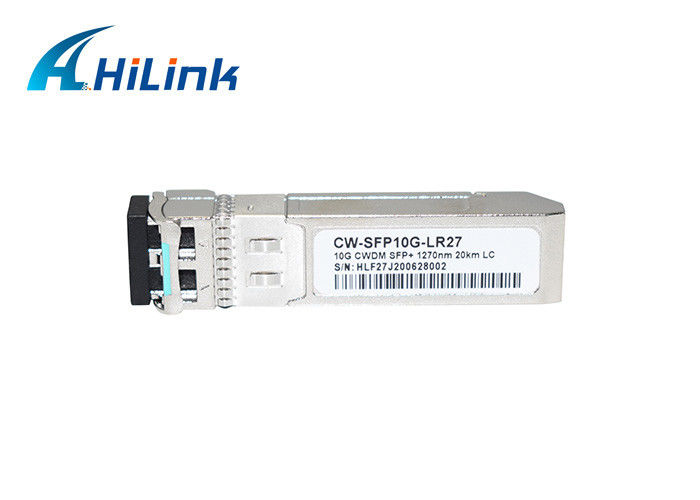

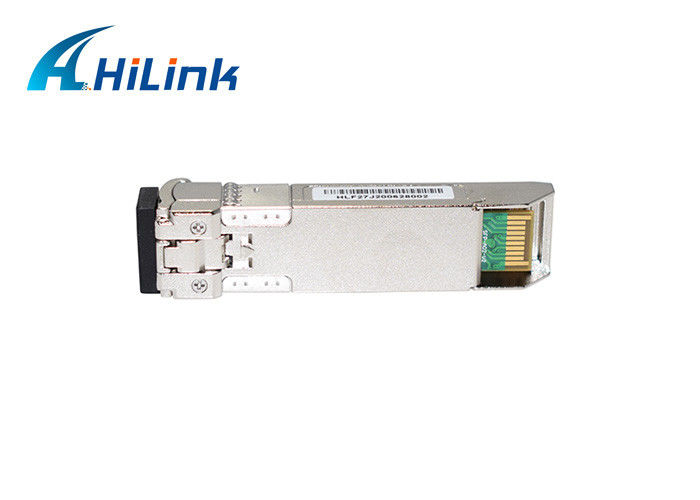

10G 1270nm 20km LR CWDM Duplex LC connector Transceiver Sfp Module Mini-
GBIC
Product Features
Supports 9.95 to 10.5Gb/s bit rates

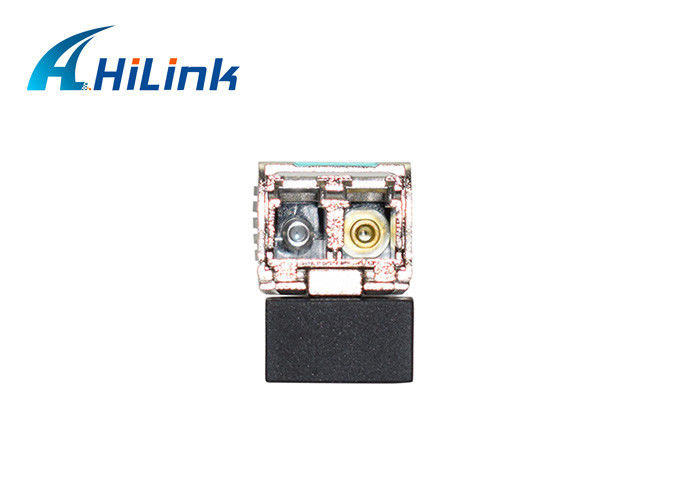

Duplex LC connector
Hot pluggable SFP+ footprint
Uncooled 1270nm~1610nm DFB transmitter, PIN photo-detector
Applicable for 20km SMF connection
Low power consumption, < 1W
Digital Diagnostic Monitor Interface
Optical interface compliant to IEEE 802.3ae 10GBASE-LR
Electrical interface compliant to SFF-8431
Operating case temperature:
Commerical:0 to 70 °C
Industrial:-40 to 80 °C
Applications
10GBASE-LR/LW at 10.3125Gbps
10G Ethernet
Other optical links
Product Descriptions
HLSCXX1XL-CD20 CWDM DFB 10Gbps SFP+ transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 20km.
This transceiver consists of two sections: The transmitter section incorporates a CWDM DFB laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
