Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-CW-SFP+49X

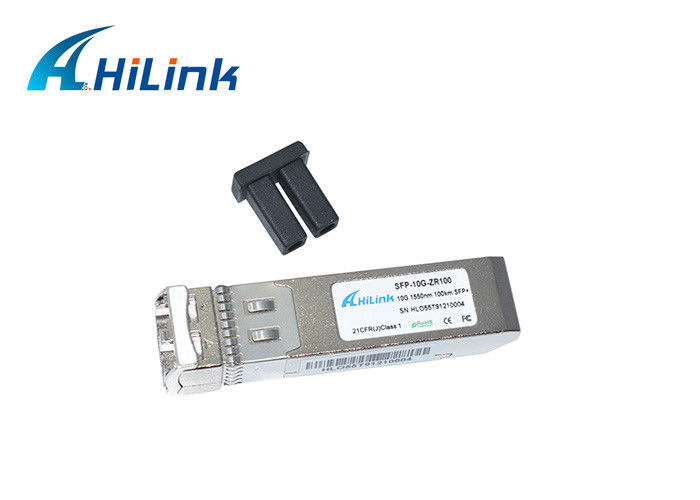

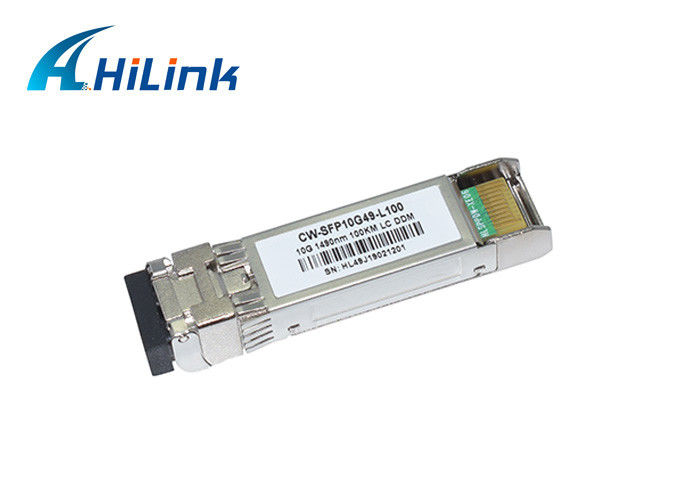

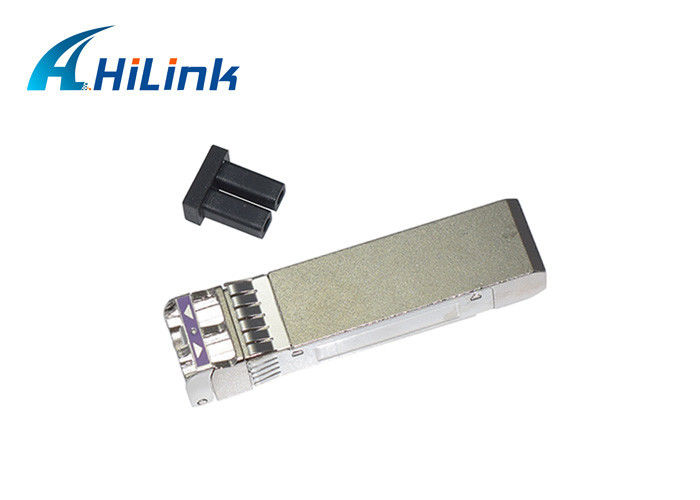

Hilinksys CWDM SFP 10G 100Km SFP+ Transceiver Module 5G High Speed 1490nm
We can provide you with good cwdm dwdm solutions
Description:
10GBASE-CWDM 1470nm 1490nm 1510nm 1530nm 1550nm 1570nm 1590nm 1610nm SFP+
The hilinktech 10GBASE SFP+ modules offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.It is a mallest 10G form factor
Supports 10GBASE Ethernet and OTU2/OTU2e
Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a switch. Provides flexibility of interface choice .Supports "pay-as-you-populate" model. Supports digital optical monitoring capability
Features
♦ Compliant with SFF-8431,SFF-8432 and IEE802.3ae
♦ 10GBASE-ZR, and 2G/4G/ 8G/10G Fiber Channel applications.
♦ Wavelength selectable to ITU-T standards covering CWDM grid wavelengths
♦ Cooled EML transmitter and APD receiver
♦ Link length up to 100km
♦ Low Power Dissipation 1W Typical (Maximum:2W)
♦ -20ºC to 70ºC Operating Case Temperature
♦ Single 3.3V power supply
♦ Diagnostic Performance Monitoring of module temperature, supply
Voltages, laser bias current, transmit optical power, receive optical power
♦ RoHS compliant and lead free
Applications
♦ 10G Ethernet
♦ 10G Fiber Channel (with/without FEC)
♦ CWDM PON networks
♦ SONET OC-192/SDH STM-64
Specifications:
| P/N | CWDM-SFP10G-xxxx- |
| Datarate | 10G/ps |
| Wavelenth | 1490nm |
| Distance | 100km |
| Transmitter | DFB |
| Receiver | APD |
| Media | SMF |
| DDM/DOM | YES |
| Connector | LC |
| Application | Datacom 10G Ethernet/ 2x 4x 8x FC |
| Operating Temperature | -5℃~ +70℃ |
| Voltage Supply | 3.3V |
| Certification | CE/FCC/RoHS/TUV/UL |
| Brand |
Hilinksys/Neuter, OEM |
