Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-CW-SFPxx

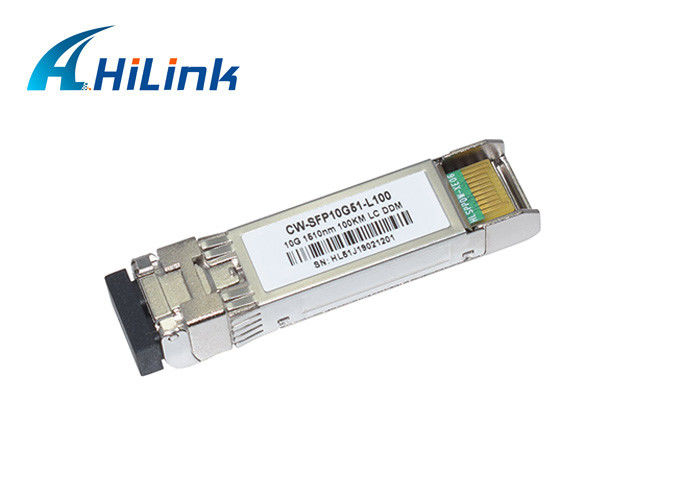

HILINK OEM Compatible CWDM 1510nm 80Km 10G SFP+ LC Single fiber Transceiver Module
CWDM SFP 10G 80Km
Features
♦ Compliant with SFF-8431,SFF-8432 and IEE802.3ae
♦ 10GBASE-ZR, and 2G/4G/ 8G/10G Fiber Channel applications.
♦ Wavelength selectable to ITU-T standards covering CWDM grid wavelengths
♦ Cooled EML transmitter and APD receiver
♦ Link length up to 100km (with amplifier)
♦ Low Power Dissipation 1W Typical (Maximum:2W)
♦ -5ºC to 70ºC Operating Case Temperature
♦ Single 3.3V power supply
♦ Diagnostic Performance Monitoring of module temperature, supply
Voltages, laser bias current, transmit optical power, receive optical power
♦ RoHS compliant and lead free
Applications
♦ 10G Ethernet
♦ 10G Fiber Channel (with/without FEC)
♦ CWDM PON networks
♦ SONET OC-192/SDH STM-64
10G CWDM Transceivers
| CWDM XFP(10G) | |||||
| CWDM XFP LR | 10G | (1270-1330nm) | 10KM | CWDM XFP | 0~70°c |
| CWDM XFP ER | 10G | (1470-1610nm) | 40KM | CWDM XFP | 0~70°c |
| CWDM XFP ZR | 10G | (1470-1610nm) | 80KM | CWDM XFP | 0~70°c |
| CWDM SFP+(10G) | |||||
| CWDM SFP+(10G) LR | 10G | (1270-1330nm) | 10KM | CWDM SFP+ | 0~70°c |
| CWDM SFP+ ER | 10G | (1470-1610nm) | 40KM | CWDM SFP+ | 0~70°c |
| CWDM SFP+ ZR | 10G | (1470-1610nm) | 80KM | CWDM SFP+ | 0~70°c |
| CWDM XENPAK(10G) | |||||
| CWDM XENPAK ER | 10G | 1470~1610 | 40KM | XENPAK | 0~70°c |
| CWDM XENPAK ZR | 10G | 1470~1610 | 80KM | XENPAK | 0~70°c |
| CWDM X2 (10G) | |||||
| CWDM X2 -ERC | 10G | 1470~1610 | 40KM | X2 | 0~70°c |
| CWDM X2-ZRC | 10G | 1470~1610 | 80KM | X2 | 0~70°c |
