Place of Origin:
China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HLHDEx

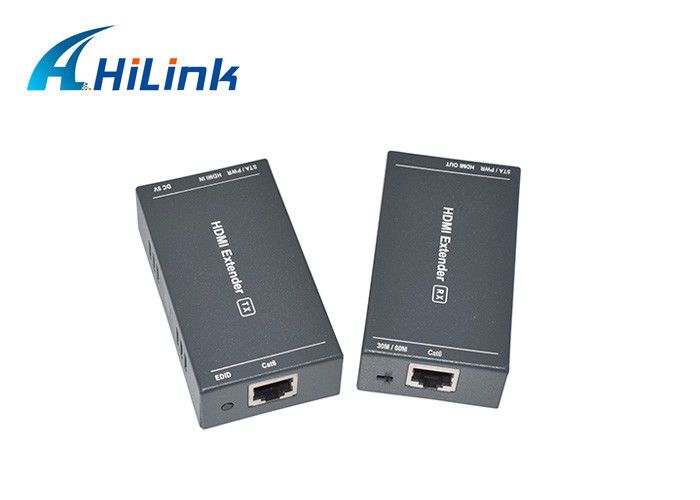

HDMI UTP Extender video 1920*1080 3D signal RJ45 single CAT6 cable
Description
The HDMI extender provides extension of HDMI signals long distances over a single CAT6 cable, it supports high resolution up to 1080p, EDID copy function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features
Transmits HDMI video and audio signals up to 60m over a single CAT6 cable;
Support video resolution up to 1920*1080@60Hz, 3D signal;
Support copy EDID, can match many kinds of display device;
Compliance with HDMI 1.3 and HDCP 1.2 standard;
Support POC unilateral power supply
High compatibility, can auto-match source and display device
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;
Simple to install, plug and play;
Specifications
| Parameter | Description | |
|
Video
|
Standards | HDMI 1.3; HDCP 1.2 |
| Maximum pixel clock | 165MHz | |
| Maximum data rate | 6.75Gbps | |
| Resolution | 1920X1080@60Hz, 3D | |
| Connector | HDMI-A | |
| Impedance | 100Ω | |
| Ethernet | Interface | RJ45 |
| Transmission distance | CAT6---60m | |
| Other | Power supply | The power adapter: DC 5V |
| Power dissipation | MAX 3W | |
| Temperature | Operating: -5℃ ~ +70℃ | |
| Humidity | Operating: 5% ~ 90% | |
| Dimension | 81*43*23mm | |
| The warranty | 1 year free warranty | |
Transmitter:
