Place of Origin:
China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-XFP-WDM

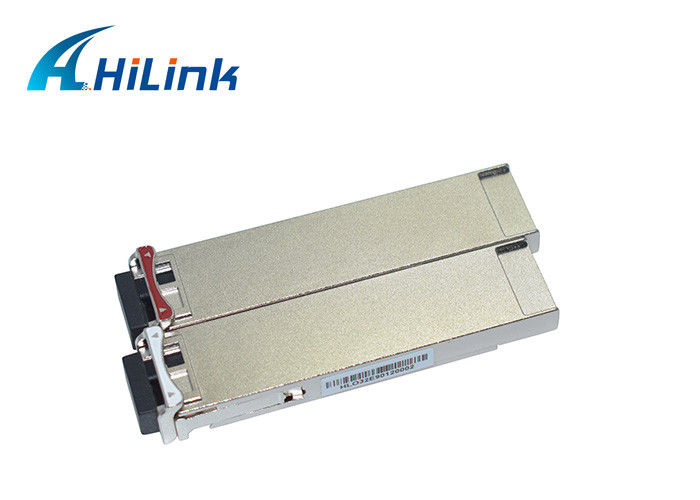

WDM 1330/1270nm BIDI XFP Single Fiber Transceiver 10G Module 20KM
PRODUCT FEATURES
| Compatible Brand | Cisco Juniper Mikrotik .. | Vendor Name | Hilink |
| Form Type | XFP | Max Data Rate | 10Gbps |
| Wavelength | 1270nm/1330nm | Max Cable Distance | 20km |
| Interface | LC simplex | Optical Components | DFB BiDi |
| Cable Type | SMF | DOM Support | Yes |
| TX Power | -7~0.5dBm | Receiver Sensitivity | < -13dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8517706000 |
APPLICATIONS
10GBASE-BX 10.3125Gb/s Ethernet
10GBASE-BX 9.953Gb/s Ethernet
SONETOC-192&SDHSTMI-64.
PRODUCT DESCRIPTION
XFP BIDI 20KM is hot pluggable 3.3V XFP Form transceiver module.
It designed expressly for high-speed communication applications that require rates upto 11.3Gb/s,
it designed to be compliant with XFP MSA Agreement.
WDM XFP 20km Optical Parameter
| Parameter | Symbol | Min | Typ | Max | Unit | |
| Maximum Launch Power | PMAX | -6 | -3 | +0.5 | dBm | |
| Optical Center Wavelength | UBXFP-20-U | λ | 1260 | 1270 | 1280 | nm |
| UBXFP-20-D | 1320 | 1330 | 1340 | |||
| Optical Extinction Ratio | ER | 3.5 | dB | |||
| Spectral Width | Δλ | 1 | nm | |||
| Sidemode Supression ratio | SSRmin | 30 | dB | |||
| Rise/Fall Time (20%~80%) | Tr/Tf | 50 | ps | |||
| Optical Eye Mask | IEEE802.3ae | |||||
| Operating Date Rate | BR | 9.95 | 11.3 | Gb/s | ||
| Receiver Sensitivity | Sen | -13.4 | dBm | |||
| Maximum Input Power | PMAX | 0 | dBm | |||
| Optical Center Wavelength | UBXFP-20-U | λC | 1320 | 1330 | 1340 | nm |
| UBXFP-20-D | 1260 | 1270 | 1280 | |||
| Receiver Reflectance | Rrx | -13 | dB | |||
| LOS De-Assert | LOSD | -14 | dBm | |||
| LOS Assert | LOSA | -30 | dBm | |||
| LOS Hysteresis | LOSH | 0.5 | 5 |
dB |
||
Hilink Advantage
1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2. " Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
