1000BASE 20KM SFP Transceiver Module 1.25G LC 20KM 1310nm DOM SMF SFP

General:

     1.25g SFP-LX are high performance, cost effective modules supporting data-rate of 1.25Gbps/1.0625Gbps and 10km transmission distance with SMF.

      1.25g SFP-LX consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.

Features:

Up to 1.25Gb/s dual data links
Hot-pluggable SFP footprint
1310nm FP laser transmitter
Duplex LC connector
Up to 20km on 9/125µm SMF
Metal enclosure for lower EMI
Single +3.3V power supply
Low power dissipation <700mW
Commercial operating temperature range: 0°C to +70°C
Extensive temperature range: -20~80°C
Industrial Temperature range: -40~85°C

Applications:

1.25Gb/s 1000Base-LX Ethernet
1.06 Gb/s Fibre Channel

1000Base Transceiver Series:

Guarantee:
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.

What we supply:

We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules.

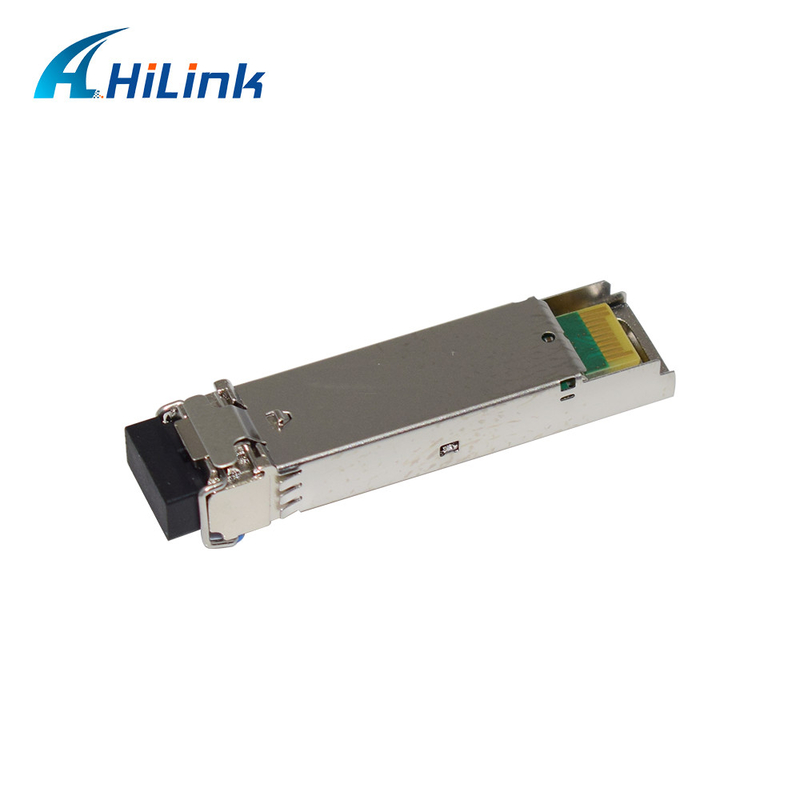

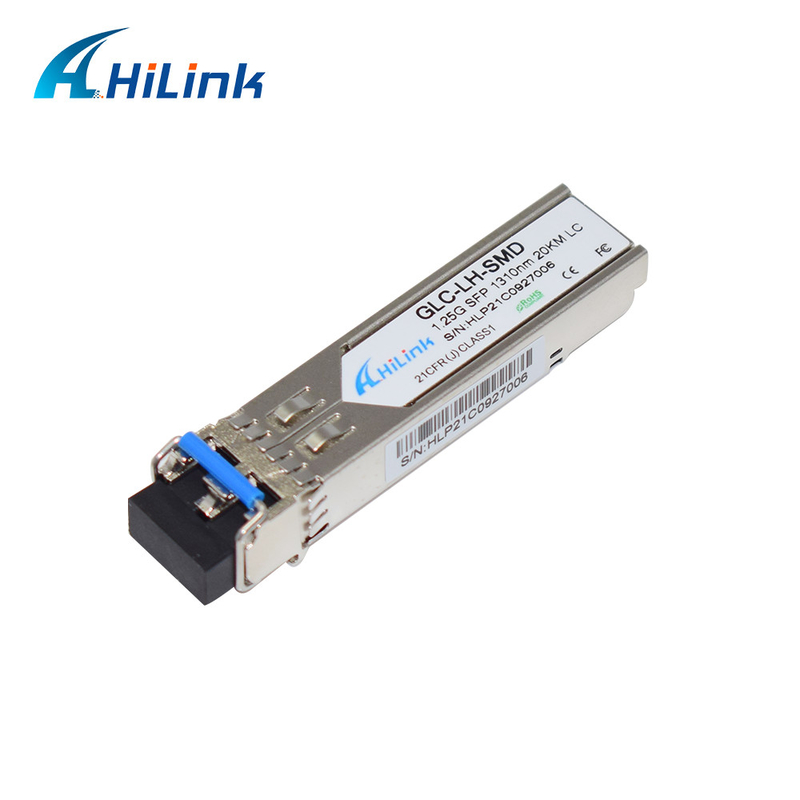

Product picture show:

Optical Characteristics (TOP=25°C, Vcc=3.3 Volts)

Notes:

• Class 1 Laser Safety.
• Unfiltered, 20-80%.
• Measured with DJ-free data input signal .In actual application, output DJ will be the sum of input DJ and ΔDJ.
• Measured with PRBS 2⁷-1 at 10^-12 BER .

Mechanical Specifications:

FAQ:
