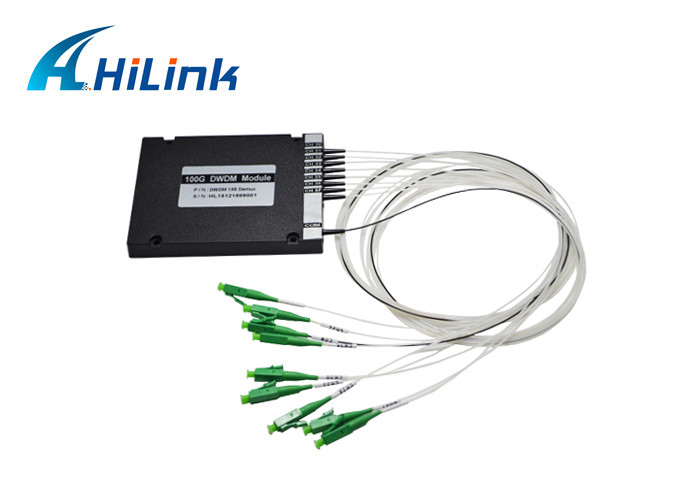

ABS box 100Ghz 1 x 8 DWDM Mux Demux modules with LC / APC connector |
DETAILED SPECIFICATION
| Parameters | |||||||
| Channel Space (GHz) | 100 (standard) | 200 | |||||
| Channel Number | 1*4 | 1*8&16 | 1*40 | 1*4 | 1*8 | 1*16 | |
| Center Wavelength (nm) | ITU Grid | ||||||
| Center Wavelength Accuracy (nm) | ± 0.05 | ± 0.1 | |||||
| Channel Passband (@-0.5dB) (nm) | 0.22 | 0.5 | |||||
| Fiber Type | SMF-28e with 900um loose tube or customer specified | ||||||
| IL (dB) | 1.8 | 3.0 | 3.5 | 1.7 | 2.9 | 3.4 | |
| Passband Ripple (dB) | 0.35 | 0.4 | 0.5 | 0.35 | 0.4 | 0.5 | |
| Isolation (dB) | Adjacent Channel | 25 | 28 | ||||
| Non-Adjacent Channel | 40 | ||||||
| PDL (dB) | 0.2 | ||||||
| PMD (ps) | 0.1 | ||||||
| RL (dB) | 45 | ||||||
| Directivity (dB) | 50 | ||||||
| Maximum Optical Power (mw) | 300 | ||||||
| Operating Temperature (℃) | -40~85 | ||||||
| Storage Temperature (℃) | -40~85 | ||||||
| BOX Package (mm) | 100*80*10 or 140*115*18 | ||||||
| LGX Package | 1U,2U | ||||||
| 19’’ Rack mount Package | 1U | ||||||
USING SOLUTION
DWDM Mux Demux with EDFA
PRODUCT SHOW
DWDM Mux/Demux Module
| HL-DWMUX40-XX-LCSR | 40 channel DWDM MUXDEMUX | Customized wavelength |
| HL-DWMUX08-XX-LCSR | 8 channel DWDM MUXDEMUX | Customized wavelength |
| HL-DWMUX08-XX-LCSRM | 8+1 channel DWDM MUXDEMUX |
Customized wavelength with one monitor |
| HL-DWMUX04-XX-LCSR | 4 channel DWDM MUXDEMUX | Customized wavelength |
