Place of Origin:
China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
mini-2x16

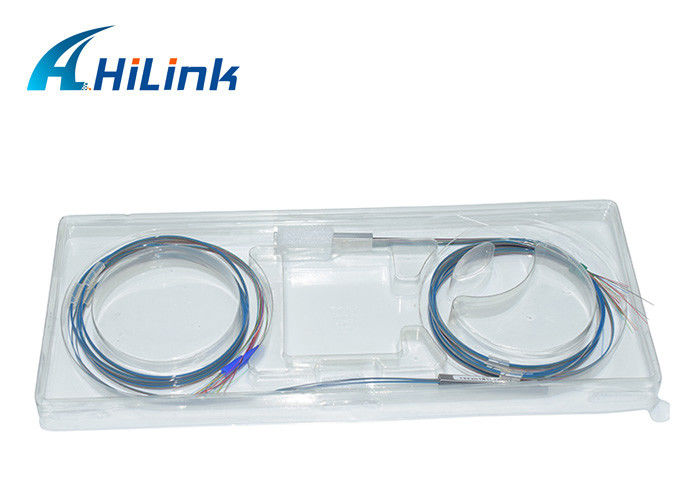

Steel Tube Low Loss Splitter Optical Fiber 2X16 900μm LC / APC High Stability
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
Blockless PLC splitter has stronger fiber protection than bare fiber splitter, which is a miniaturization result of cassette splitter. It's mainly used for various connection and distribution boxes or network cabinets.
| Features | Application |
| 2×16 blockless PLC Splitter, LC/APC connector | Optical Signal Distribution |
| 900μm ITU G.657A1 for fiber input/output | Data Communications |
| Low insertion loss ≤ 17.1dB | Lan and CATV System |
| Low polarization dependent loss (PDL) ≤ 0.3dB | FTTX Deployment |
| Operating bandwidth: 1260 - 1650nm | FTTH Network |
| Compact design, suitable for installation in optical equipments | Passive Optical Networks (PON) |
| Wide Operating Temperature: -40 - 85°C, support industry standard applications | Measuring System and Laser System |
| High reliability and stability, Telecordia GR-1221/1209 compliant | DWDM and CWDM Systems |
Product characteristic:
Ultra low insertion loss and polarization loss,
Dispersion of light uniformity good
Wide range of wavelength bandwidth
Working environment scope broad
High reliability
Small volume
Application
Can be widely used in the FTTx, passive light network (OPN), the cable network (CATV) and other light signal shunt system
Standard
Telcordia GR-1209-CORE Telcordia GR-1221-CORE YD/T1117-2001
| Optical Performance | Specification | |||
| Insertion Loss(1310.1490.1550) | max | dB | 14.8 | |
| Uniformity Loss | max | dB | 1.1 | |
| Polarization Dependent Loss | max | dB | 0.3 | |
| Wavelength Bandwidth | mix | dB | 1260-1650 | |
| Retum Loss(Design Guarantee) | mix | dB | 55.0 | |
| Directivity(Design Guarantee) | mix | dB | 55.0 | |
| Operating Temperature | ℃ | dB | -40~85 | |
