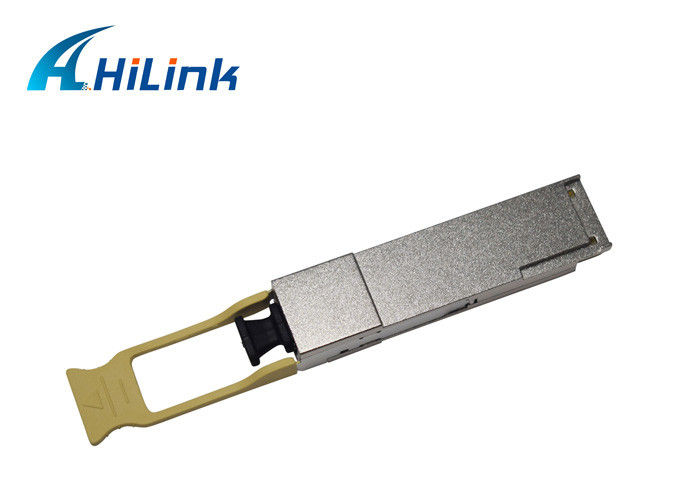

1310nm QSFP+ Optical Transceiver Single Mode Fiber Module PSM IR4 2km / 10km
The QSFP full-duplex optical module offers 4 independent transmit and receive channels, each capable of 10.7Gbps operation for an aggregate data rate of 42.8Gbps 2km over single mode fiber. These modules are designed to operate over single mode fiber systems using 1310nm FP laser array. An optical fiber ribbon cable with an MPO/MTP connector can be plugged into the QSFP module receptacle. QSFP+ PSM IR4 is one kind of parallel transceiver which provides increased port density and total system cost savings.
Features :
Full duplex 4 channel 1310nm parallel module
Transmission data rate up to 11.3Gbit/s per channel
SFF-8436 QSFP+ compliant
Hot pluggable electrical interface
Singlemode fiber with MPO connectors
Differential AC-coupled high speed data interface
4 channels 1310nm FP array ,4 channels PIN photo detector array
Maximum link length of 2km on G652 single mode fiber (SMF)
Maximum power consumption 3.5W
Housing isolated from connector ground
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS 6 compliant
General Specifications:
| P/N | QSFP-40G-IR4-PSM |
| Datarate | 40G/ps |
| Distance | 2~10KM |
| Wavelenth | 4 CWDM Lane 1270 1290 1310 1330 |
| Media | SMF |
| DDM/DOM | YES |
| Connector | MPO |
| Application | 40G Ethernet/ 40G Infiniband |
| Operating Temperature | 0℃~ +70℃ |
| Voltage Supply | 3.3V |
| Certification | CE/FCC/RoHS/TUV/UL |
| Compatible |
CISCO JUNIPER
|
Application :
Infiniband Connectivity SDR/DDR/QDR
10/40 Gigabit Ethernet
2/4/8 Gbps Fiber Channel
Data Centers and Storage Array
| 25G SFP28 SR4 | 25Gbps 850nm SFP28 transceiver 100M |
| QSFP-40G-SR4 | QSFP-SR4, MMF, 850nm, 150M, MPO |
| QSFP-40G-CSR4 | QSFP+, MMF, 850nm, 300M (OM3) - MPO |
| QSFP-40G-LR4 | QSFP-LR4, SMF, 1270nm~1330nm,15KM LC |
| QSFP-40G-PSM-IR4 | QSFP+-IR4,SMF ,1310NM 2KM MPO |
| 40G QSFP+ PSM 10KM | QSFP+-LR4,SMF ,1310NM 10KM MPO |
| 100G QSFP28 SR4 | 100GBASE-SR4 QSFP28 |
| QSFP28 CWDM4 2KM | 100G QSFP28 CWDM4 2KM 1271~1331 |
| QSFP28 CWDM4 500M | 100G QSFP28 CWDM4 500 1271~1331 |
| QSFP28 PSM4 1310nm 2km | QSFP28 PSM4 1310nm 2km MPO SMF |
| 25G SFP28 AOC 1M | 25Gbps 850nm Multimode SFP28 AOC 1~100M |
| 25G SFP28 DAC SFF-8402 | 25G SFP28 to SFP28 DAC 1m 3m 5meter |
| 40G QSFP+ AOC 1M | QSFP-AOC Active 40Gbase 1~100meter |
| 40G QSFP+ DAC 1M | QSFP SFF8436 Passive Cable 1~5M |
| 100G QSFP28 TO QSFP28 DAC | 1M 2M 3M 5M SFF-8665 100G QSFP28 Passive |
| 100G QSFP28-SR4 AOC 1M | 100GBASE-SR4 QSFP28 AOC Fiber |
QSFP 40G Series :
| Ordering information | |
| Part Number | Product Description |
| HiLink-QSFP-40G-SR4 | QSFP+, 40Gb/s, 40GBASE-SR4, MMF, 850nm, 100M |

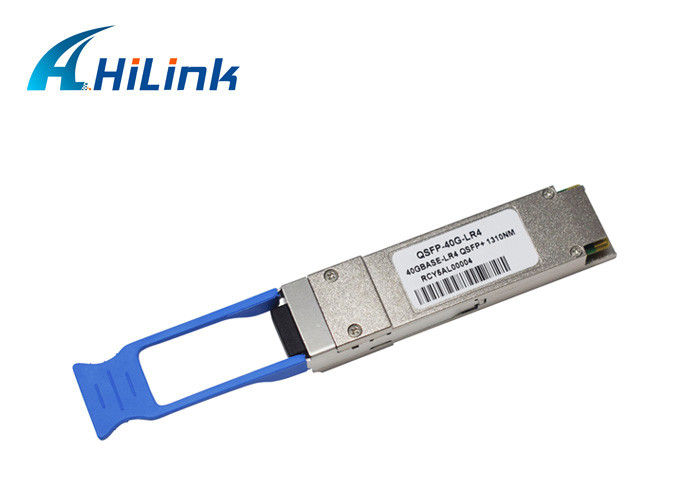

| HiLink-QSFP-40G-LR4 | QSFP+, 40Gb/s, 40GBASE-LR4, SMF, 1310nm, 10KM |
| HiLink-QSFP-100G-SR4 | QSFP+, 100Gb/s, 100GBASE-SR4, MMF, 850nm, 100M |
| HiLink-QSFP-100G-LR4 | QSFP+, 100Gb/s, 100GBASE-LR4, SMF, 1310nm, 10KM |
| HiLink-QSFP-40G-IR4 | QSFP+, 40Gb/s, 100GBASE-IR4, SMF, 1310nm, 2KM MPO |
| HiLink-QSFP-40G-IR4 | QSFP+, 40Gb/s, 100GBASE-IR4, SMF, 1310nm, 10KM LC |
