Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-QSFP-4SFP10G-AOC1M
40G QSFP+ 4XSFP AOC Cable MMF 1M-5M QSFP to 4-SFP+ Active Optical Cables
General:
The QSFP+ Active Optical Cables are direct-attach fiber assemblies with QSFP+ connectors. They have very good power consumption performance. They are suitable for very short distances and offer a cost-effective way to connect within racks and across adjacent racks.
Features:
Support 40-4*10GBASE-SR application
Electrical interface compliant to QSFP+ connector
(SFF-8436) and SFP+ connector (SFF-8431)
850nm VCSEL transmitter, PIN photo-detector receiver
Multi rate of up to 10.3125Gbps per lane
Operating case temperature: 0 to 70℃
+3.3V power supply voltage
Low power consumption
RoHS compliant
UL certification cables (optional)
Application:
40-4*10 Gbe-SR
Fibre Channel Applications
InfiniBand QDR, SDR, DDR
Servers, switches, storage and host card adapters,etc.
QSFP Cable Series:
| QSFP+40G-Optical cable | |
| QSFP-40G-AOC1M | QSFP+ to QSFP+, Active optical cable 1M |
| QSFP-40G-AOC3M | QSFP+ to QSFP+, Active optical cable 3M |
| QSFP-40G-AOC5M | QSFP+ to QSFP+, Active optical cable 5M |
| QSFP-40G-AOC7M | QSFP+ to QSFP+, Active optical cable 7M |
| QSFP-40G-AOC10M | QSFP+ to QSFP+, Active optical cable 10M |
| QSFP-40G-AOC20M | QSFP+ to QSFP+, Active optical cable 20M |
| QSFP-40G-AOC30M | QSFP+ to QSFP+, Active optical cable 30M |
| QSFP-40G-AOC50M | QSFP+ to QSFP+, Active optical cable 50M |
| QSFP-40G-AOC100M | QSFP+ to QSFP+, Active optical cable 100M |
| QSFP+40G Copper Cable | |
| QSFP-H40G-CU1M | QSFP+ to QSFP+ Passive Copper Cable 1M |
| QSFP-H40G-CU2M | QSFP+ to QSFP+ Passive Copper Cable 2M |
| QSFP-H40G-CU3M | QSFP+ to QSFP+ Passive Copper Cable 3M |
| QSFP-H40G-CU4M | QSFP+ to QSFP+ Passive Copper Cable 4M |
| QSFP-H40G-CU5M | QSFP+ to QSFP+ Passive Copper Cable 5M |
| QSFP-H40G-ACU7M | QSFP+ to QSFP+ Active Copper Cable |
| QSFP-H40G-ACU10M | QSFP+ to QSFP+ Active Copper Cable |
| QSFP-4SFP+ Copper Cable | |
| QSFP-4SFP10G-CU0.5M | QSFP+ to 4SFP+ Passive Copper Cable 0.5M |
| QSFP-4SFP10G-CU1M | QSFP+ to 4SFP+ Passive Copper Cable 1M |
| QSFP-4SFP10G-CU3M | QSFP+ to 4SFP+ Passive Copper Cable 3M |
| QSFP-4SFP10G-CU5M | QSFP+ to 4SFP+ Passive Copper Cable 5M |
| QSFP-4SFP+ Optical cable | |
| QSFP-4SFP10G-AOC1M | QSFP+ to 4SFP+ Active optical cable 1M |
| QSFP-4SFP10G-AOC3M | QSFP+ to 4SFP+ Active optical cable 3M |
| QSFP-4SFP10G-AOC5M | QSFP+ to 4SFP+ Active optical cable 5M |
| QSFP-4SFP10G-AOC7M | QSFP+ to 4SFP+ Active optical cable 7M |
| QSFP-4SFP10G-AOC10M | QSFP+ to 4SFP+ Active optical cable 10M |

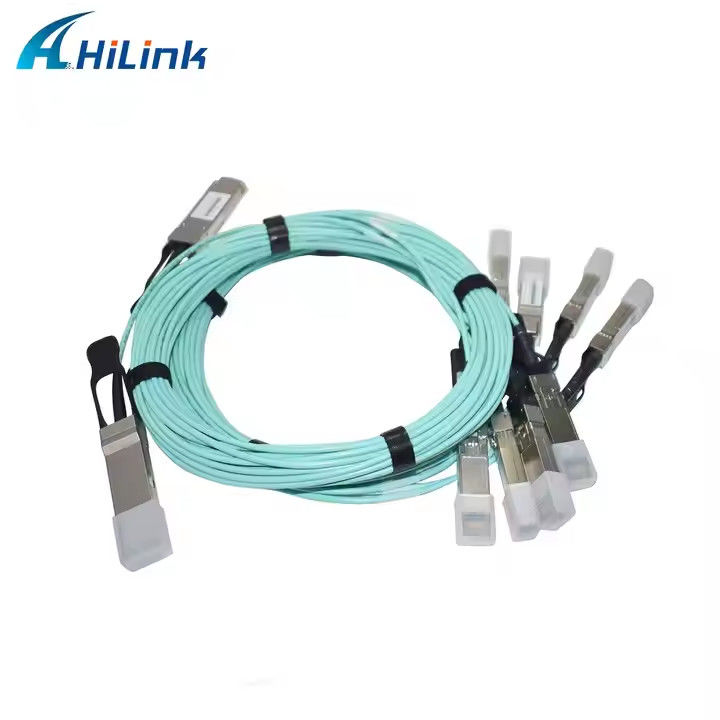

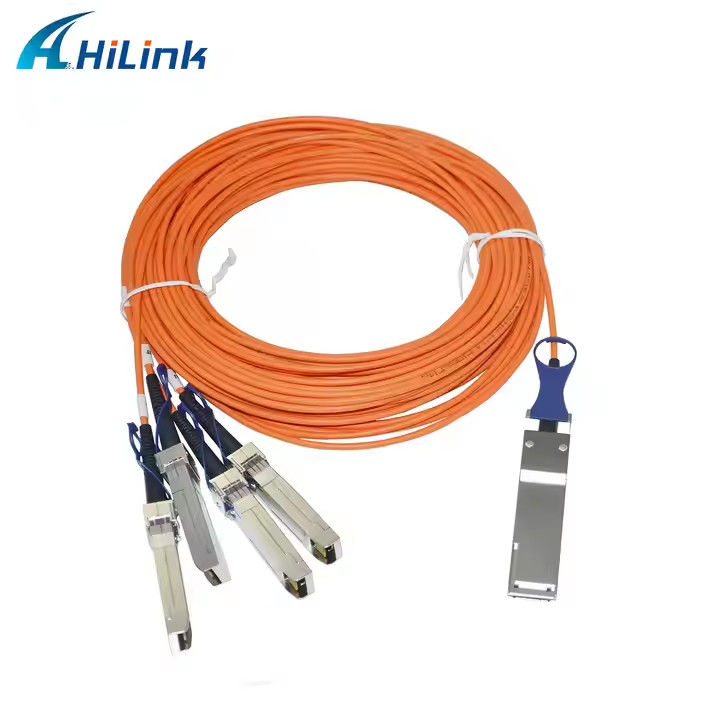

Product Picture shows:
What we supply:
We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+,QSFP28, SFP28, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules.
What we supply:
We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+,QSFP28, SFP28, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules.
Other Cables:
FAQ:
Q:Do you sell second-hand products?
A:No.All our products are brand new,we never use secont-hand components.
Q:What payment terms do you accept?
A:T/T,Paypal,Western Union are acceptable.
Q:What are the shipping ways can you offer?
A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.
Q:Do your products come with warranty?
A:Yes,We provide 3 years warranty for all our products from the date of shipment.
Q:How to place an order?
A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.
As we have various kinds of products,if you can't find the correct
