Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-1.25G-ZX-120

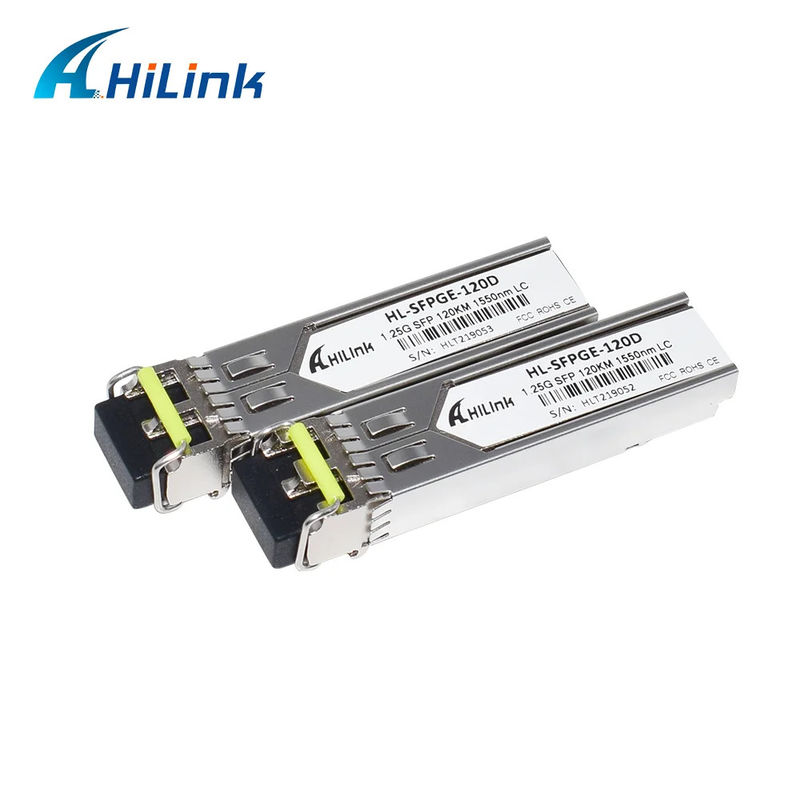

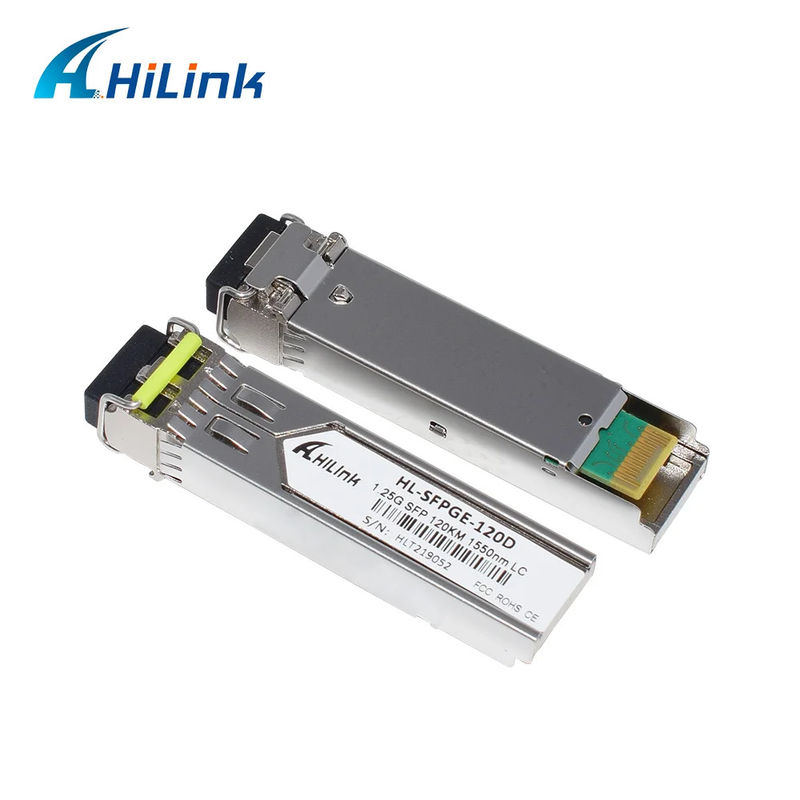

1000BASE 1.25G 1550nm 120KM LC Connector WDM SFP Transceiver Module
Product Features
Hot-pluggable SFP footprint
1550nm DFB laser transmitter
APD Receiver
Duplex LC connector
Up to 120km on 9/125µm SMF
Metal enclosure for lower EMI
Single +3.3V power supply
Low power dissipation <700mW
Commercial operating temperature range: 0°C to +70°C
Applications
Gigabit Ethernet
1.06 Gb/s Fibre Channel
120km Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0 .They are RoHS compliant and lead-free.
Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0. They are RoHS compliant and lead-free.
It primarily enables bandwidth 1.25G optical links over single-mode fiber terminated with LC connectors and can be used in commercial temperature environment for interoperability with TTL Logic Interface.
B/D Transceiver Series:
| GLC-BX-D20 SC | 1.25G DFB Tx1490nm/Rx1310nm 20km LC/SC BIDI |
| GLC-BX-U20 SC | 1.25G FP Tx1310nm/Rx1490nm 20km LC/SC BIDI |
| GLC-BX-U40 SC | 1.25G DFB Tx1310nm/Rx1490nm 40km LC/SC BIDI |
| GLC-BX-D40 SC | 1.25G DFB Tx1490nm/Rx1310nm 40km LC/SC BIDI |
| GLC-BX-U70 SC | 1.25G DFB Tx1490nm/Rx1550nm 60km LC/SC BIDI |
| GLC-BX-D70 SC | 1.25G DFB Tx1550nm/Rx1490nm 60km LC/SC BIDI |
| GLC-BX-U80 | 1.25G DFB Tx1490nm/Rx1550nm 80km LC/SC BIDI |
| GLC-BX-D80 | 1.25G DFB Tx1550nm/Rx1490nm 80km LC/SC BIDI |
| GLC-BX-U120 | 1.25G DFB Tx1490nm/Rx1550nm 120km LC/SC BIDI |
| GLC-BX-D120 | 1.25G DFB Tx1550nm/Rx1490nm 120km LC/SC BIDI |
Hilink specialize in wide range of sfp transceivers.
>SFP,SFP+,XFP,CWDM,DWDM
>CWDM/DWDM Mux Demux
>PLC Splitter,Media converter etc.
>Fiber optic cable(10g/40g aoc,dac and 40g/100g mpo cable)
