100G QSFP28 Transceiver 1310nm 100G LR4 100GBASE-LR4 Single Lambda LR4 10KM LC DOM

100G QSFP28 1310nm 100G LR4 100GBASE-LR4 Single Lambda LR4 10KM LC

Descriptions

        This product is a transceiver module designed for 10km optical communication applications. The module incorporates one channel optical signal, on 1310nm center wavelength, operating at 50Gbaud data rate. The transmitter path incorporates an EML Driver and a cooled EML together. On the receiver path, the input optical signal is coupled to a Pin photodiode detector. A DSP based gearbox is used to convert 4x25Gbps NRZ signals to 1x50Gbaud PAM4 signal. Also a 4-channel retimer and FEC block are integrated in this DSP. The electrical interface is compliant with IEEE 802.3cd and QSFP28 MSA in the transmitting and receiving directions, and optical interface is compliant to IEEE 802.3cd and 100G Lambda MSA with Duplex LC connector. The module has a maximum power consumption of 4.5W.

        The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

Features

QSFP28 MSA compliant

Supports 53.125Gbaud

100G Lambda MSA 100G-LR Specification compliant

Up to 10km transmission on single mode fiber (SMF) with FEC

Operating case temperature: 0 to 70oC

4x25G electrical interface (OIF CEI-28G- VSR)

Maximum power consumption 4.5W

LC duplex connector

RoHS compliant

Application

100GBASE-LR4

100G Datacom connections

QSFP SERIES

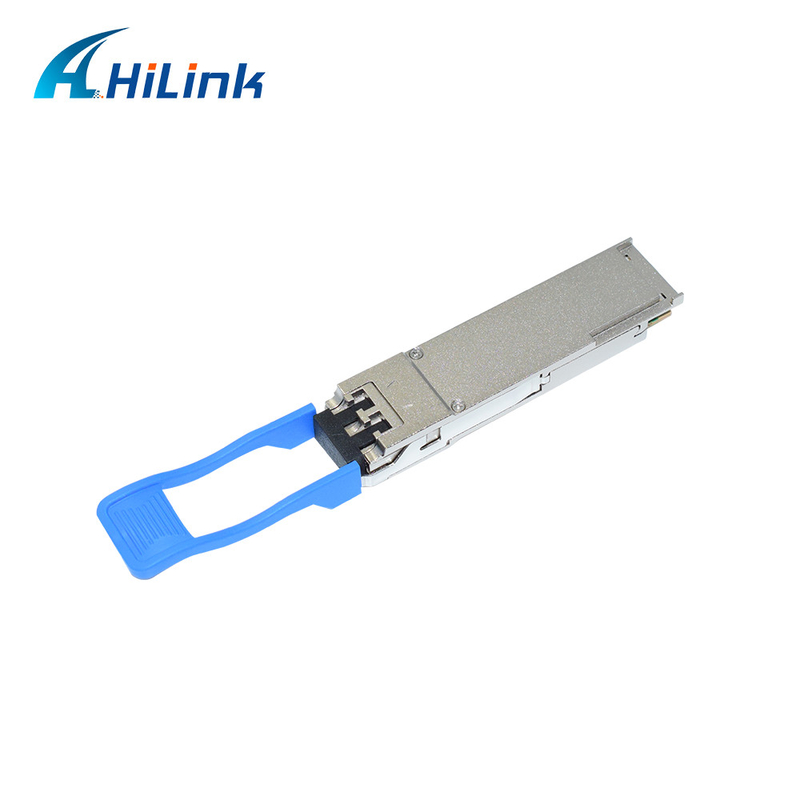

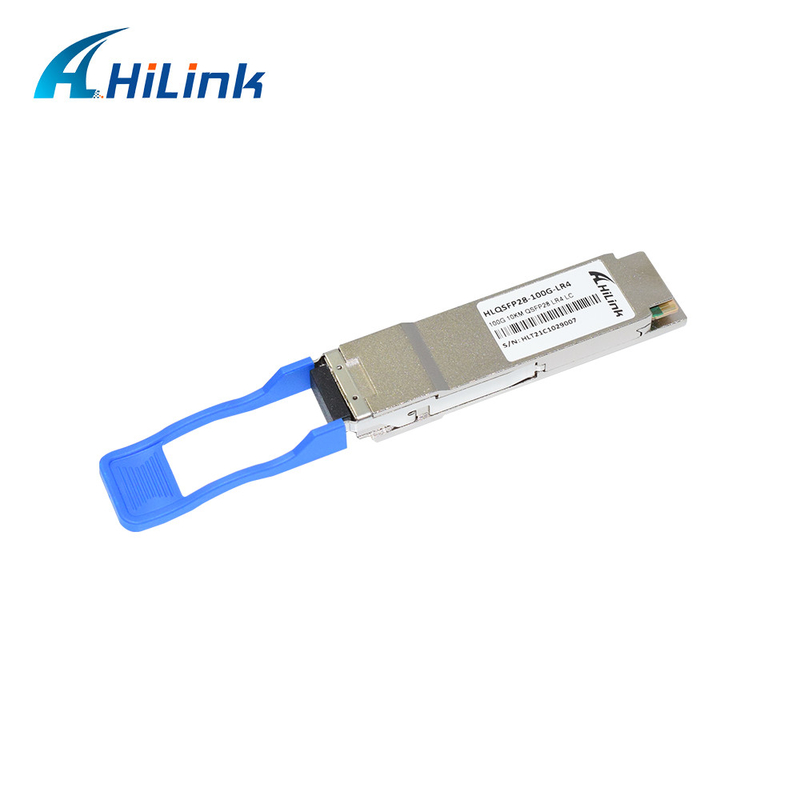

Product Picture Shows

Our Service

Contact our sales for more details to confirm your order.
Short lead time after confirmation.

We deliver goods by international Express.

Quick response for customers' feedback and other questions.

Shipment & Payment

International Express: DHL, Fedex, UPS, EMS, UPS, TNT and etc.
Payment: T/T, Western Union, Paypal and so on.

Guarantee

Brand new.

OEM/ODM is available.
100% through quality test and aging test.
3 years warranty(From the date of shipment).

Technician support

          We support technical guide to solve malfunction or substitute components, and provide the project of related networking configuration.
After-sales service
We have after service for 24 hours, promises to supply technical service or guide in anytime.
Our co-workers will be response clients's requirement in 12 hours after emergency happened.

Packing Details: Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.

FAQ:

Q:Do you sell second-hand products?

A:No.All our products are brand new,we never use secont-hand components.

Q:What payment terms do you accept?

A:T/T,Paypal,Western Union are acceptable.

Q:What are the shipping ways can you offer?

A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.

Q:Do your products come with warranty?

A:Yes,We provide 3 years warranty for all our products from the date of shipment.

Q:How to place an order?

A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.

As we have various kinds of products,if you can't find the correct item you need,please send us inquiry.We will follow up shortly.
