Place of Origin:
China
Brand Name:
Hilink
Certification:
CE FCC Rohs
Model Number:
HL-8CH-DWDM-MUX/DEMUX
Video
8CH DWDM MUX DEMUX 100GHz 8 Channel HL-DW-MUX-8CH LC/APC LC/UPC
Features
Low insertion loss
Low PDL
High channel isolation
Excellent environmental reliability
High Channel Isolation
Low Insertion Loss
Optical Path Epoxy Free
Telcordia 1221 Compliant
Ultra Low TDL
Wide Operating Temperature: -40~+85℃
Applications
Dense WDM System
PON Networks
CATV Links
Performance Specifications
1×N DWDM Mux/Demux Module
| Parameters | |||||||
| Channel Space (GHz) | 100 | 200 | |||||
| Channel Number | 1*4 | 1*8 | 1*16 | 1*4 | 1*8 | 1*16 | |
| Center Wavelength (nm) | ITU Grid | ||||||
| Center Wavelength Accuracy (nm) | ± 0.05 | ± 0.1 | |||||
| Channel Passband (@-0.5dB) (nm) | 0.22 | 0.5 | |||||
| Fiber Type | SMF-28e with 900um loose tube or customer specified | ||||||
| IL (dB) | 1.8 | 2.3 | 3.0 | 1.7 | 2.9 | 3.1 | |
| Passband Ripple (dB) | 0.35 | 0.4 | 0.5 | 0.35 | 0.4 | 0.5 | |
| Isolation (dB) | Adjacent Channel | 25 | 28 | ||||
| Non-Adjacent Channel | 40 | ||||||
| PDL (dB) | 0.2 | ||||||
| PMD (ps) | 0.1 | ||||||
| RL (dB) | 45 | ||||||
| Directivity (dB) | 50 | ||||||
| Maximum Optical Power (mw) | 500 | ||||||
| Operating Temperature (°C) | -40~85 | ||||||
| Storage Temperature (°C) | -40~85 | ||||||
| BOX Package (mm) | 100*80*10 or 140*115*18 | ||||||
| LGX Package | 1U,2U | ||||||
| 19’’ Rack mount Package | 1U | ||||||
above specification are for device without connector.
2~44Channels available.
Com port: simplex or duplex.
Fiber connector: LC/SC or other.
Package: ABS plastic box, LGX metal cassette box, 19inch rack mount.
DWDM Solutions and DWDM SFP/XFP.
Min.Order Quantity: 1pcs is also okay for sample to satisfy your need.
DWDM Mux/Demux Solution
DWDM Mux/demux with EDFA

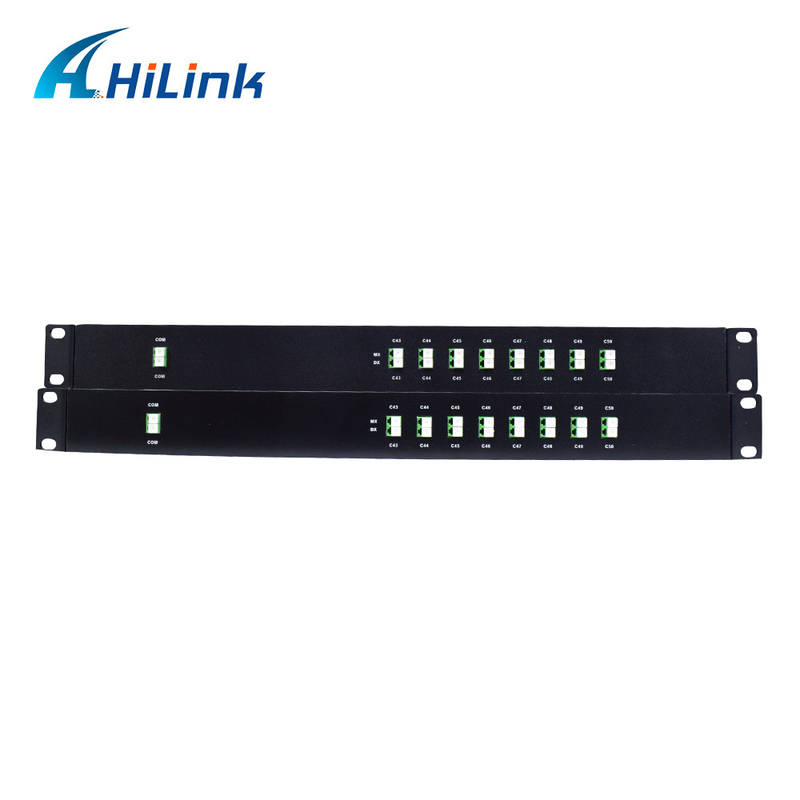

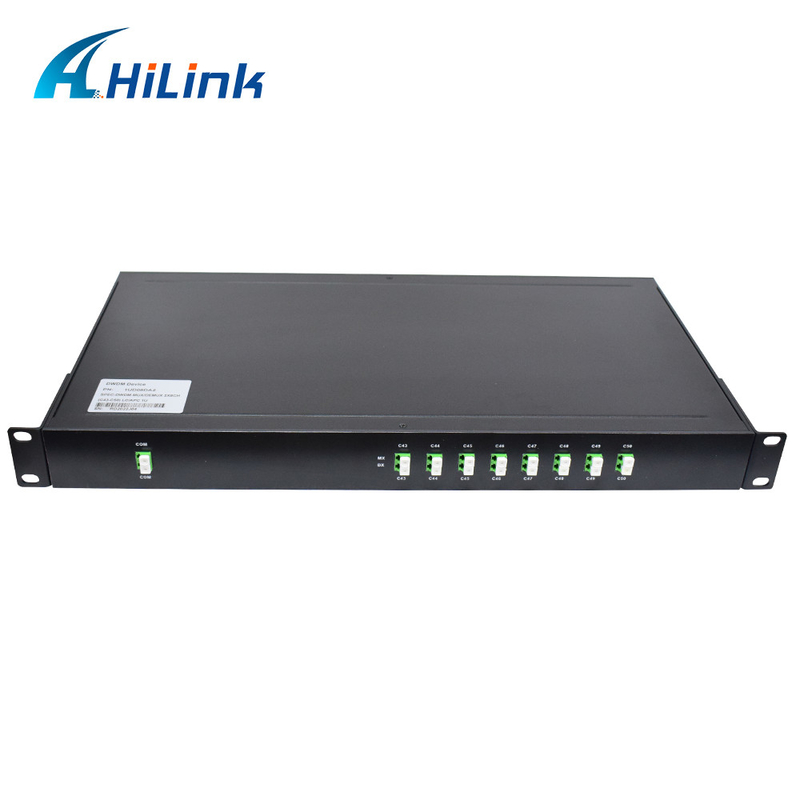

Product picture show
As we have various kinds of products,if you can't find the correct item you need,please send us inquiry.We will follow up shortly.
