Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-QSFP-40G-AOC-20M
40G Active Optical Cable 3M QSFP AOC OM3 OM4 QSFP+ to QSFP+ AOC
General:
The SFP+ Active Optical Cables are direct-attach fiber assemblies with SFP+ connectors. They have very good power consumption performance. They are suitable for very short distances and offer a cost-effective way to connect within racks and across adjacent racks.
Features:
Connector 1: QSFP+ AOC
Connector 2: QSFP+ AOC
Supports 41.25Gb/s aggregate bit rate
4 channels 850nm VCSEL array
4 channels PIN photo detector array
1.5W maximum power dissipation per end
Maximum link length of 300m on OM3 MMF or 400m on OM4 MMF
QSFP+ MSA-compliant high-density connectors
Built-in digital diagnostic functions
Operating case temperature range: 0 to 70°C
Single 3.3V power supply
RoHS 6 compliant (lead free)
Application:
InfiniBand QDR, DDR and SDR
Data Aggregation, Backplane and Proprietary Density Applications
PCI-Express, SAS/SATA,
Fiber Channel compatible interconnect
40GBE and 10GBE interconnects
40G Telecom connections
40G Data Centers
QSFP Cable Series:
| QSFP+40G-Optical cable | |
| QSFP-40G-AOC1M | QSFP+ to QSFP+, Active optical cable 1M |
| QSFP-40G-AOC3M | QSFP+ to QSFP+, Active optical cable 3M |
| QSFP-40G-AOC5M | QSFP+ to QSFP+, Active optical cable 5M |
| QSFP-40G-AOC7M | QSFP+ to QSFP+, Active optical cable 7M |
| QSFP-40G-AOC10M | QSFP+ to QSFP+, Active optical cable 10M |
| QSFP-40G-AOC20M | QSFP+ to QSFP+, Active optical cable 20M |
| QSFP-40G-AOC30M | QSFP+ to QSFP+, Active optical cable 30M |
| QSFP-40G-AOC50M | QSFP+ to QSFP+, Active optical cable 50M |
| QSFP-40G-AOC100M | QSFP+ to QSFP+, Active optical cable 100M |
| QSFP-4SFP+ Optical cable | |
| QSFP-4SFP10G-AOC1M | QSFP+ to 4SFP+ Active optical cable 1M |
| QSFP-4SFP10G-AOC3M | QSFP+ to 4SFP+ Active optical cable 3M |
| QSFP-4SFP10G-AOC5M | QSFP+ to 4SFP+ Active optical cable 5M |
| QSFP-4SFP10G-AOC7M | QSFP+ to 4SFP+ Active optical cable 7M |
| QSFP-4SFP10G-AOC10M | QSFP+ to 4SFP+ Active optical cable 10M |

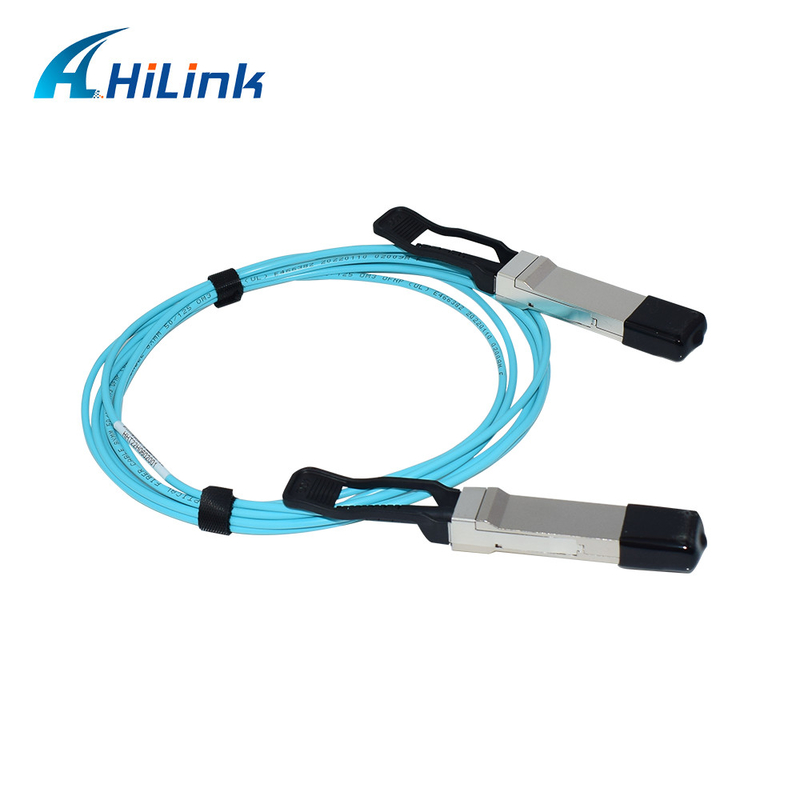

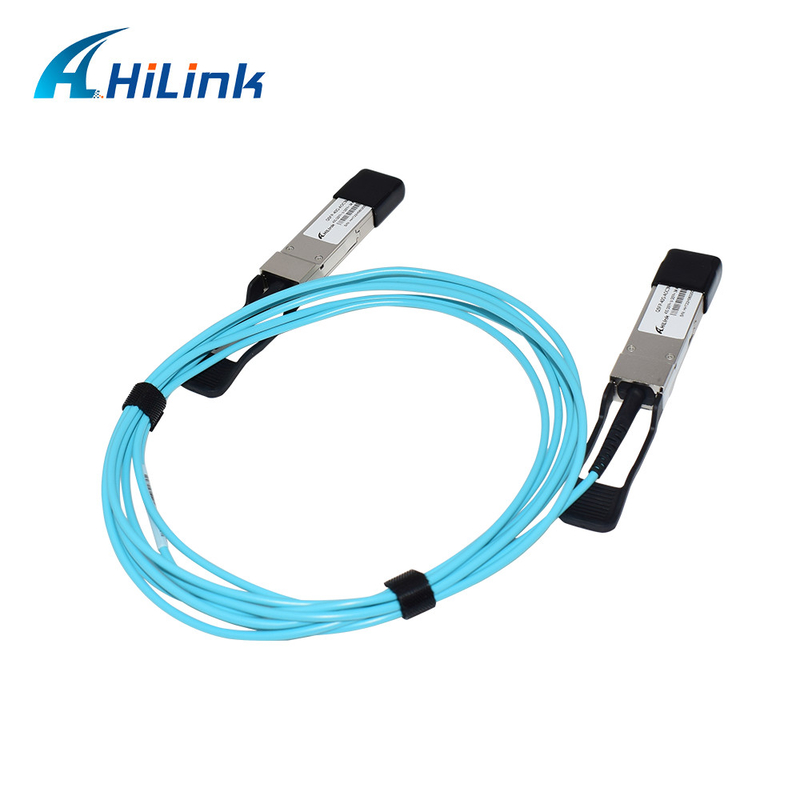

Product Picture:
Mechanical Dimensions:
What we supply:
We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+,QSFP28, SFP28, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules.
Other Cables:
FAQ:
Q:Do you sell second-hand products?
A:No.All our products are brand new,we never use secont-hand components.
Q:What payment terms do you accept?
A:T/T,Paypal,Western Union are acceptable.
Q:What are the shipping ways can you offer?
A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.
Q:Do your products come with warranty?
A:Yes,We provide 3 years warranty for all our products from the date of shipment.
Q:How to place an order?
A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.
As we have various kinds of products,if you can't find the correct
