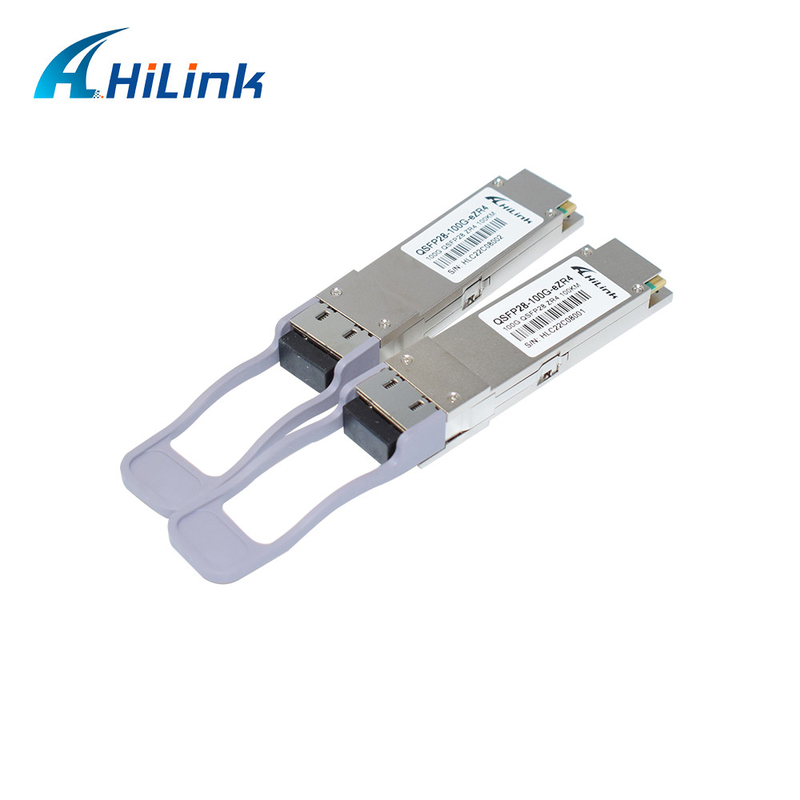

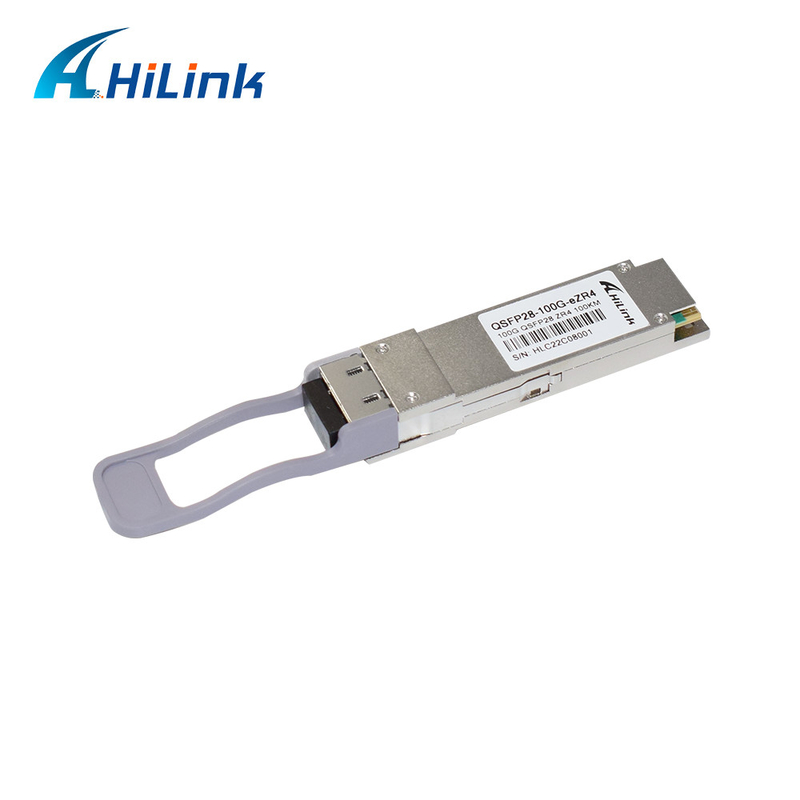

QSFP28 Optical Module 100KM SMF Dual LC 100G EZR4 Transceivers
Hilink QSFP28 ZR4 modules are designed for 100 Gigabit Ethernet over single mode fiber. They are compliant with the QSFP28 MSA, 100GBASE-ZR4+.
Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA. QSFP28 are compliant with RoHS.
Features
Optical Characteristics
Transmitter:
| Parameter | Symbol | Minimum | Typical | Maximum | Unit | Notes |
| Launch Optical Power per lane | Po | +3.0 | - | +6.5 | dBm | 1 |
| Total Launch Optical Power | Po | - | - | +12.5 | dBm | 1 |
| Center Wavelength Range | L1 | 1294.53 | 1295.56 | 1296.59 | nm | - |
| L2 | 1299.02 | 1300.05 | 1301.09 | nm | - | |
| L3 | 1303.54 | 1304.58 | 1305.63 | nm | - | |
| L4 | 1308.09 | 1309.14 | 1310.19 | nm | - | |
| Extinction Ratio | EX | 8.0 | - | - | dB | 2 |
| Spectral width(-20dB) | Δλ | - | - | 1 | nm | - |
| Side Mode Suppression Ratio | SMSR | 30 | - | - | dB | - |
| Optical Return Loss Tolerance | ORLT | - | - | 20 | dB | - |
| Pout @TX-Disable Asserted | Poff | - | - | -30 | dBm | 1 |
| Eye Mask {X1, X2, X3, Y1, Y2, Y3} | {0.25, 0.4, 0.45, 0.25, 0.28, 0.4} | |||||
Notes:
Receiver:
| Parameter | Symbol | Minimum | Typical | Maximum | Unit | Notes |
| Center Wavelength | L1 | 1294.53 | 1295.56 | 1296.59 | nm | - |
| L2 | 1299.02 | 1300.05 | 1301.09 | nm | - | |
| L3 | 1303.54 | 1304.58 | 1305.63 | nm | - | |
| L4 | 1308.09 | 1309.14 | 1310.19 | nm | - | |
| Sensitivity per Channel (average optical power) | S | - | - | -30.0 | dBm | 1 |
| Overload (each channel) | POL | +4.5 | - | - | dBm | 1 |
| Damage Threshold(each channel) | Pdamage | +5.5 | - | - | dBm | - |
| Receiver Reflectance | Rf | - | - | -26 | dB | - |
| LOS De-Assert | LOSD | - | - | -29.0 | dBm | - |
| LOS Assert | LOSA | - | - | -32.0 | dBm | - |
| LOS Hysteresis | - | 0.5 | - | 5.0 | dB | - |
