Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-QSFP-40G-LR4
Video
QSFP 40G LR4 10KM LC QSFP-LR-40G 1310nm LC QSFP SFP Transceiver
General
The HL-40G-LR4-10KM is a transceiver module designed for 10km optical communication applications. The design is compliant to 40GBASE-LR4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.
The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G694.2. It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.
Features
4 CWDM lanes MUX/DEMUX design
Up to 11.2Gbps per channel bandwidth
Aggregate bandwidth of > 40Gbps
DuplexLC connector
Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-LR4 Standard
QSFP MSA compliant
Up to10km transmission
Compliant with QDR/DDR Infiniband data rates
Single +3.3V power supply operating
Built-in digital diagnostic functions
Temperature range 0°C to 70°C
RoHS Compliant Part
Applications
Infiniband QDR and DDR interconnects
40G Ethernet
Proprietary High Speed Interconnections
Data center
40G SFP Transceiver
| Part Number | Product Description |
| HL-QSFP-40G-SR4 | QSFP+, 40GBASE-SR4, MMF, 850nm, 150M, MPO |
| HL-QSFP-40G-SR4 | QSFP+, 40GBASE-ESR4, MMF, 850nm, 300M (OM4) - MPO |
| HL-QSFP-40G-LR4 |
QSFP+, 40GBASE-LR4, SMF, 1270~1330nm,10KM LC |
| HL-QSFP-40G-ER4 | QSFP+, 40GBASE-ER4, SMF, 1270~1330nm,40KM LC |
| HL-QSFP-40G-ER4-60 |
QSFP+, 40GBASE-ZR4, SMF, 1270~1330nm,60KM LC |
| HL-QSFP-40G-ZR4 | QSFP+, 40GBASE-ZR4, SMF, 1295~1304nm,80KM LC |

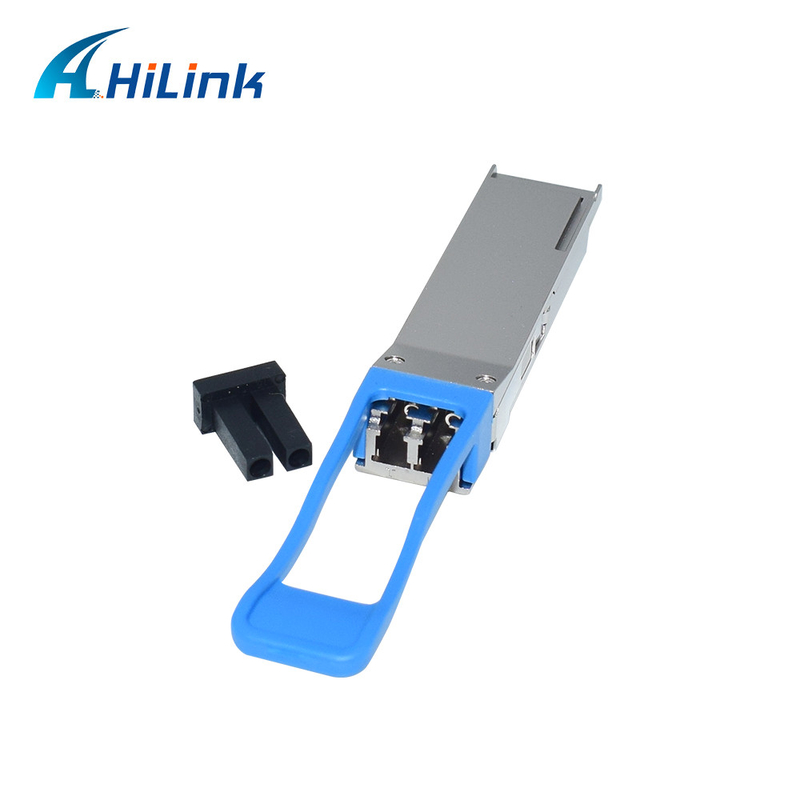

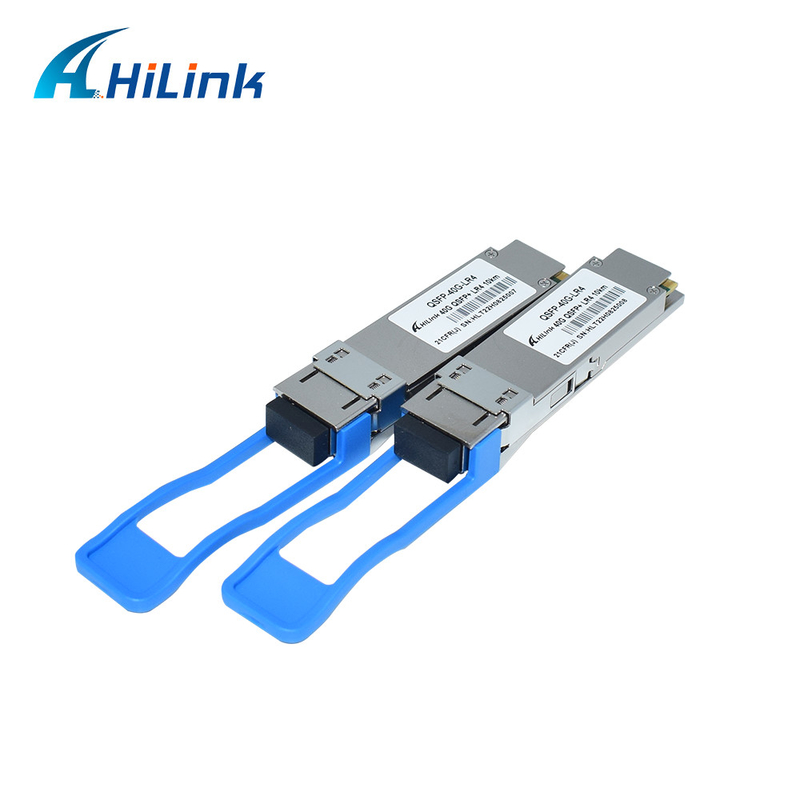

Product Picture Show
Our Service:
Contact our sales for more details to confirm your order.
Short lead time after confirmation.
We deliver goods by international Express.
Quick response for customers' feedback and other questions.
Guarantee:
Brand new.
OEM/ODM is available.
100% through quality test and aging test.
3 years warranty(From the date of shipment).
Technician support:
We support technical guide to solve malfunction or substitute components, and provide the project of related networking configuration.
After-sales service
We have after service for 24 hours, promises to supply technical service or guide in anytime.
Our co-workers will be response clients's requirement in 12 hours after emergency happened.
Packing Details:
Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.
Company Informations:
Shenzhen Haili Link Technology Co., Ltd. which is specialized in manufacturing and marketing fiber optic products, was founded in 2007.
RoHS, ISO&CE cerificated, we are golden supplier which specializes in this field 10 years with superior quality, competitive price and good solution.
Our core competencies are fiber optics of CFP2, QSFP28, QSFP SR4&LR4, CWDM SFP/XFP/X2, DWDM SFP/XFP/X2, solutions of DWDM, CWDM, WDM, MPO, AAWG, etc.
We have an independent Research&Development Department with 8 skillful engineers, with some advanced equipments and devices, such as cisco switch and routers, for further detailed test and procedure.
We also have related optical products and good solutions to satisfy customers' requirements.
