Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-100G to 4X25G-AOC-1M
100G AOC 100G to 4x25G AOC 850nm QSFP28 to 4x SFP28 Active Optical Cable OM3
General:
The 100G QSFP28 to 4x 25G SFP28 Active Optical Cables (AOC) offer IT professionals a cost-effective interconnect solution for merging 100G QSFP28 and 25G SFP28 enabled host adapters, switches and servers.For typical applications, users can install this breakout or splitter cable between an available QSFP28 port on 100GE switch and feed up to 4 upstream SFP28 enabled 25GE switches. Each cable features a single SFF-8436 compliant QSFP28 connector rated for 103Gb/s on one end and 4 SFF-8431 complicant SFP28 connectors rated for 25.78Gb/s each on the other end.
Features:
SFF-8436 compliant QSFP28 connector
4x SFF-8431 compliant SFP28 connectors
Hot-pluggable electrical interface
850nm VCSEL transmitter
PIN photo-detector receiver
Internal CDR circuits on both receiver and transmitter channels
Low power consumption < 2.5W (QSFP28) < 1W (SFP28)
Length up to 70m using OM3 MMF and 100m using OM4 MMF
Operating case temperature range 0°C to +70°C
All-metal housing for superior EMI performance
RoHS-6 compliant (lead free)
Application:
IEEE 802.3bm 100GBASE-SR4
IEEE 802.3by 25GBASE-SR
InfiniBand SDR/DDR/QDR
High-Performance Computing (HPC) clusters
Servers, switches, storage and host card adapters
QSFP28 Cable Series:
| QSFP28 100G-Optical cable | |
| QSFP28-100G-AOC1M | QSFP28 to QSFP28, Active optical cable 1M |
| QSFP28-100G-AOC3M | QSFP28 to QSFP28, Active optical cable 3M |
| QSFP28-100G-AOC5M | QSFP28 to QSFP28, Active optical cable 5M |
| QSFP28-100G-AOC7M | QSFP28 to QSFP28, Active optical cable 7M |
| QSFP28-100G-AOC10M | QSFP28 to QSFP28, Active optical cable 10M |
| QSFP28-100G-AOC20M | QSFP28 to QSFP28, Active optical cable 20M |
| QSFP28-100G-AOC30M | QSFP28 to QSFP28, Active optical cable 30M |
| QSFP28-100G-AOC50M | QSFP28 to QSFP28, Active optical cable 50M |
| QSFP28-100G-AOC100M | QSFP28 to QSFP28, Active optical cable 70M |
| QSFP28 100G Copper Cable | |
| QSFP28-H100G-CU1M | QSFP28 to QSFP28 Passive Copper Cable 1M |
| QSFP28-H100G-CU2M | QSFP28 to QSFP28 Passive Copper Cable 2M |
| QSFP28-H100G-CU3M | QSFP28 to QSFP28 Passive Copper Cable 3M |
| QSFP28-H100G-CU4M | QSFP28 to QSFP28 Passive Copper Cable 4M |
| QSFP28-H100G-CU5M | QSFP28 to QSFP28 Passive Copper Cable 5M |
| QSFP28-H100G-CU7M | QSFP28 to QSFP28 Passive Copper Cable 7M |
| QSFP28-H100G-CU10M | QSFP28 to QSFP28 Passive Copper Cable 10M |

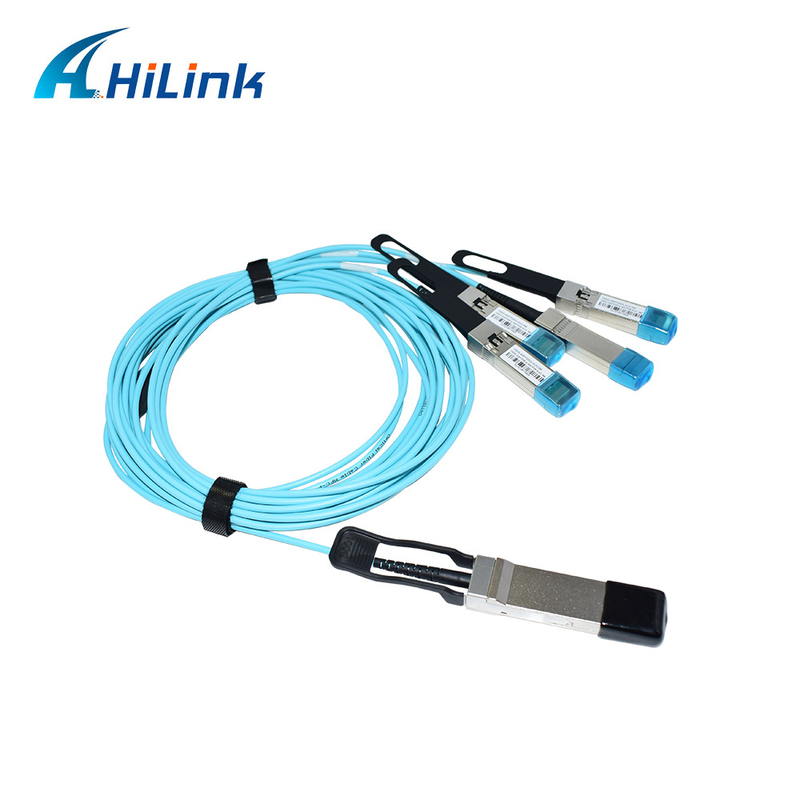

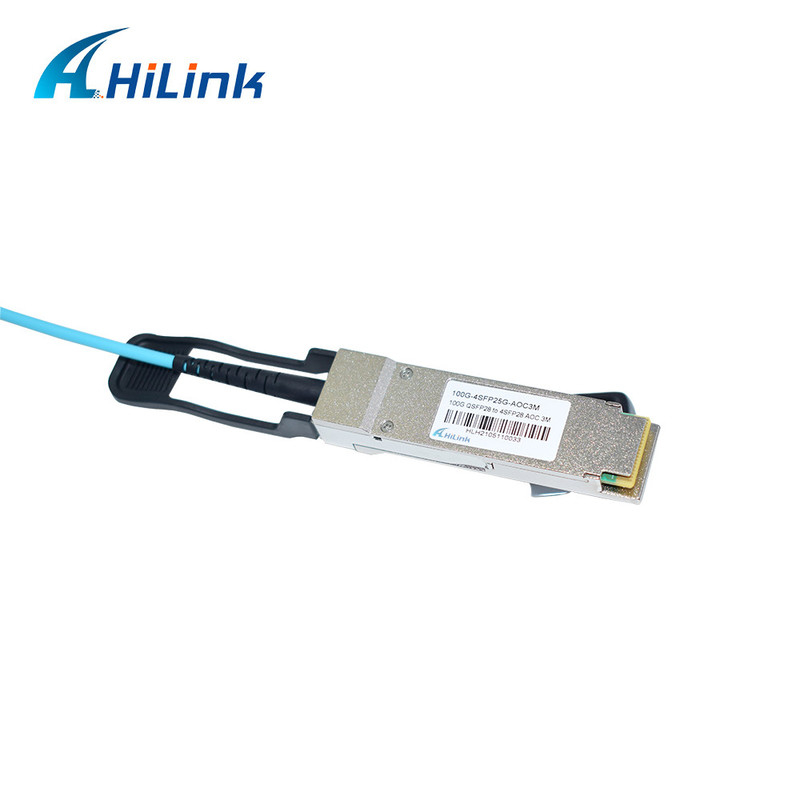

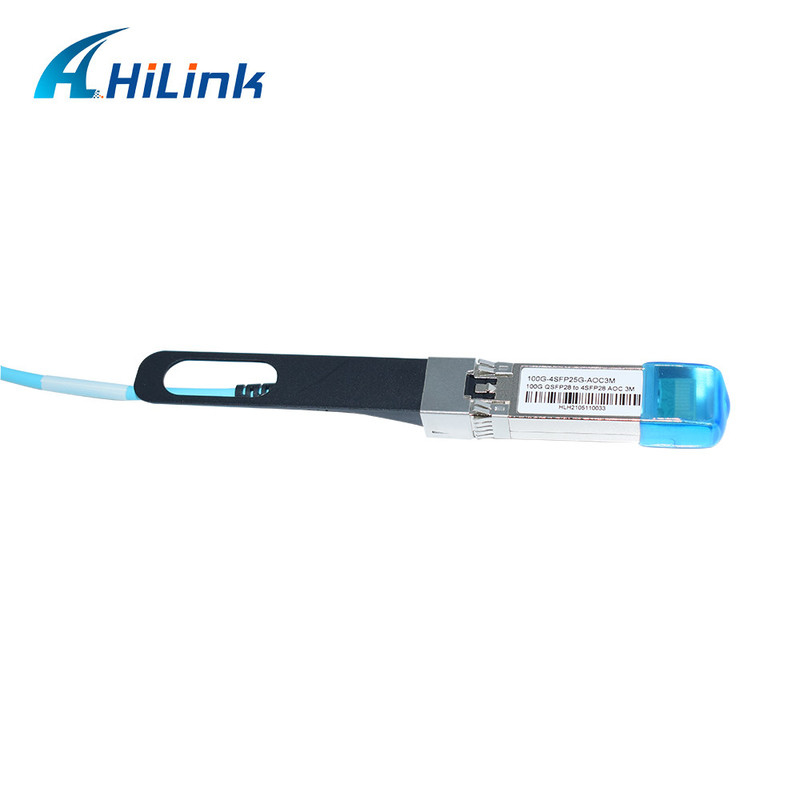

Product Picture:
Mechanical Dimensions:
What we supply:
We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+,QSFP28, SFP28, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules.
Other Cables:
FAQ:
Q:Do you sell second-hand products?
A:No.All our products are brand new,we never use secont-hand components.
Q:What payment terms do you accept?
A:T/T,Paypal,Western Union are acceptable.
Q:What are the shipping ways can you offer?
A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.
Q:Do your products come with warranty?
A:Yes,We provide 3 years warranty for all our products from the date of shipment.
Q:How to place an order?
A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.
