10G Media Converter 1 SFP+ Port and 1 RJ45 Port 100/1000Base-T 2.5/5/10GBase-T Auto

10G Media Converter 1 SFP+ Port and 1 RJ45 Port 100/1000Base-T 2.5/5/10GBase-T Auto

2.5/5/10GBase-T 10G Media Converter

100/1000Base-T 10G Media Converter

1 SFP+ Port 10G Media Converter

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL-10G-media converter

Contact Us
Request A Quote
Product Details
Equipment Function:
10G Media Comverter
Transmission Speed:
100/1000Base-T 2.5/5/10GBase-T Auto
Interface Type:
SFP+ And Rj45
Distance:
300M-80KM
Operating Temperature:
0~+60℃
Standalone:
DC 12V
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Carton box, Retail box, Or by required
Delivery Time
1-6 days
Payment Terms
L/C, T/T, Western Union, Paypal
Supply Ability
3000 pcs per Week
Product Description

10G Media Converter 1 SFP+ Port and 1 RJ45 Port 100/1000Base-T 2.5/5/10GBase-T Auto




General:

          Fiber converter support two types of media network connections, such as 10GBase-T and 10GBase-R. Designed with 10Gbase Ethernet PHY chip, it can smoothly connect two types of network segments. The transceiver can be used as a stand-alone unit or as an embedded module in a 19 "converter rack for use in the central wiring room. The production of the product is carried out completely in accordance with the standard process,which effectively guarantees the reliability and safety of the product.

         This series of products can realize the conversion of data signals in two different transmission media of twisted pair and optical fiber in the new high-speed Ethernet optical fiber network, meeting the needs of long-distance and high-speed Ethernet users, and is ideal for users of telecommunications, broadcasting, and broadband networks. Fiber optic transmission equipment.




Features:

Copper port can adapt to parallel/crossover connection;

IEEE802.3x flow control supporting full duplex;

Support half-duplex back pressure flow control;

Optical wavelength 850nm, 1310nm, 1550nm optional;

Can work under the temperature of 0~60;




Applications:

10G Media Converter 1 SFP+ Port and 1 RJ45 Port 100/1000Base-T 2.5/5/10GBase-T Auto 0



 Characteristic:

10GBaseFX

Multimode

Single mode

wavelength

850 nm

1310

Maximum transmit

1 dBm

0 dBm

Minimum transmit

-6 dBm

-6 dBm

Receiving sensitivity

-12 dBm

-13 dBm

Link budget

6 dBm

7 dBm

Typical distance

   300m

10 km

Saturation

-3 dBm

-3 dBm

50/125um, 800 MHz*km

9/125 um

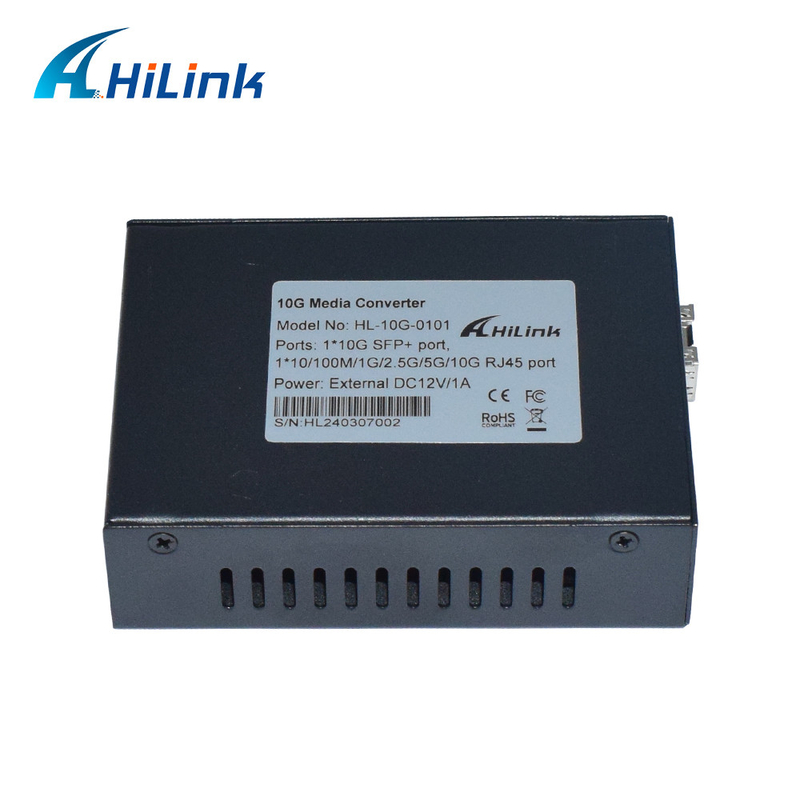

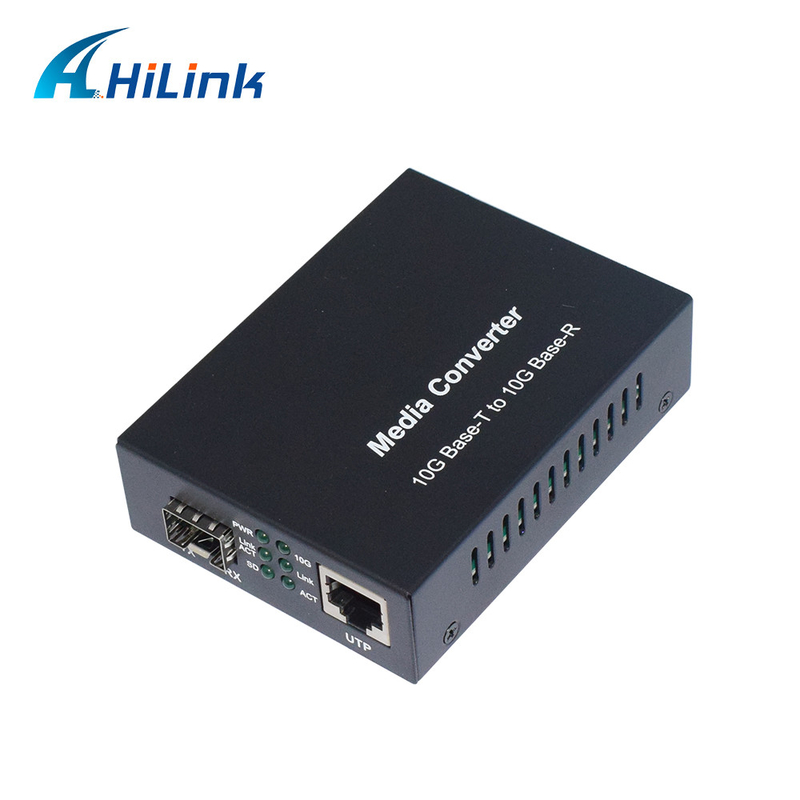

Product Show:

10G Media Converter 1 SFP+ Port and 1 RJ45 Port 100/1000Base-T 2.5/5/10GBase-T Auto 110G Media Converter 1 SFP+ Port and 1 RJ45 Port 100/1000Base-T 2.5/5/10GBase-T Auto 210G Media Converter 1 SFP+ Port and 1 RJ45 Port 100/1000Base-T 2.5/5/10GBase-T Auto 310G Media Converter 1 SFP+ Port and 1 RJ45 Port 100/1000Base-T 2.5/5/10GBase-T Auto 4
