Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL- QSFP28-FR1
100GBASE-FR1 Single Lambda QSFP28 PAM4 1310nm 2km Optical Transceiver Module
PRODUCT FEATURES
QSFP28 MSA compliant
Supports 53.125Gbaud
100G Lambda MSA 100G-FR Specification compliant
Up to 2km transmission on single mode fiber (SMF) with FEC
Operating case temperature: 0 to 70℃
4x25G electrical interface (OIF CEI-28G- VSR)
Maximum power consumption 4.5W
LC duplex connector
RoHS compliant
Applications
Data Center Interconnect
100G Ethernet
Enterprise networking
General Description
This product is a transceiver module designed for 2km optical communication applications. The module incorporates one channel optical signal, on 1310nm center wavelength, operating at 50Gbaud data rate. The transmitter path incorporates an EML Driver and a cooled EML together. On the receiver path, the input optical signal is coupled to a Pin photodiode detector. A DSP based gearbox is used to convert 4x25Gbps NRZ signals to 1x50Gbaud PAM4 signal. Also a 4-channel retimer and FEC block are integrated in this DSP. The electrical interface is compliant with IEEE 802.3cd and QSFP28 MSA in the transmitting and receiving directions, and optical interface is compliant to IEEE 802.3cd and 100G Lambda MSA with Duplex LC connector. The module has a maximum power consumption of 3.5W.
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

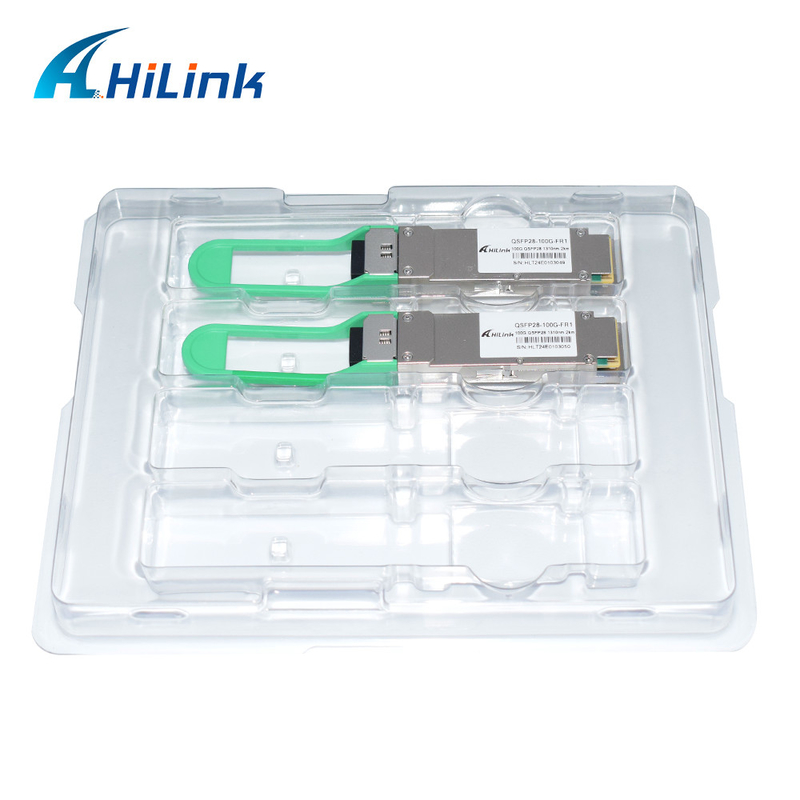

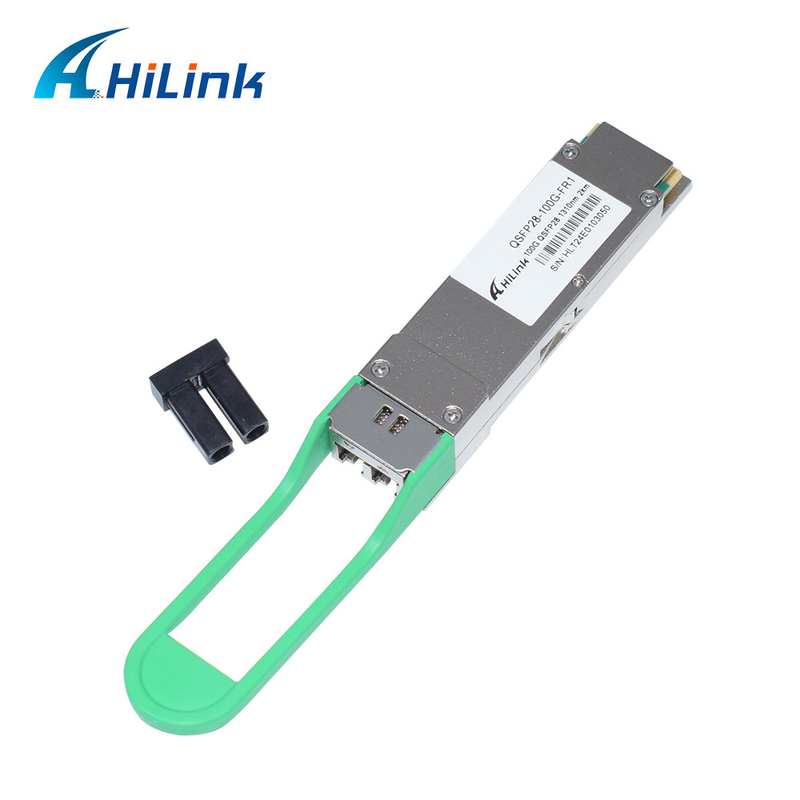

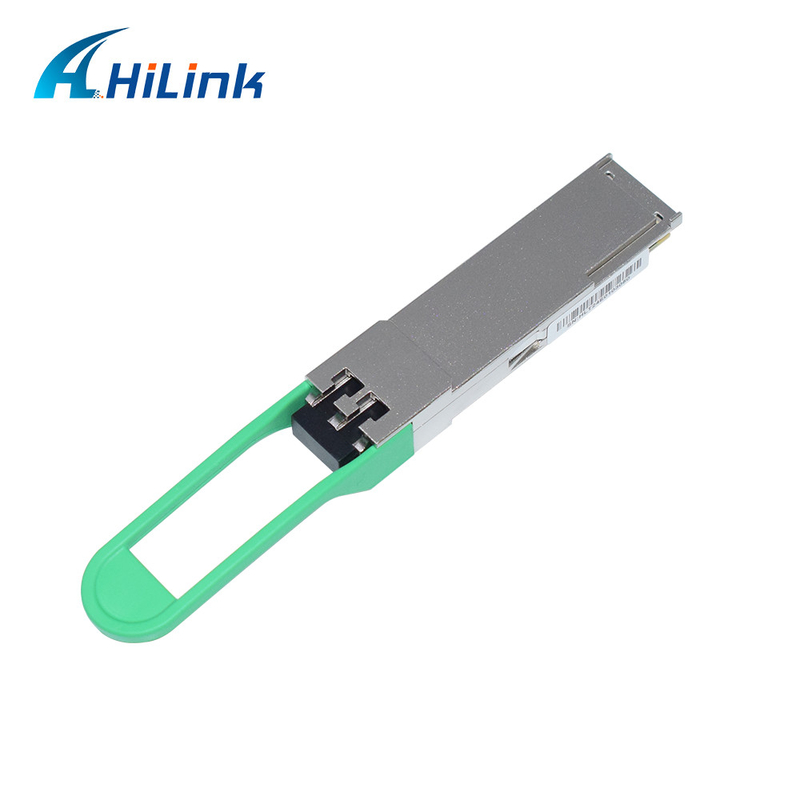

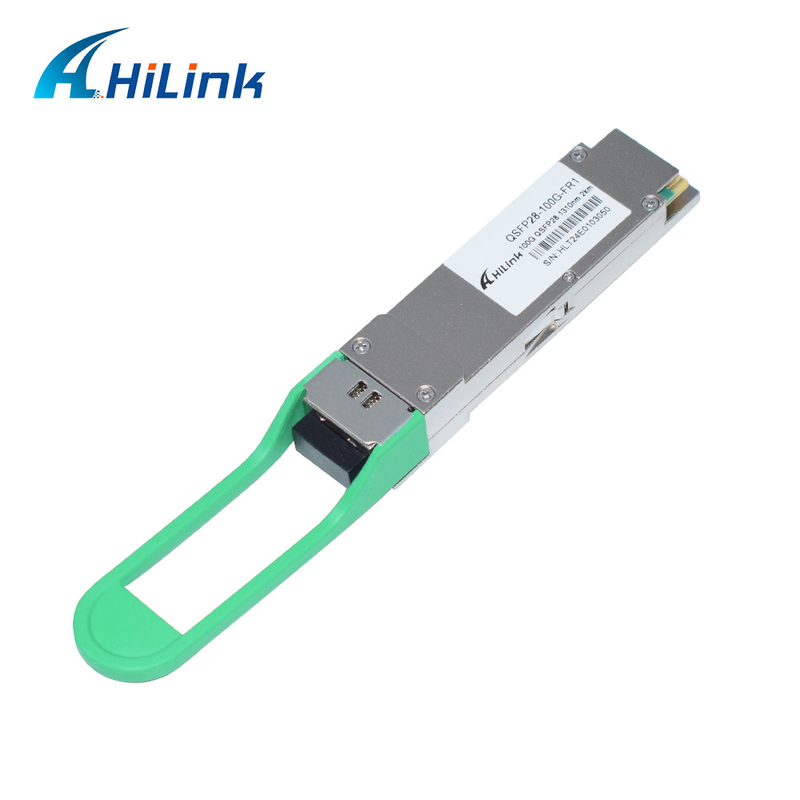

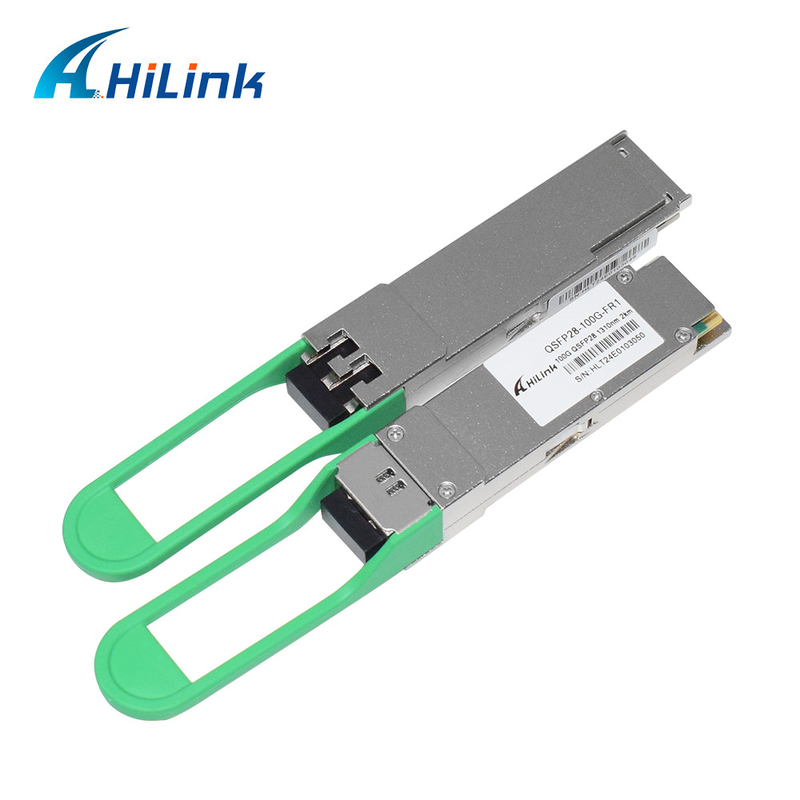

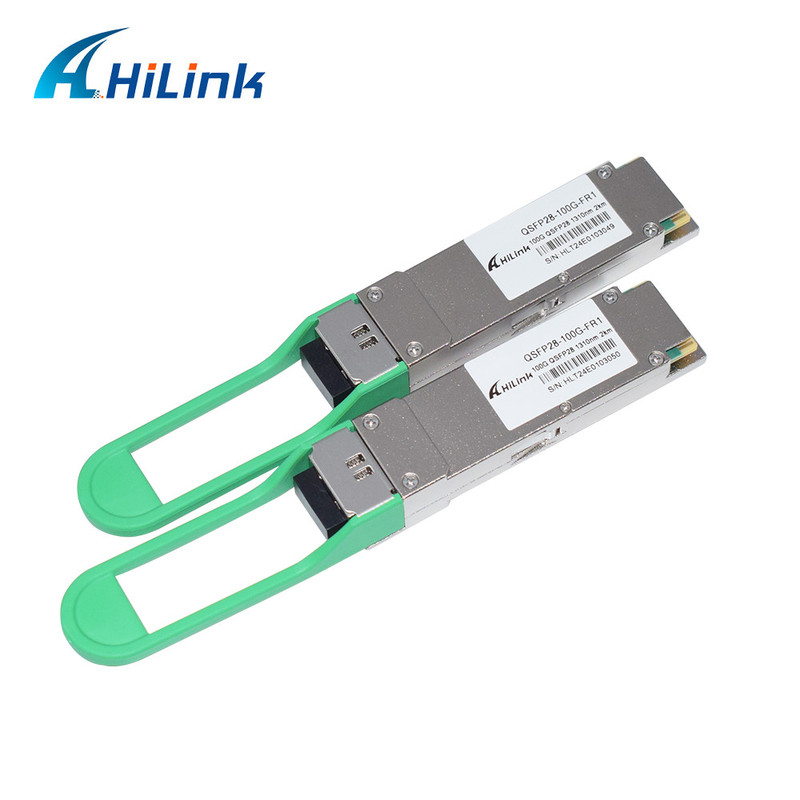

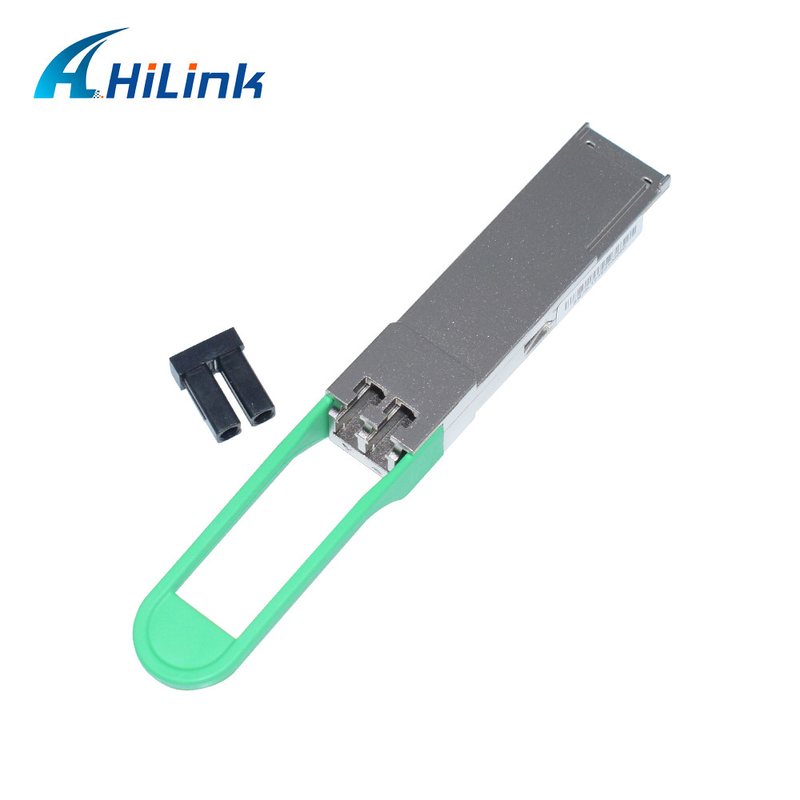

Product Picture Show:
OEM and ODM
OEM/ODM order is available.
Guarantee
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
What we supply
We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with most of brands. If more details, please contact us.
International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.
1.Do you sell second-hand products?
No.All our products are brand new,we never use second-hand components.
2.What devices can your products compatible with?
Our products are compatible with mo
3.Do your products come with warranty?
Yes,We provide 3 years warranty for all our products from the date of shipment.
4.What’s the MOQ?
To achieve customer`s satisfaction,we accept sample order,even one Piece.
5.What payment terms do you accept?
T/T,Paypal,Western Union are acceptable.
6.How about Shipment?
Generally we support the International Express: DHL, FedEx,EMS,TNT, UPS and so on. It
takes 3-7 days.
7.How to get the Tracking information?
Our sales staff that you placed your order with,he/she will provide you with tracking information by email and over the phone.
