Place of Origin:
China
Brand Name:
Hilink
Certification:
CE FCC Rohs
Model Number:
HL-8CH-CWDM-DEMUX
Video
8CH CWDM 1270nm-1410nm 8Channel CWDM DEMUX LGX Package CWDM Devices
General:
100GHz CWDM Mux/Demux Module over a single or duplex single mode fiber is quite common to extend your overall bandwidth. It offer high stability and reliability, and has small package size. Its operating wavelength is from 1270nm to 1610nm(1261nm-1611nm) which totally offer 18 channels with 20nm channel spacing.
Features:
Low Insertion Loss
High Isolation
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength:From 1260nm to 1620nm
Wide Operating Temperature:From -40°C to 85°C
High Reliability and Stability
Applications:
CWDM System
PON Networks
CATV Links
WDM Network

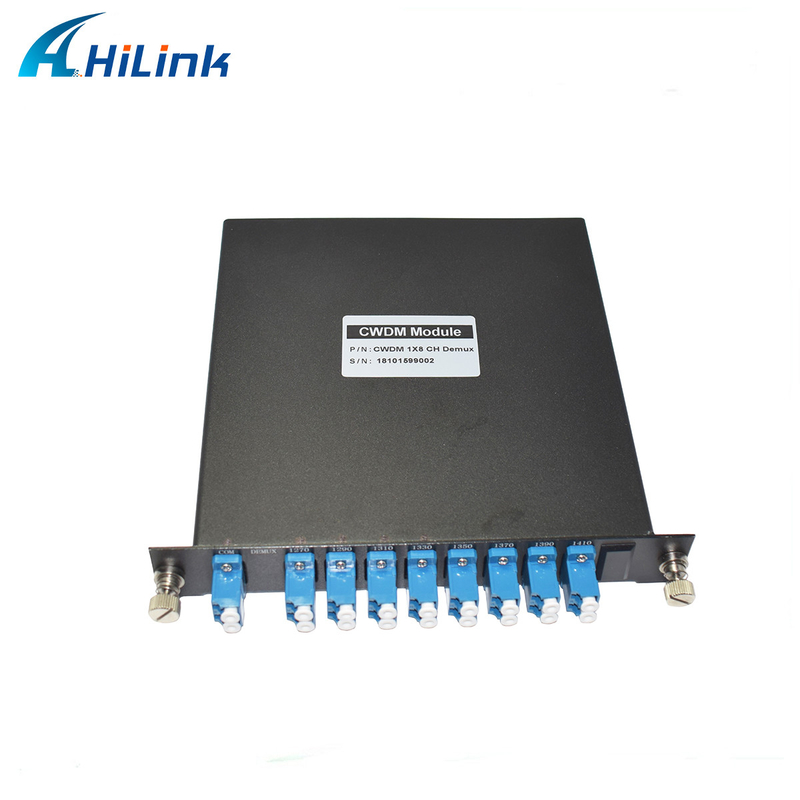

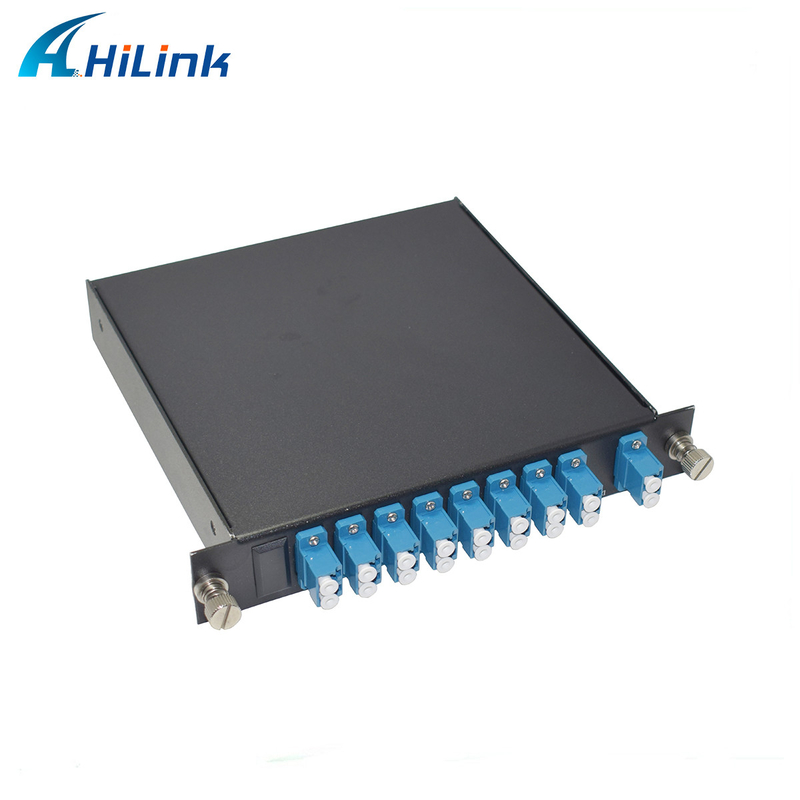

Product picture show
Packaging type:
ABS Box:
Plastic Box:
LGX Box:
1U Rack Mount:
Ordering Information:
|
CWDM Configuration |
Number of Channels |
1st Channel |
Fiber Type |
Fiber Length | In/Out Connector |
| M=Mux D=Demux O=OADM |
02=2Channel
08=8 Channel 16=16 Channel 18=18 Channel N=N Channel …… |
27=1270nm 47=1470nm 49=1490nm …… 61=1610nm SS=special |
1=Bare fiber 2=900um Loose tube 3=2mm Cable 4=3mm Cable |
1=1m 2=2m S=Specify |
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=LC/UPC …… |
Company Information:
FAQ:
Q: Do you sell second-hand products?
A: No.All our products are brand new,we never use secont-hand components.
Q: Do your products come with warranty?
A: Yes,We provide 3 years warranty for all our products from the date of shipment.
Q: How to place an order?
A:1> Order details confirmed,please tell us the model and quantity you need.
2> Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3> Confirm and ship the goods, then tracking number will be sent to you promptly.
4> We will help to track your goods until you receive them safely.
As we have various kinds of products,if you can't find the correct item you need,please send us inquiry.We will follow up shortly.
Enclosure type: Plastic ABS Box or Rack Mounted
