Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-SFP-1.25G-180KM
1.25G 1000BASE-ZX SFP 1550nm 180KM DOM Duplex LC SMF Transceiver Module
General:
Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0 .They are RoHS compliant and lead-free.
Features:
Up to 1.25Gb/s dual data links
Applications:
Gigabit Ethernet
1.06 Gb/s Fibre Channel
1000Base Transceiver Series:
| GLC-SX | 100BASE-SX SFP 850nm LC 550M |
| GLC-LX/LH | 100BASE-LH SFP 1310nm LC 10KM |
| GLC-EX-1310 | 100BASE-EX SFP 1310nm LC 40KM |
| GLC-EX-1550 | 100BASE-EX SFP 1550nm LC 40KM |
| GLC-ZX-80 | 100BASE-ZX SFP 1550nm LC 80KM |
| GLC-ZX-120 | 100BASE-ZX SFP 1550nm LC 120KM |
| GLC-ZX-160 | 100BASE-ZX SFP 1550nm LC 160KM |
| GLC-ZX-200 | 100BASE-ZX SFP 1550nm LC 200KM |
Guarantee:
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
What we supply:
We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules.

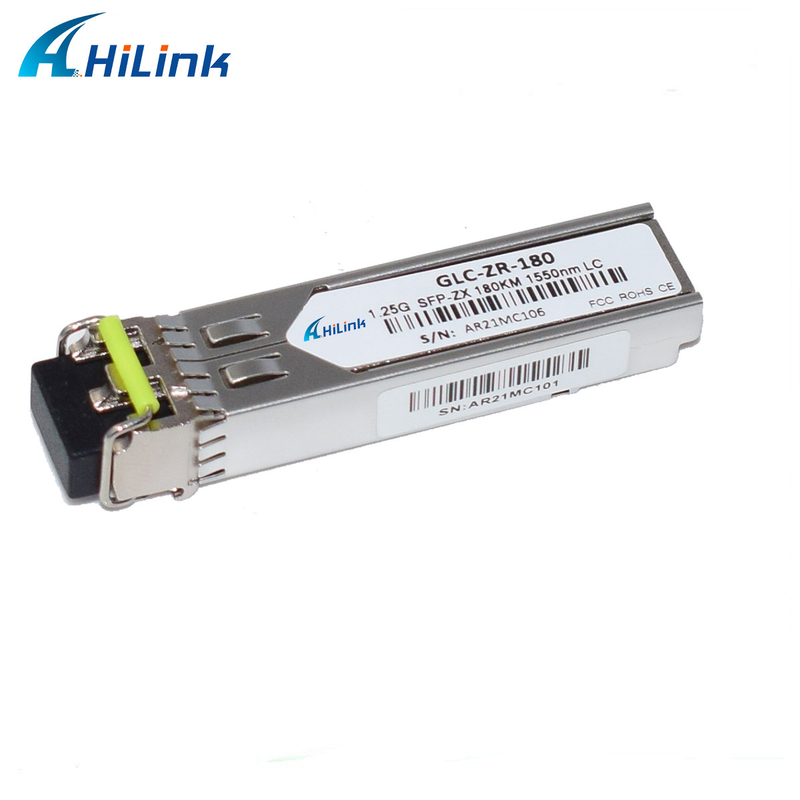

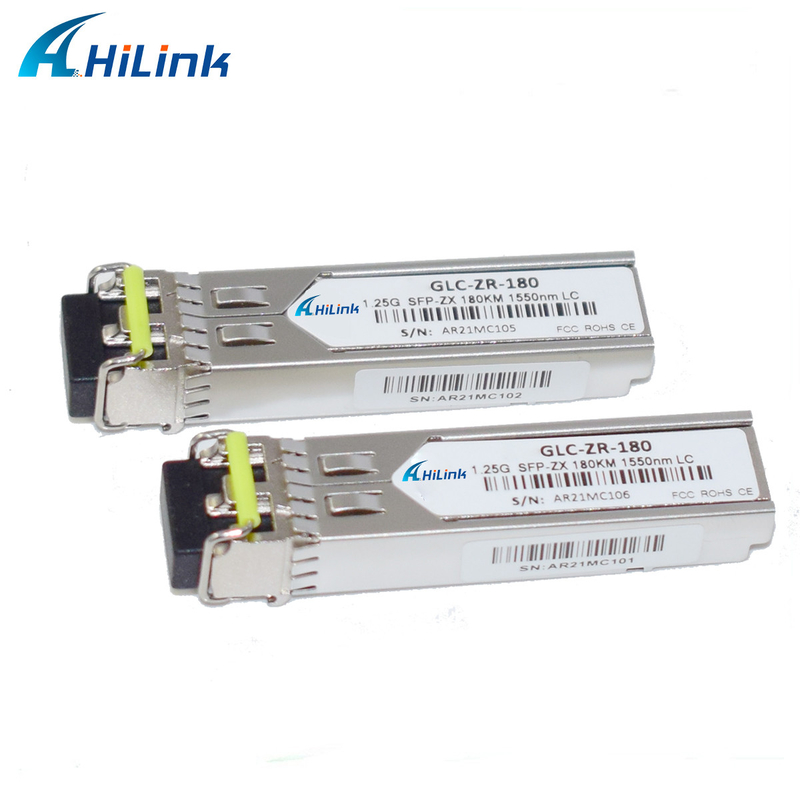

Product picture show:
Optical Characteristics (TOP=25°C, Vcc=3.3 Volts)
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
| Transmitter Section: | ||||||
| Center Wavelength | λc | 1530 | 1550 | 1570 | nm | |
| Spectral Width | σ | 1 | nm | |||
| Side Mode Suppression Ratio | SMSR | 30 | dB | |||
| Optical Output Power | Pout | +3 | +7 | dBm | 1 | |
| Extinction Ratio | ER | 9 | dB | |||
| Optical Rise/Fall Time | tr / tf | 260 | ps | 2 | ||
| Relative Intensity Noise | RIN | -120 | dB/Hz | |||
| Output Eye Mask | Compliant with IEEE802.3 z (class 1 laser safety) | |||||
| Receiver Section: | ||||||
| Optical Input Wavelength | λc | 1270 | 1610 | nm | ||
| Receiver Overload | Pol | -7 | dBm | 4 | ||
| RX Sensitivity | Sen | -37 | dBm | 4 | ||
| RX_LOS Assert | LOS A | -46 | dBm | |||
| RX_LOS De-assert | LOS D | -39 | dBm | |||
| RX_LOS Hysteresis | LOS H | 0.5 | dB | |||
| General Specifications: | ||||||
| Data Rate | BR | 1.25 | Gb/s | |||
| Bit Error Rate | BER | 10-12 | ||||
| Max. Supported Link Length on 9/125μm SMF@1.25Gb/s | LMAX | 200 | km | |||
| Total System Budget | LB | 40 | dB | |||
Notes:
1. The optical power is launched into SMF.
2. 20-80%.
3. Jitter measurements taken using Agilent OMNIBERT 718 in accordance with GR-253.
4. Measured with PRBS 27-1 at 10-12 BER
.
Mechanical Specifications:
