HL-SFP-1.25G-SX
1.25G 850nm 550M GLC-SX-MM 1000BASE LC DOM Optical Module
General:
Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with 1.25Gb/s 1000Base-SX Ethernet and1.063Gb/s Fiber Channel. They are RoHS compliant and lead-free.
Features:
Hot-pluggable SFP footprint
850nm VCSEL laser transmitter
RoHS compliant and Lead Free
Up to 550m on 50/125µm MMF,500m on 62.5/125µm MMF
Metal enclosure for lower EMI
Single +3.3V power supply
Low power dissipation <600mW
Commercial operating temperature range:0°C to +70°C
Applications:
1.25Gb/s 1000Base-LX Ethernet
1.06 Gb/s Fibre Channel
Gigabit Ethernet Switches and Routers
Fiber Channel Switch Infrastructure
1000Base Transceiver Series:
| GLC-SX | 100BASE-SX SFP 850nm LC 550M |
| GLC-LX/LH | 100BASE-LH SFP 1310nm LC 10KM |
| GLC-EX-1310 | 100BASE-EX SFP 1310nm LC 40KM |
| GLC-EX-1550 | 100BASE-EX SFP 1510nm LC 40KM |
| GLC-ZX | 100BASE-ZX SFP 1550nm LC 80KM |
| GLC-ZX-120 | 100BASE-ZX SFP 1510nm LC 120KM |
| GLC-ZX-160 | 100BASE-ZX SFP 1550nm LC 160KM |
| GLC-ZX-200 | 100BASE-ZX SFP 1510nm LC 200KM |
Guarantee:
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
What we supply:
We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules.

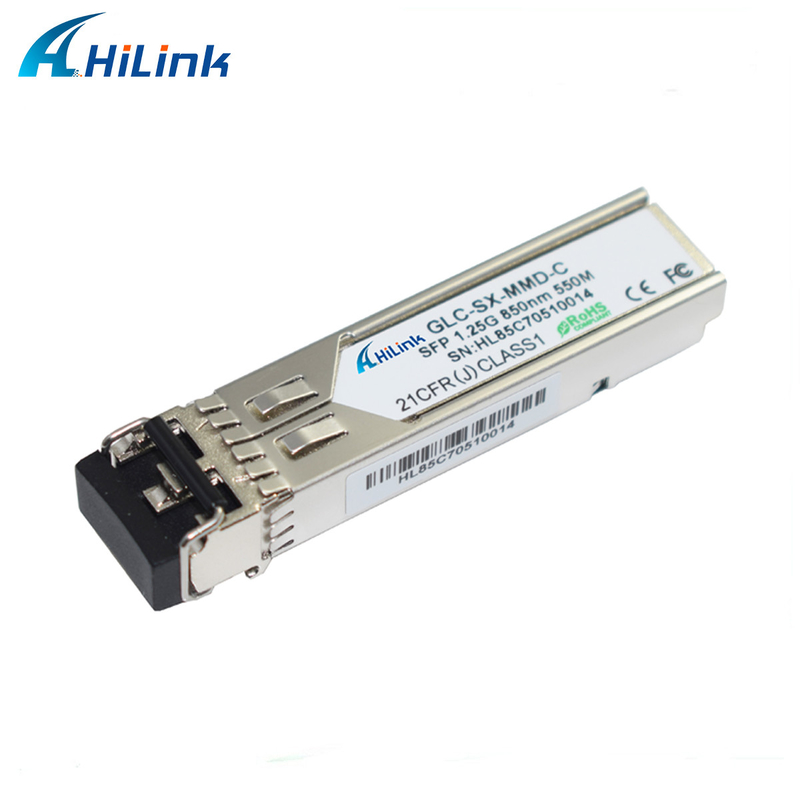

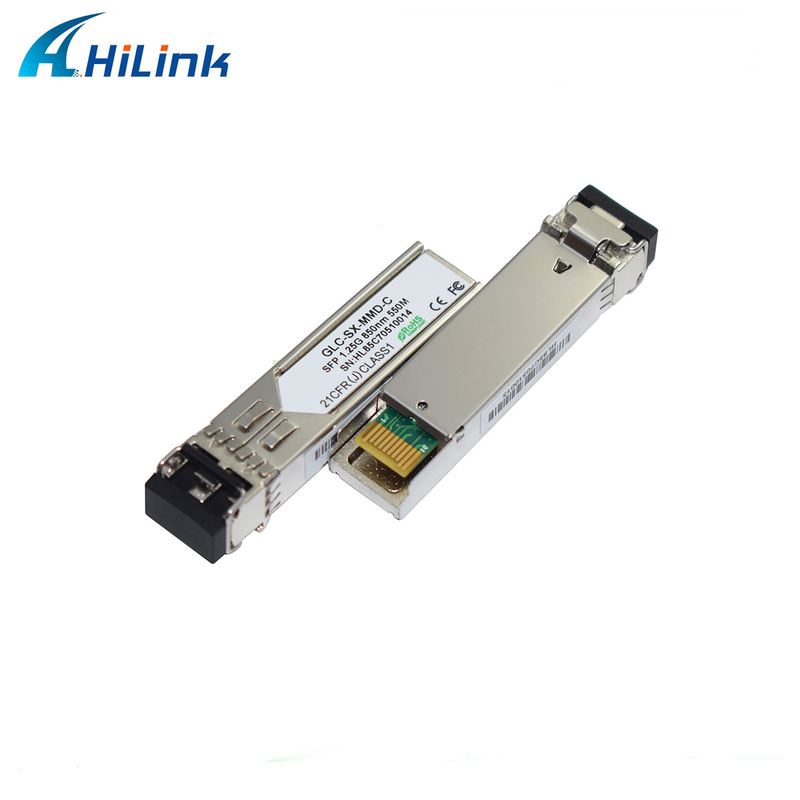

Product picture show:
Mechanical Specifications:
FAQ:
Q:Do you sell second-hand products?
A:No.All our products are brand new,we never use secont-hand components.
Q:What payment terms do you accept?
A:T/T,Paypal,Western Union are acceptable.
Q:What are the shipping ways can you offer?
A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.
Q:Do your products come with warranty?
A:Yes,We provide 3 years warranty for all our products from the date of shipment.
Q:How to place an order?
A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.
As we have various kinds of products,if you can't find the correct item you need.Please send us inquiry.We will follow up shortly.
Optical Characteristics (TOP=25°C, Vcc=3.3 Volts)Os
| Parameter | Symbol | Min | Typ | Max | Unit | Ref. | |
| Transmitter | |||||||
| Output Opt. Power | PO | -9 | - | -3 | dBm | 1 | |
| Optical Wavelength | λ | 830 | 850 | 860 | nm | ||
| Spectral Width | σ | - | - | 0.85 | nm | ||
| Side Mode Suppression Ratio | SMSR | 30 | - | - | dB | ||
| Optical Rise/Fall Time | tr/tf | - | - | 175 | ps | 2 | |
| Deterministic Jitter Contribution | TXΔDJ | - | - | 0.07 | UI | 3 | |
| Total Jitter Contribution | TXΔTJ | - | - | 0.007 | UI | ||
| Optical Extinction Ratio | ER | 9 | 10 | - | dB | ||
| Receiver | |||||||
| Average Rx Sensitivity | RSENS | - | - | -20 | dBm | 4 | |
| Maximum Received Power | RXMAX | -2 | - | - | dBm | ||
| Optical Center Wavelength | λC | 770 | 850 | 860 | nm | ||
| LOS De-Assert | LOSD | - | - | -24 | dBm | ||
| LOS Assert | LOSA | -35 | - | - | dBm | ||
| LOS Hysteresis | 0.5 | - | - | dB | |||
| Parameter | Symbol | Min | Typ | Max | Unit | Ref. |
| Transmitter | ||||||
| Output Opt. Power | PO | 0 | - | +5 | dBm | 1 |
| Optical Wavelength | λ | 1540 | - | 1570 | nm | |
| Spectral Width | σ | - | - | 1 | nm | |
| Optical Rise/Fall Time | tr/tf | - | 170 | 260 | ps | 2 |
| Deterministic Jitter Contribution | TXΔDJ | - | - | 0.07 | UI | 3 |
| Total Jitter Contribution | TXΔTJ | - | - | 0.007 | UI | |
| Optical Extinction Ratio | ER | 9 | - | - | dB | |
| Receiver | ||||||
| Average Rx Sensitivity | RSENS | - | - | -32 | dBm | 4 |
| Maximum Received Power | RXMAX | -9 | - | - | dBm | |
| Optical Center Wavelength | λC | 1270 | - | 1600 | nm | |
| LOS De-Assert | LOSD | - | - | -32 | dBm | |
| LOS Assert | LOSA | -45 | - | - | dBm | |
| LOS Hysteresis | 0.5 | - | - | dB |
Notes:
1. Class 1 Laser Safety.
2. Unfiltered, 20-80%.
