HL-QSFP-40G-ZR4
Video
HL-40G-ZR4-80KM 40Gb/s 80km QSFP+ Transceiver Hot Pluggable Duplex LC Connector Single mode
Product descriptions
The HL-40G-ZR4-80KM is a transceiver module designed for 80km optical communication applications. The design is compliant to 40GBASE-ZR4 of the IEEE P802.3ba standard. The module converts 4 inputs channels of 10Gb/s electrical data to 4 DWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 DWDM channels signals, and converts them to 4 channel output electrical data.
The central wavelengths of the 4 DWDM channels as members of the DWDM wavelength grid defined in ITU-T G694.2. It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.
The module operates from a single +3.3V power supply and LVCMOS/LVTTL global control signals such as Module Present, Reset, Interrupt and Low Power Mode are available with the modules. A 2-wire serial interface is available to send and receive more complex control signals and to obtain digital diagnostic information. Individual channels can be addressed and unused channels can be shut down for maximum design flexibility.
The HL-40G-ZR4-80KM is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. The module offers very high functionality and feature integration, accessible via a two-wire serial interface.
Product features
4 lanes MUX/DEMUX design
100GHz ITU Grid, C Band DWDM EML transmitter, APD photo-detector
Up to 11.2Gbps per channel bandwidth
Aggregate bandwidth of > 40Gbps
Duplex LC connector
Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-ZR4
QSFP MSA compliant
Up to 80 km transmission
Compliant with QDR/DDR Infiniband data rates
Single +3.3V power supply operating
Built-in digital diagnostic functions
Temperature range 0°C to 70°C
RoHS Compliant Part
Applications
QSFP Series
| Part Number | Product Description | |
| HL-QSFP-40G-SR4 | QSFP+,40Gb/s, 40GBASE-SR4, MMF, 850nm, 150M | |
| HL-QSFP-40G-LR4 | QSFP+, 40Gb/s, 40GBASE-LR4, SMF, 1310nm, 10KM | |
| HL-QSFP-40G-ER4 | QSFP+, 40Gb/s, 40GBASE-ER4, SMF, 1310nm, 40KM | |
| HL-QSFP28-100G-SR4 | QSFP+, 100Gb/s, 100GBASE-SR4, MMF, 850nm, 150M | |
| HL-QSFP28-100G-LR4 | QSFP+, 100Gb/s, 100GBASE-LR4, SMF, 1310nm, 10KM | |
| HL-QSFP28-100G-ER4 | QSFP+, 100Gb/s, 100GBASE-ER4, SMF, 1310nm, 40KM | |
| HL-QSFP28-100G-ZR4 | QSFP+, 100Gb/s, 100GBASE-ZR4, SMF, 1310nm, 80KM | |

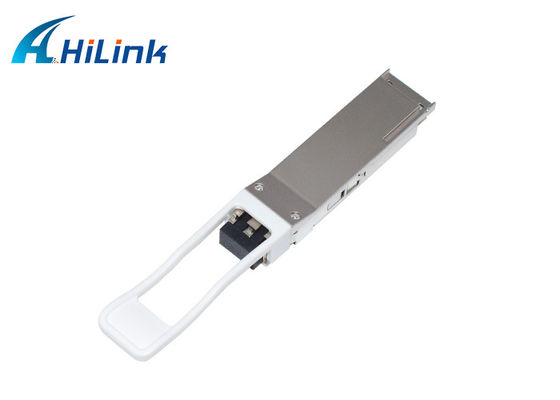

Product picture shows
