Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
100G QSFP28 Bidi BX10

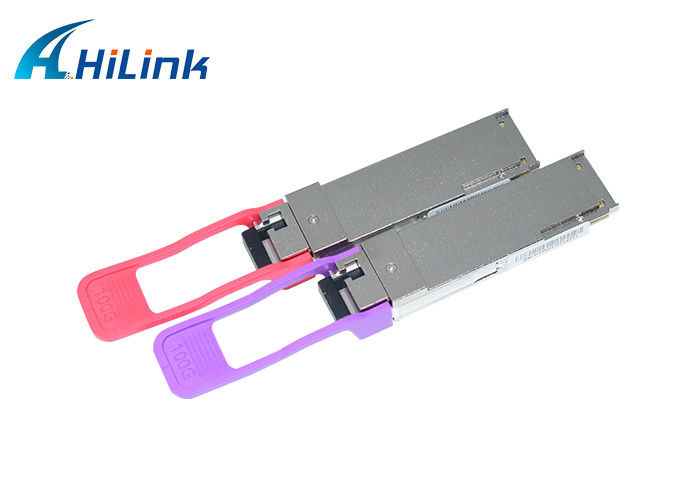

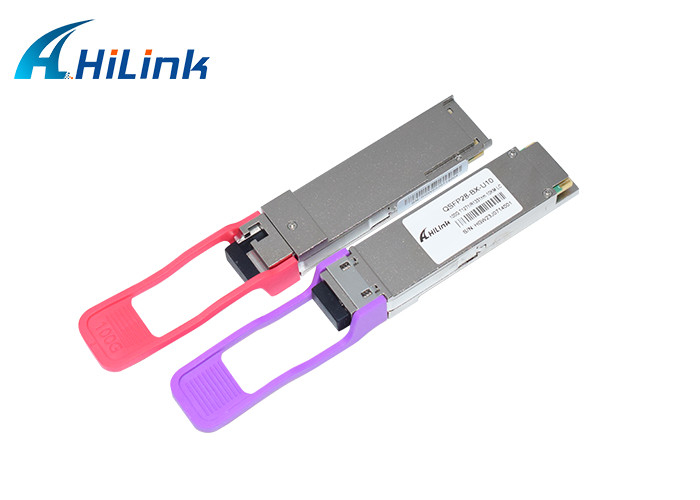

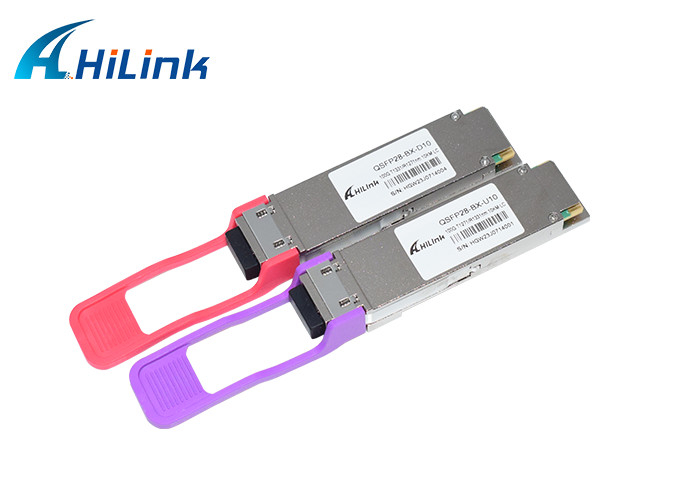

100G QSFP28 PAM4 10km LR1 BIDI 1271/1331nm, EML+PIN, Single mode Optical Transceiver
High Speed Fiber Network 100GBase-BX10 10km
100Gbps QSFP+
Description
| Model | QSFP28-BD-BX20-100G | Vendor Name | Hilink |
| Connector Type | QSFP28 | Max Data Rate | 100Gbps |
| Cable Type | SMF | Optical Components | 4x VCSEL |
| Interface | LC | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| HTS-Harmonized Code | 8544700000 | Distance | 10KM |
100G QSFP Transceiver
| Part Number | Product Description |
| HL-QSFP-SR4 | 850nm, 40G, 150m, 0ºC ~ +70ºC |
| HL-QSFP-CSR4 | 850nm, 40G, 400m, 0ºC ~ +70ºC |
| HL-QSFP-IR4 | 1310nm, 40G, 2KM, 0ºC ~ +70ºC |
| HL-QSFP-LR4 |
1310nm, 40G, 10km, 0ºC ~ +70ºC |
Applications:
Gigabit Ethernet
Fiber Channel
WDM Application
Pics:
B/D Transceiver Series:
| GLC-BX-D20 SC | 1.25G DFB Tx1490nm/Rx1310nm 20km LC/SC BIDI |
| GLC-BX-U20 SC | 1.25G FP Tx1310nm/Rx1490nm 20km LC/SC BIDI |
| GLC-BX-U40 SC | 1.25G DFB Tx1310nm/Rx1490nm 40km LC/SC BIDI |
| GLC-BX-D40 SC | 1.25G DFB Tx1490nm/Rx1310nm 40km LC/SC BIDI |
| GLC-BX-U70 SC | 1.25G DFB Tx1490nm/Rx1550nm 70km LC/SC BIDI |
| GLC-BX-D70 SC | 1.25G DFB Tx1550nm/Rx1490nm 70km LC/SC BIDI |
| GLC-BX-U80 | 1.25G DFB Tx1490nm/Rx1550nm 80km LC/SC BIDI |
| GLC-BX-D80 | 1.25G DFB Tx1550nm/Rx1490nm 80km LC/SC BIDI |
| GLC-BX-U120 | 1.25G DFB Tx1490nm/Rx1550nm 120km LC/SC BIDI |
| GLC-BX-D120 | 1.25G DFB Tx1550nm/Rx1490nm 120km LC/SC BIDI |
| GLC-FE-100BX-U | 100BASE-BXU SFP Tx1310nm/Rx1550nm LC/SC 10km |
| GLC-FE-100BX-D | 100BASE-BXD SFP Tx1510nm/Rx1310nm LC/SC 10km |
| GLC-FE-100BX-U20 | 100BASE-BXU SFP Tx1310nm/Rx1550nm LC/SC 20km |
| GLC-FE-100BX-D20 | 100BASE-BXD SFP Tx1510nm/Rx1310nm LC/SC 20km |
| GLC-FE-100BX-U40 | 100BASE-BXU SFP Tx1310nm/Rx1550nm LC/SC 40km |
| GLC-FE-100BX-D40 | 100BASE-BXD SFP Tx1510nm/Rx1310nm LC/SC 40km |
| GLC-FE-100BX-U80 | 100BASE-BXU SFP Tx1310nm/Rx1550nm LC/SC 80km |
| GLC-FE-100BX-D80 | 100BASE-BXD SFP Tx1510nm/Rx1310nm LC/SC 80km |
