Place of Origin:
Guangdong, China
Brand Name:
Hilink
Certification:
CE Rohs
Model Number:
QSFP-40G-ZR4 80KM EML APD
40G QSFP+ Module SMF QSFP+ ZR4 80KM 1550NM Duplex LC Connector Compatible With Generic EML+ APD
QSFP-40G-ZR4 80KM EML APD 80km 1550, LC EML APD DWDM X4
Description:
The HL-40G-ZR4-80KM is a transceiver module designed for 80km optical communication applications. The design is compliant to 40GBASE-ZR4 of the IEEE P802.3ba standard. The module converts 4 inputs channels of 10Gb/s electrical data to 4 DWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 DWDM channels signals, and converts them to 4 channel output electrical data.
The central wavelengths of the 4 DWDM channels as members of the DWDM wavelength grid defined in ITU-T G694.2. It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.
Features:
4 lanes MUX/DEMUX design
100GHz ITU Grid, C Band DWDM EML transmitter, APD photo-detector
Up to 11.2Gbps per channel bandwidth
Aggregate bandwidth of > 40Gbps
Duplex LC connector
Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-ZR4
QSFP MSA compliant
Up to 80 km transmission
Compliant with QDR/DDR Infiniband data rates
Single +3.3V power supply operating
Built-in digital diagnostic functions
Temperature range 0°C to 70°C
RoHS Compliant Part
Applications:
Rack to rack
Data centers Switches and Routers
Metro networks
Switches and Routers
40G BASE-EZR4

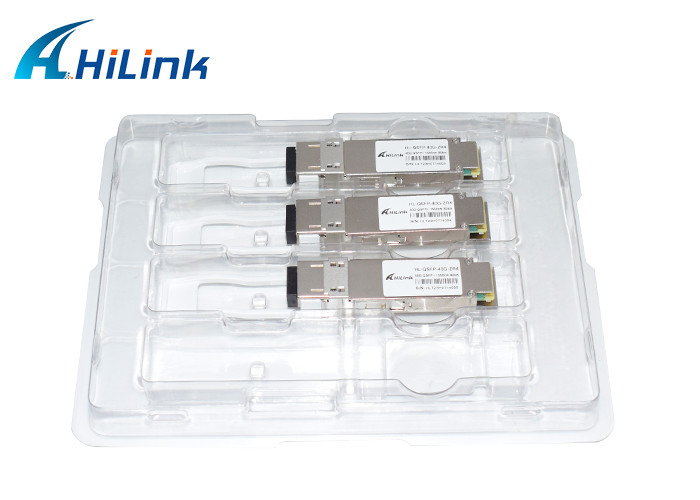

Real Photo Show:
Our Service
OEM/ODM order is available
We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
