Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-QSFP28-4XSFP28 100G-4X25G-AOC
100Gb/s QSFP28 to 4xSFP28 100G to 4x25G AOC 850nm Active Optical Cables OM3
General
The 100G QSFP28 to 4x 25G SFP28 Active Optical Cables (AOC) offer IT professionals a cost-effective interconnect solution for merging 100G QSFP28 and 25G SFP28 enabled host adapters, switches and servers.For typical applications, users can install this breakout or splitter cable between an available QSFP28 port on 100GE switch and feed up to 4 upstream SFP28 enabled 25GE switches. Each cable features a single SFF-8436 compliant QSFP28 connector rated for 103Gb/s on one end and 4 SFF-8431 complicant SFP28 connectors rated for 25.78Gb/s each on the other end.
Features
SFF-8436 compliant QSFP28 connector
4x SFF-8431 compliant SFP28 connectors
Hot-pluggable electrical interface
850nm VCSEL transmitter
PIN photo-detector receiver
Internal CDR circuits on both receiver and transmitter channels
Low power consumption < 2.5W (QSFP28) < 1W (SFP28)
Length up to 70m using OM3 MMF and 100m using OM4 MMF
Operating case temperature range 0°C to +70°C
All-metal housing for superior EMI performance
RoHS-6 compliant (lead free)
Application
IEEE 802.3bm 100GBASE-SR4
IEEE 802.3by 25GBASE-SR
InfiniBand SDR/DDR/QDR
High-Performance Computing (HPC) clusters
Servers, switches, storage and host card adapters
QSFP28 AOC 100G
| QSFP28 100G-Optical cable | |
| QSFP28-100G-AOC1M | QSFP28 to QSFP28, Active optical cable 1M |
| QSFP28-100G-AOC3M | QSFP28 to QSFP28, Active optical cable 3M |
| QSFP28-100G-AOC5M | QSFP28 to QSFP28, Active optical cable 5M |
| QSFP28-100G-AOC7M | QSFP28 to QSFP28, Active optical cable 7M |
| QSFP28-100G-AOC10M | QSFP28 to QSFP28, Active optical cable 10M |
| QSFP28-100G-AOC20M | QSFP28 to QSFP28, Active optical cable 20M |
| QSFP28-100G-AOC30M | QSFP28 to QSFP28, Active optical cable 30M |
| QSFP28-100G-AOC50M | QSFP28 to QSFP28, Active optical cable 50M |
| QSFP28-4SFP28 Optical cable | |
| QSFP28-4SFP2825G-AOC1M | QSFP28 to 4SFP28 Active optical cable 1M |
| QSFP28-4SFP2825G-AOC3M | QSFP28 to 4SFP28 Active optical cable 3M |
| QSFP28-4SFP2825G-AOC5M | QSFP28 to 4SFP28 Active optical cable 5M |
| QSFP28-4SFP2825G-AOC7M | QSFP28 to 4SFP28 Active optical cable 7M |
| QSFP28-4SFP2825G-AOC10M | QSFP28 to 4SFP28 Active optical cable 10M |

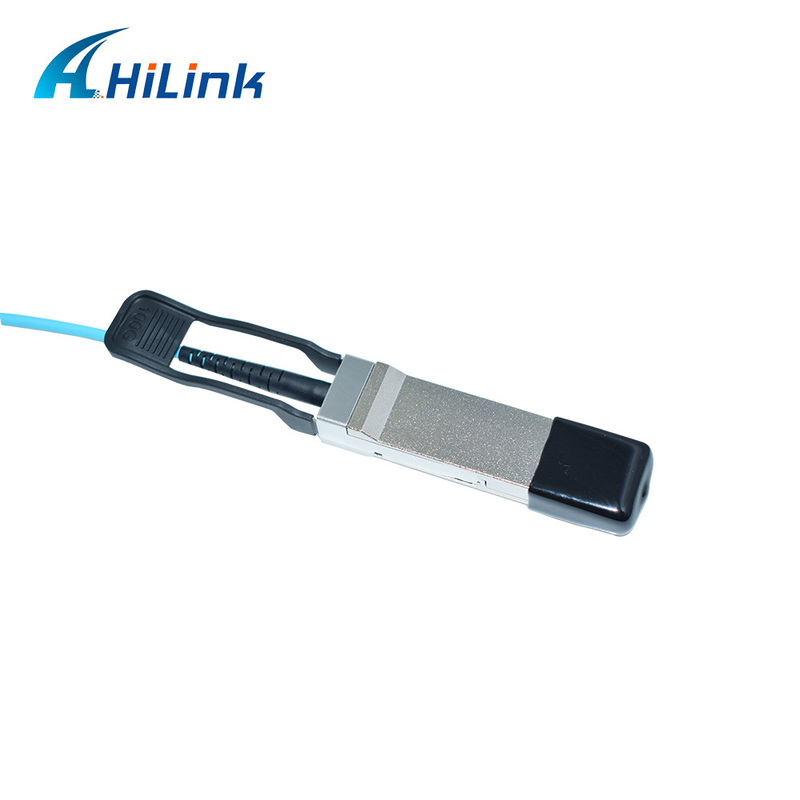

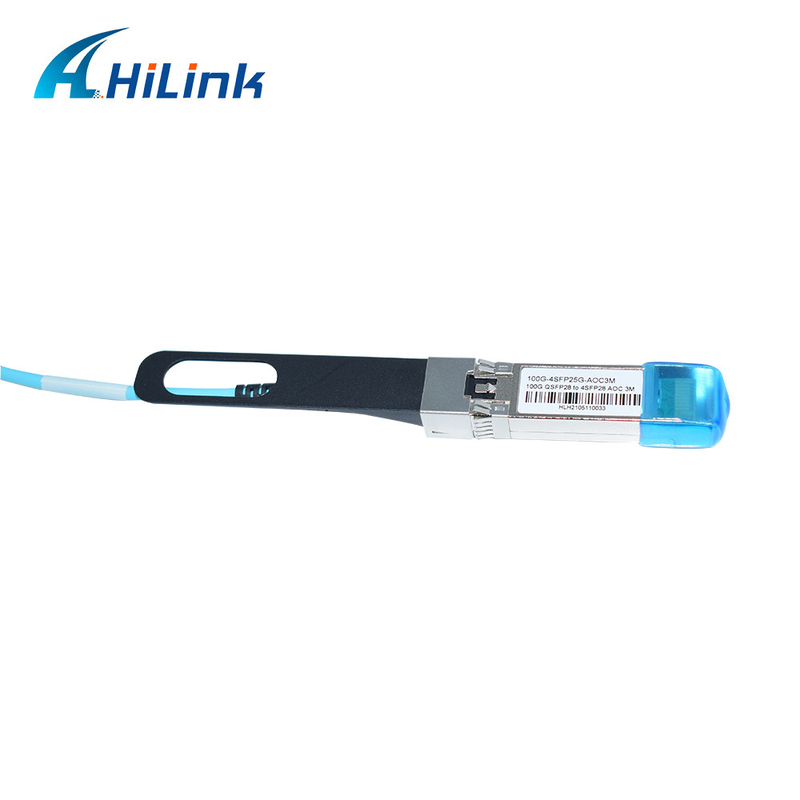

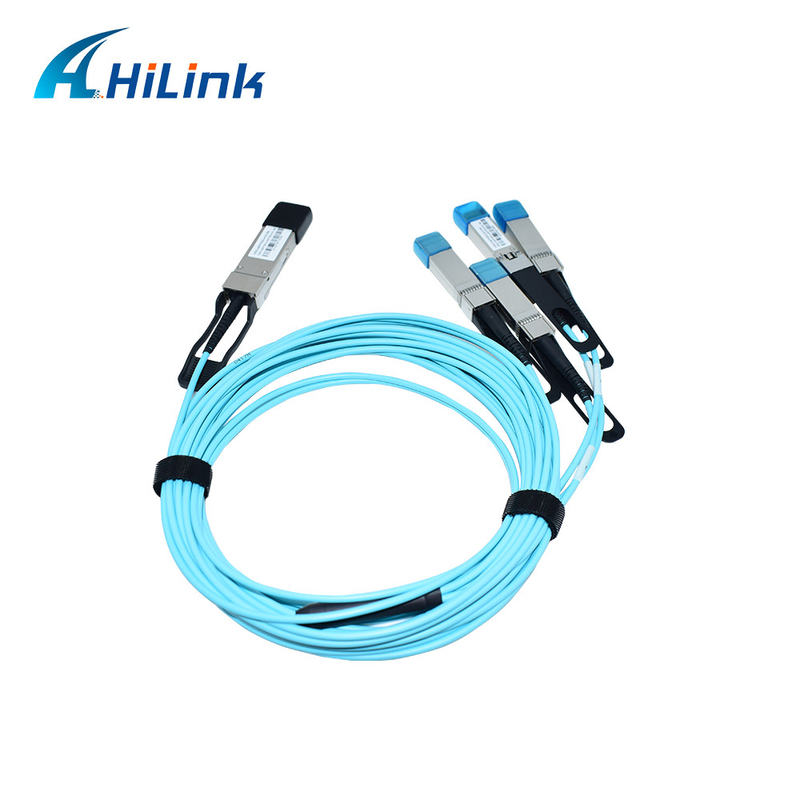

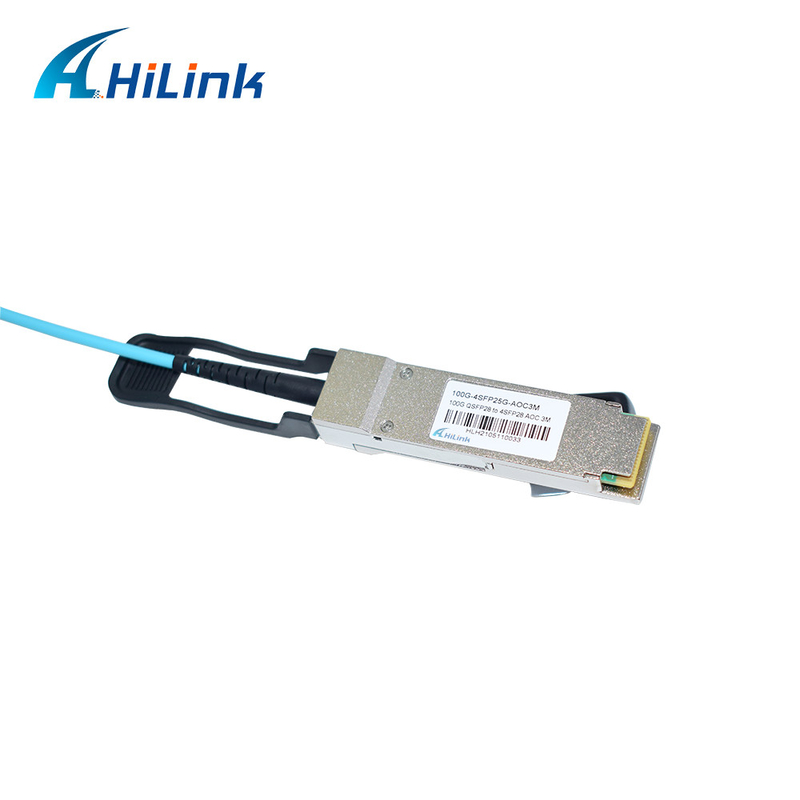

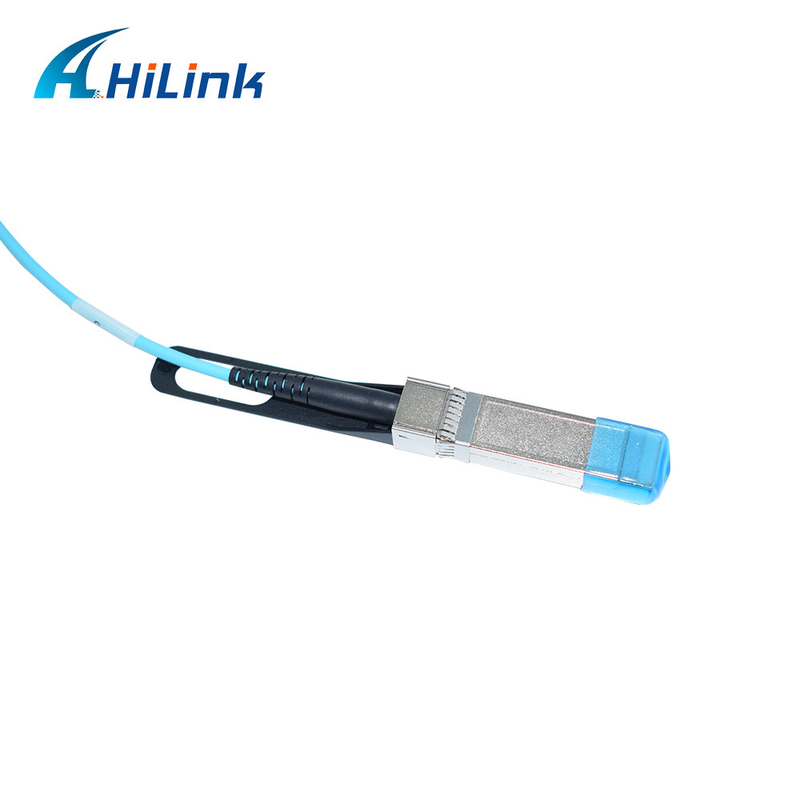

Product Picture Show
Mechanical Dimensions
Mechanical Dimension
s
