Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-QSFP-4XSFP 40G-4X10G-AOC
40G AOC QSFP+ To 4SFP Active AOC Optical Cable With Four Channel
General
The Hilink HL-T40GXX-C00 is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Active Optical Cable (AOC) to 4× SFP+ Active Optical Cable break-out solution. This Breakout cable is intended for 40G to 4× 10G applications.
This AOC is a high performance cable for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 40Gbps aggregate bandwidth. Each lane can operate at 10.3125Gbps. These cables also support 4 x 10G InfiniBand QDR applications and are backwards compatible to the 4 × 5G IB DDR and 4 × 2.5G IB single IB SDR application.
This product is leveraged from Hilink Technologies QSFP+ to QSFP+ Active Optical Cable product and SFP+ Active Optical Cable product. Where applicable, consult these respective data sheets.
This AOC incorporates HIilinks' proven integrated circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.
Features
QSFP to 4 SFP AOCsupports high density 10GBE per channel application.
Cable length up to 70meters.
Power consumption per end:<1.0W for QSFP and <0.35W forSFP+.
Operatingcasetemperature 0°C to +70°C
3.3V power supply voltagefor QSFP andSFP+
RoHS 6compliant
Application
High Performance Computing Clusters
40G/4x10G Ethernet Applications
4x Infiniband, SDR, DDR, QDR
Servers, Switches, Storage, and
Network Interference Cards (NICs)
QSFP+AOC 40G
| QSFP+40G-Optical cable | |
| QSFP-40G-AOC1M | QSFP+ to QSFP+, Active optical cable 1M |
| QSFP-40G-AOC3M | QSFP+ to QSFP+, Active optical cable 3M |
| QSFP-40G-AOC5M | QSFP+ to QSFP+, Active optical cable 5M |
| QSFP-40G-AOC7M | QSFP+ to QSFP+, Active optical cable 7M |
| QSFP-40G-AOC10M | QSFP+ to QSFP+, Active optical cable 10M |
| QSFP-40G-AOC20M | QSFP+ to QSFP+, Active optical cable 20M |
| QSFP-40G-AOC30M | QSFP+ to QSFP+, Active optical cable 30M |
| QSFP-40G-AOC50M | QSFP+ to QSFP+, Active optical cable 50M |
| QSFP-40G-AOC100M | QSFP+ to QSFP+, Active optical cable 100M |
| QSFP+40G Copper Cable | |
| QSFP-H40G-CU1M | QSFP+ to QSFP+ Passive Copper Cable 1M |
| QSFP-H40G-CU2M | QSFP+ to QSFP+ Passive Copper Cable 2M |
| QSFP-H40G-CU3M | QSFP+ to QSFP+ Passive Copper Cable 3M |
| QSFP-H40G-CU4M | QSFP+ to QSFP+ Passive Copper Cable 4M |
| QSFP-H40G-CU5M | QSFP+ to QSFP+ Passive Copper Cable 5M |
| QSFP-H40G-ACU7M | QSFP+ to QSFP+ Active Copper Cable |
| QSFP-H40G-ACU10M | QSFP+ to QSFP+ Active Copper Cable |
| QSFP-4SFP+ Copper Cable | |
| QSFP-4SFP10G-CU0.5M | QSFP+ to 4SFP+ Passive Copper Cable 0.5M |
| QSFP-4SFP10G-CU1M | QSFP+ to 4SFP+ Passive Copper Cable 1M |
| QSFP-4SFP10G-CU3M | QSFP+ to 4SFP+ Passive Copper Cable 3M |
| QSFP-4SFP10G-CU5M | QSFP+ to 4SFP+ Passive Copper Cable 5M |
| QSFP-4SFP+ Optical cable | |
| QSFP-4SFP10G-AOC1M | QSFP+ to 4SFP+ Active optical cable 1M |
| QSFP-4SFP10G-AOC3M | QSFP+ to 4SFP+ Active optical cable 3M |
| QSFP-4SFP10G-AOC5M | QSFP+ to 4SFP+ Active optical cable 5M |
| QSFP-4SFP10G-AOC7M | QSFP+ to 4SFP+ Active optical cable 7M |
| QSFP-4SFP10G-AOC10M | QSFP+ to 4SFP+ Active optical cable 10M |

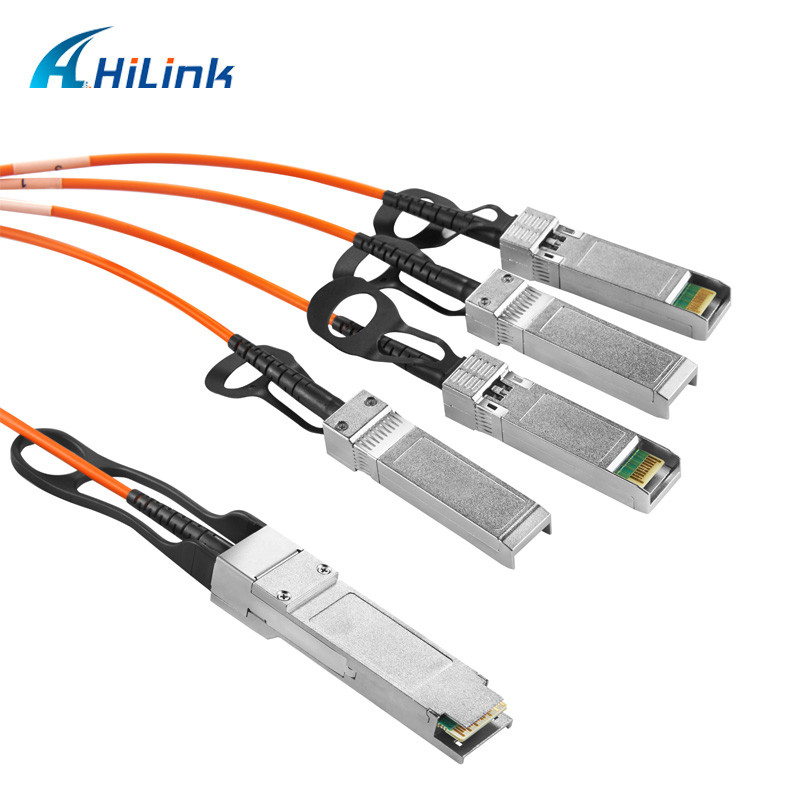

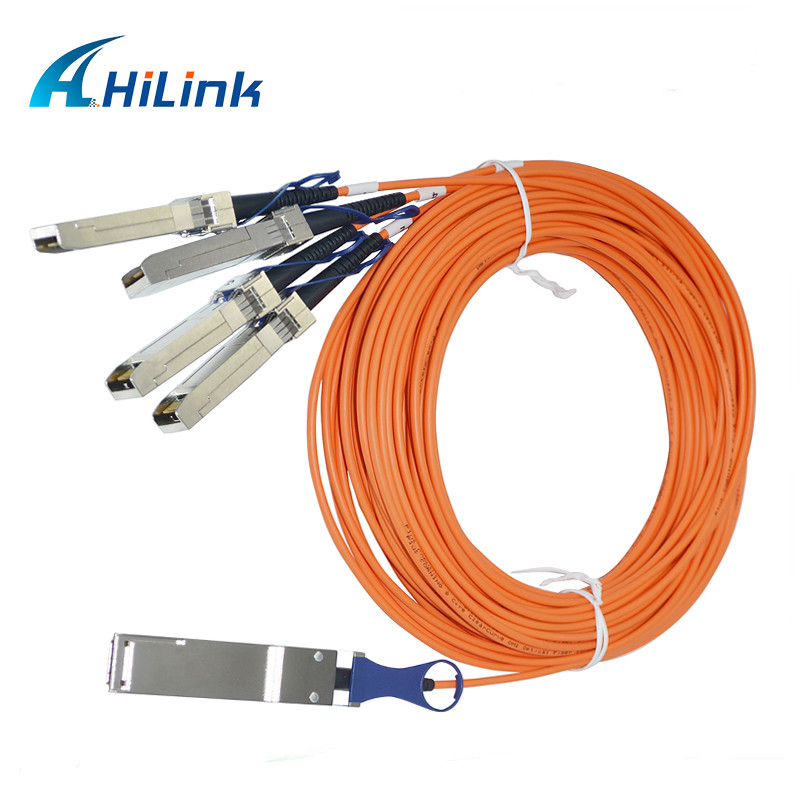

Product Picture Show
Mechanical Dimensions
Mechanical Dimension
s
