Place of Origin:
Guangdong, China
Brand Name:
Hilink
Certification:
CE Rohs
Model Number:
SFP-10G-AOC

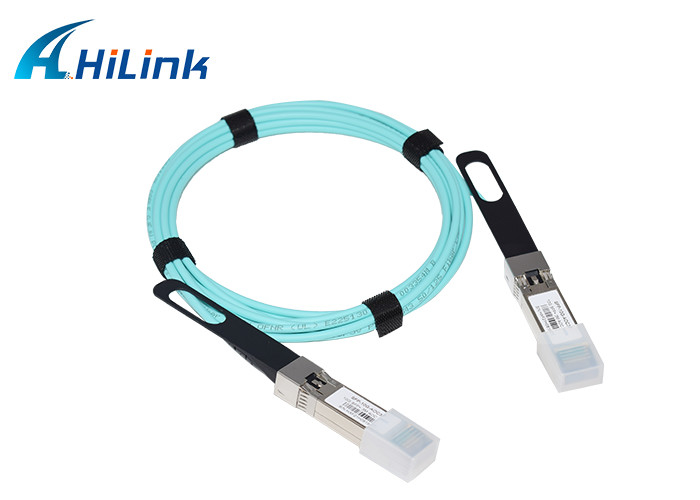

10G SFP OM3 AOC Multimode Optical Cable Compatible With Mikrotik
Compatible With Mikrotik SFP-10G-AOC Active Optical Cable OM3 Multimode
10G SFP+ active optical cable (AOC) consists of a multimode fiber optic cable terminated with SFP+ form factor modules on both ends.
10G SFP+ active optical direct-attach cables are suitable for very short distances and offer a very cost-effective way to establish a 10-gigabit link between SFP+ ports of switches within racks and across adjacent racks.
QSFP Cable Series
|
Part Number |
Description |
|
HL-QSFP+40G-Optical cable |
|
|
HL-QSFP-40G-AOC1M |
QSFP+ to QSFP+, Active optical cable 1M |
|
HL-QSFP-40G-AOC3M |
QSFP+ to QSFP+, Active optical cable 3M |
|
HL-QSFP-40G-AOC5M |
QSFP+ to QSFP+, Active optical cable 5M |
|
HL-QSFP-40G-AOC7M |
QSFP+ to QSFP+, Active optical cable 7M |
|
HL-QSFP-40G-AOC10M |
QSFP+ to QSFP+, Active optical cable 10M |
|
HL-QSFP-40G-AOC20M |
QSFP+ to QSFP+, Active optical cable 20M |
|
HL-QSFP-40G-AOC30M |
QSFP+ to QSFP+, Active optical cable 30M |
|
HL-QSFP-40G-AOC50M |
QSFP+ to QSFP+, Active optical cable 50M |
|
HL-QSFP-40G-AOC100M |
QSFP+ to QSFP+, Active optical cable 100M |
|
HL-QSFP+40G Copper Cable |
|
|
HL-QSFP-H40G-CU1M |
QSFP+ to QSFP+ Passive Copper Cable 1M |
|
HL-QSFP-H40G-CU2M |
QSFP+ to QSFP+ Passive Copper Cable 2M |
|
HL-QSFP-H40G-CU3M |
QSFP+ to QSFP+ Passive Copper Cable 3M |
|
HL-QSFP-H40G-CU4M |
QSFP+ to QSFP+ Passive Copper Cable 4M |
|
HL-QSFP-H40G-CU5M |
QSFP+ to QSFP+ Passive Copper Cable 5M |
|
HL-QSFP-H40G-ACU7M |
QSFP+ to QSFP+ Active Copper Cable |
|
HL-QSFP-H40G-ACU10M |
QSFP+ to QSFP+ Active Copper Cable |
|
HL-QSFP-4SFP+ Copper Cable |
|
|
HL-QSFP-4SFP10G-CU0.5M |
QSFP+ to 4SFP+ Passive Copper Cable 0.5M |
|
HL-QSFP-4SFP10G-CU1M |
QSFP+ to 4SFP+ Passive Copper Cable 1M |
|
HL-QSFP-4SFP10G-CU3M |
QSFP+ to 4SFP+ Passive Copper Cable 3M |
|
HL-QSFP-4SFP10G-CU5M |
QSFP+ to 4SFP+ Passive Copper Cable 5M |
|
HL-QSFP-4SFP+ Optical cable |
|
|
HL-QSFP-4SFP10G-AOC1M |
QSFP+ to 4SFP+ Active optical cable 1M |
|
HL-QSFP-4SFP10G-AOC3M |
QSFP+ to 4SFP+ Active optical cable 3M |
|
HL-QSFP-4SFP10G-AOC5M |
QSFP+ to 4SFP+ Active optical cable 5M |
|
HL-QSFP-4SFP10G-AOC7M |
QSFP+ to 4SFP+ Active optical cable 7M |
|
HL-QSFP-4SFP10G-AOC10M |
QSFP+ to 4SFP+ Active optical cable 10M |
Desription:
The Hilink QSFP28 active optic cables are a high performance, low power consumption, long reach interconnect solution supporting 100G Ethernet. It is compliant with the QSFP MSA and IEEE P802.3ba. Hilink QSFP28 AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 25.78125Gb/s, providing an aggregated rate of 104Gb/s. Hilink QSFP28 AOC is one kind of parallel transceiver which provides increased port density and total system cost savings.
Features:
Support 10GBASE-SR/10G Fiber Channel application
Compliant to SFP+ Electrical MSA SFF-8431
Compliant to SFP+ Mechanical MSA SFF-8432
Multi rate of up to 11.3Gbps
Transmission distance up to 150m (OM3)
+3.3V single power supply
Low power consumption
Operating case temp Commercial: 0°C to +70 °C
RoHS compliant
Password protection for A0h and A2h
Applications:
10GBASE-SR at 10.31Gbps
InfiniBand QDR, SDR, DDR
Other optical links
Product Description
Real Pictur
Order details
2~44Channels available. Com port: simplex or duplex. Fiber connector: LC/SC or other
Package: ABS plastic box, LGX metal cassette box, 19inch rack mount. DWDM Solutions and DWDM SFP/XFP.
Shipment & Payment 1. International Express: DHL, Fedex, UPS, EMS, UPS, TNT and etc. 2. Payment: T/T, Western Union, Paypal and so on.
Guarantee:
›& Brand new.
›& OEM/ODM is available. ›& 100% through quality test and aging test. ›& 3 years warranty (From the date of shipment).
Our Service
OEM/ODM order is available
We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
