Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-QSFP-40G-AOC-7M
QSFP+ 40G MMF SFP OM3 AOC Network Cable Aqua Color 7M Length
QSFP+ 40G AOC 7M QSFP+ to QSFP+ Active Optical Cable Aqua Color OM3 SFP Cable 7M
General:
The HILINK QSFP+ active optic cables are a high performance, low power consumption, long reach interconnect solution supporting
11.3G/10G/8G/4G/2G fiber channel , PCIe and SAS. It is compliant with the QSFP MSA and IEEE P802.3ba. HILINK QSFP AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 11.3Gb/s, providing an aggregated rate of 45.2Gb/s. HILINK QSFP+AOC is one kind of parallel transceiver which provides increased port density and total system cost savings.
Features:
Support 40GBASE-SR4 application
Electrical interface compliant to QSFP+ connector (SFF-8436)
Hot Pluggable
850nm VCSEL transmitter, PIN photo-detector receiver
Operating case temperature: 0 to 70℃
3.3V power supply voltage
Low power consumption
All-metal housing for superior EMI performance
Application:
40 Gigabit Ethernet
Fibre Channel Applications
InfiniBand QDR, SDR, DDR
Servers, switches, storage and host card adapters
High-performance computing clusters
QSFP Cable Series:
| QSFP+40G-Optical cable | |
| QSFP-40G-AOC1M | QSFP+ to QSFP+, Active optical cable 1M |
| QSFP-40G-AOC3M | QSFP+ to QSFP+, Active optical cable 3M |
| QSFP-40G-AOC5M | QSFP+ to QSFP+, Active optical cable 5M |
| QSFP-40G-AOC7M | QSFP+ to QSFP+, Active optical cable 7M |
| QSFP-40G-AOC10M | QSFP+ to QSFP+, Active optical cable 10M |
| QSFP-40G-AOC20M | QSFP+ to QSFP+, Active optical cable 20M |
| QSFP-40G-AOC30M | QSFP+ to QSFP+, Active optical cable 30M |
| QSFP-40G-AOC50M | QSFP+ to QSFP+, Active optical cable 50M |
| QSFP-40G-AOC100M | QSFP+ to QSFP+, Active optical cable 100M |
| QSFP+40G Copper Cable | |
| QSFP-H40G-CU1M | QSFP+ to QSFP+ Passive Copper Cable 1M |
| QSFP-H40G-CU2M | QSFP+ to QSFP+ Passive Copper Cable 2M |
| QSFP-H40G-CU3M | QSFP+ to QSFP+ Passive Copper Cable 3M |
| QSFP-H40G-CU4M | QSFP+ to QSFP+ Passive Copper Cable 4M |
| QSFP-H40G-CU5M | QSFP+ to QSFP+ Passive Copper Cable 5M |
| QSFP-H40G-ACU7M | QSFP+ to QSFP+ Active Copper Cable |
| QSFP-H40G-ACU10M | QSFP+ to QSFP+ Active Copper Cable |
| QSFP-4SFP+ Copper Cable | |
| QSFP-4SFP10G-CU0.5M | QSFP+ to 4SFP+ Passive Copper Cable 0.5M |
| QSFP-4SFP10G-CU1M | QSFP+ to 4SFP+ Passive Copper Cable 1M |
| QSFP-4SFP10G-CU3M | QSFP+ to 4SFP+ Passive Copper Cable 3M |
| QSFP-4SFP10G-CU5M | QSFP+ to 4SFP+ Passive Copper Cable 5M |
| QSFP-4SFP+ Optical cable | |
| QSFP-4SFP10G-AOC1M | QSFP+ to 4SFP+ Active optical cable 1M |
| QSFP-4SFP10G-AOC3M | QSFP+ to 4SFP+ Active optical cable 3M |
| QSFP-4SFP10G-AOC5M | QSFP+ to 4SFP+ Active optical cable 5M |
| QSFP-4SFP10G-AOC7M | QSFP+ to 4SFP+ Active optical cable 7M |
| QSFP-4SFP10G-AOC10M | QSFP+ to 4SFP+ Active optical cable 10M |

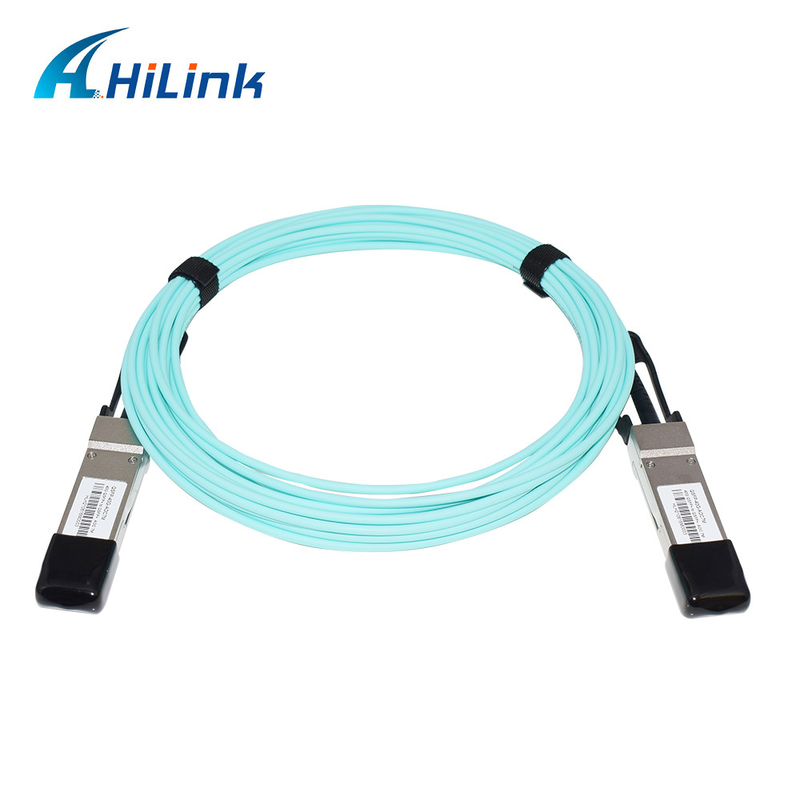

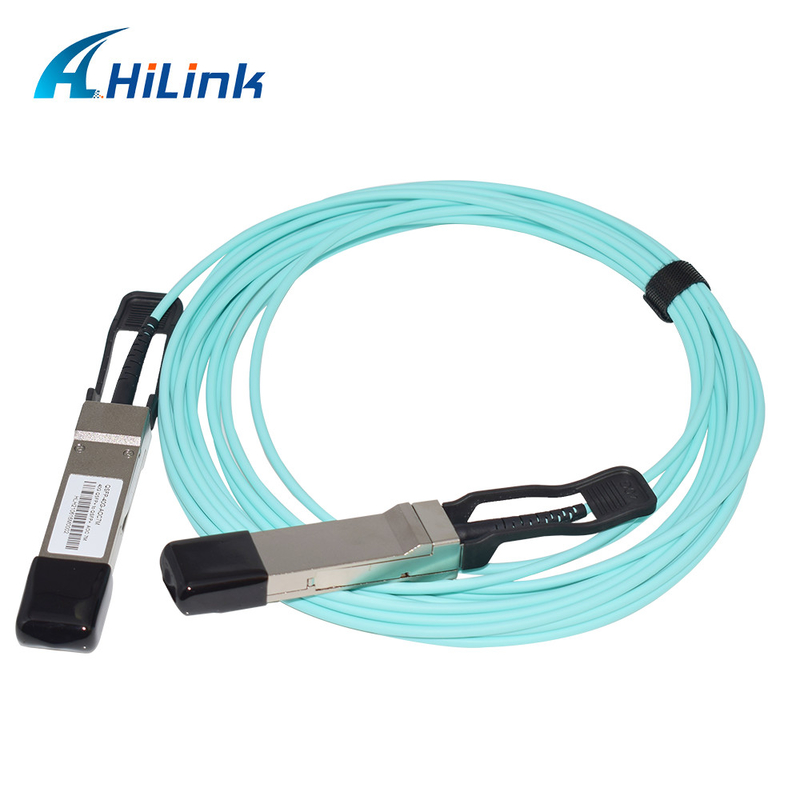

Product Picture:
What we supply:
We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+,QSFP28, SFP28, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules.
