Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-GPON-SFP

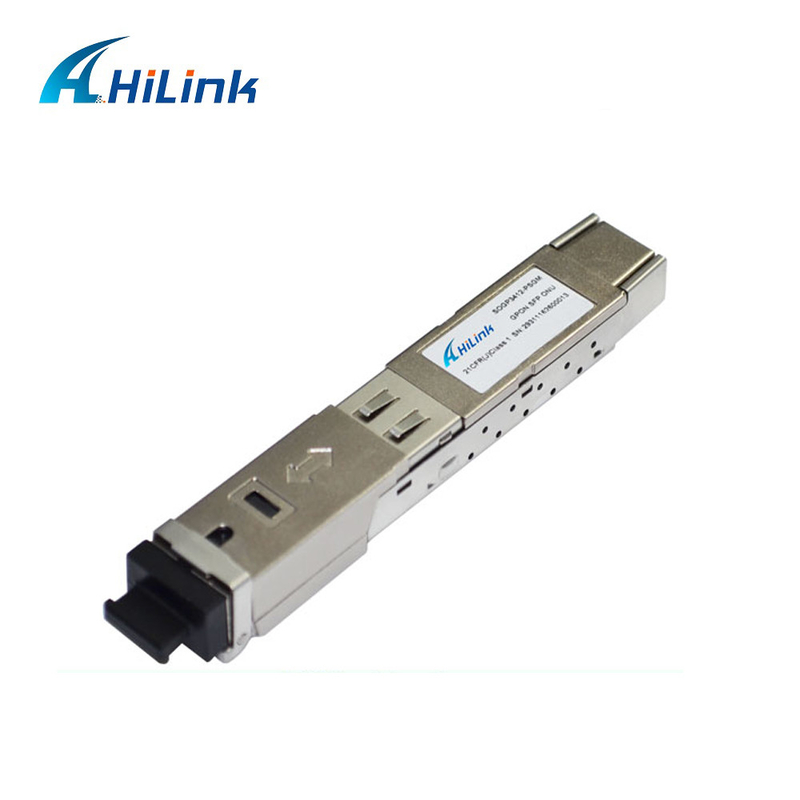

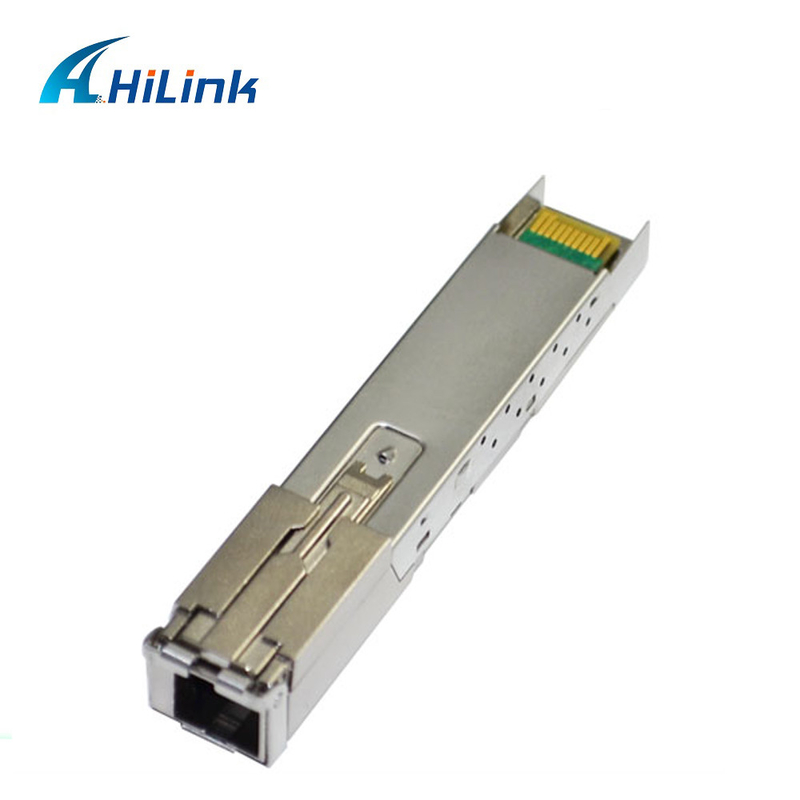

Factory Price GPON ONU SFP Tx1310/Rx1490 1.25G/2.5G With MAC Modules Industrial Temperature
Hilink’s GPON SFP with MAC is a G.984.2 (GPON) Optical Network Terminal (ONT) with Small Form-factor Pluggable (SFP) packaging. This product integrates a bi-directional optical transceiver function and GPON MAC function. By being plugged into the customer premise equipment (CPE) with standard SFP port directly, it provides an asymmetric 1.244Gbps upstream / 2.488 Gbps downstream GPON uplink to the CPE without requiring separate power supply.
Features
Support ITU-T G.984 GPON Networks application
Support ITU-T G.988 ONU management and control interface (OMCI) specification
Support Dying Gasp function (optional)
Configurable 1G or 2.5G UNI
Single fiber bi-directional data links with asymmetric 1.244Gbps Tx and 2.488Gbps Rx
1310nm burst-mode transmitter with DFB laser
1490nm continuous-mode receiver with APD-TIA
2-wire interface for integrated digital diagnostic Monitoring
SFP package with SC/UPC or SC/APC receptacle optical interface
Single +3.3V power supply
Operation case temperature -40~85°C for industrial and 0~70°C for commercial
RoHS6 compliance
Hilink's PON Series
|
EPON OLT PX20+ |
EPON OLT PX20+, 20km, Tx 1490nm 1.25G, Rx 1310nm 1.25G, SFP form-factor,SC/UPC receptacle connector, Commercial temperature |
|
EPON OLT PX20++ |
EPON OLT PX20++, 20km, Tx 1490nm 1.25G, Rx 1310nm 1.25G, SFP form-factor, SC/UPC recetacle connector, Commercial temperature TX5 ~7db |
|
EPON OLT 7dBm |
EPON OLT PX20++ Enhanced, 20km, Tx 1490nm 1 .25G, Rx 1310nm 1.25G, SFP form-factor, SC/UPC receptacle connector, Commercial temperature 7DB |
|
GPON OLT B+ |
GPON OLT B+, 20km, TX 1490nm 2.488Gbps, RX 1310nm 1.244Gbps, SFP, BIDI SC/UPC Receptacle, Commercial Temperature |
GPON OLT C+ |
GPON OLT C+, 20km, TX 1490nm 2.488Gbps, RX 1310nm 1.244Gbps, SFP, BIDI SC/UPC.Receptace, Commercial Temperature |
GPON OLT C++ |
GPON OLT C++, 20km, TX 1490nm 2.488Gbps, RX 1310nm 1.244Gbps, SFP, BIDI SC/UPC Receptacle, Commercial Temperature |
GPON OLT 7dBm |
GPON OLT C++ Enhanced, 20km, TX 1490nm 2.488Gbps, RX 1310nm 1.244Gbps, SFP+, BIDI SC/UPC Receptacle, Commercial Temperature |
GPON ONU SFP |
GPON ONU SFP, G.984.5, 20km, Tx 1310nm 1.244G, Rx 1490nm 2.488G, SFP form-factor, SC/UPC receptacle connector, Industrial temperature, BEN low active |
EPON ONU SFP |
EPON ONU SFP, G.984.2, 20km, Tx 1310nm 1.25G, Rx 1490nm 1.25G, SFP form-factor, SC/UPC receptacle connector, Commercial temperature |
GPON ONU STICK SFP |
ONU SFP MAC/ Tx1310/Rx1490 DFB+APD 1.25G/2.5G |
Compatibility
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Applications
FTTX Application
Details Photos
Hilink Advantages
1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
