Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-GPON-C+
GPON OLT C+ 20KM Tx1490nm 2.488Gbps Rx1310nm 1.244Gbps Simplex SC/UPC SFP Transceiver
Hilink’s GPON OLT SFP C+, 20km, TX 1490nm 2.488Gbps, RX 1310nm 1.244Gbps, SFP form-factor, SC/UPC Receptacle, It primarily enables bandwidth 2.5G optical links over single-mode fiber terminated with SC/UPC simplex connectors and can be used in commercial temperature environment for interoperability with 1000BASE-BX interfaces.
Features
Support ITU-T G.984.2 GPON OLT C+ application
Single fiber bi-directional data links with symmetric 2.488Gbps Tx and 1.244Gbps Rx
1490nm continuous-mode transmitter with DFB LD
1310nm burst-mode receiver with APD-TIA
2-wire interface for integrated digital diagnostic Monitoring
Receiver RESET, Signal Detect, RSSI function indication (RESET, RX_SD, RSSI)
SFP package with SC/UPC receptacle optical interface
Single +3.3V power supply
Operation case temperature 0~70°C
RoHS6 compliance
Optical Characteristics
| Parameter | Symbol | Min | Typ | Max | Unit | |||
| Transmitter | ||||||||
| Center Wavelength | λ | 1480 | 1490 | 1510 | nm | |||
| Spectral Width (-20dB) | Δλ | 1 | nm | |||||
| Mean Launched Power | 3 | 7 | dBm | |||||
| Mean Launched Power (Tx Off) | -45 | dBm | ||||||
| Extinction ratio | ER | 8.2 | dB | |||||
| Optical Return Loss Tolerance | -15 | dB | ||||||
| Transmitter and dispersion Penalty | TDP | 1 | dB | |||||
| Transmitter Mask (PRBS2²³-1 @2.488G) | Compliant With ITU-T G.984.2 | |||||||
| Receiver | ||||||||
| Center Wavelength | λ | 1290 | 1310 | 1330 | nm | |||
| Sensitivity (PRBS223-1@1.244G,ER=10,BER<10-10) |
-30 | dBm | ||||||
| Overload (PRBS223-1@1.244G,ER=10,BER<10-10) |
-12 | dBm | ||||||
| Receiver Burst Mode Dynamic Range | 15 | dB | ||||||
| Damage Threshold for Receiver | 5 | dBm | ||||||
| SD Assert Level | -33 | dBm | ||||||
| SD De-assert Level | -45 | dBm | ||||||
| SD Hysteresis | 0.5 | 6 | dB | |||||
| WDM Filter isolation to 1550nm | 38 | dB | ||||||
| WDM Filter isolation to 1650nm | 35 | dB | ||||||
Compatibility
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Applications
FTTX Application

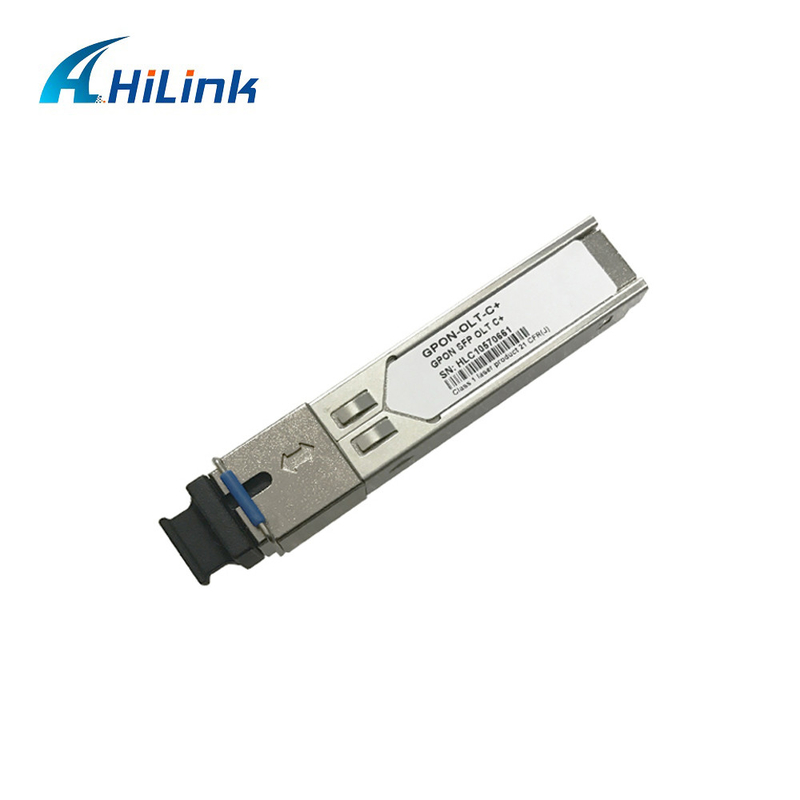

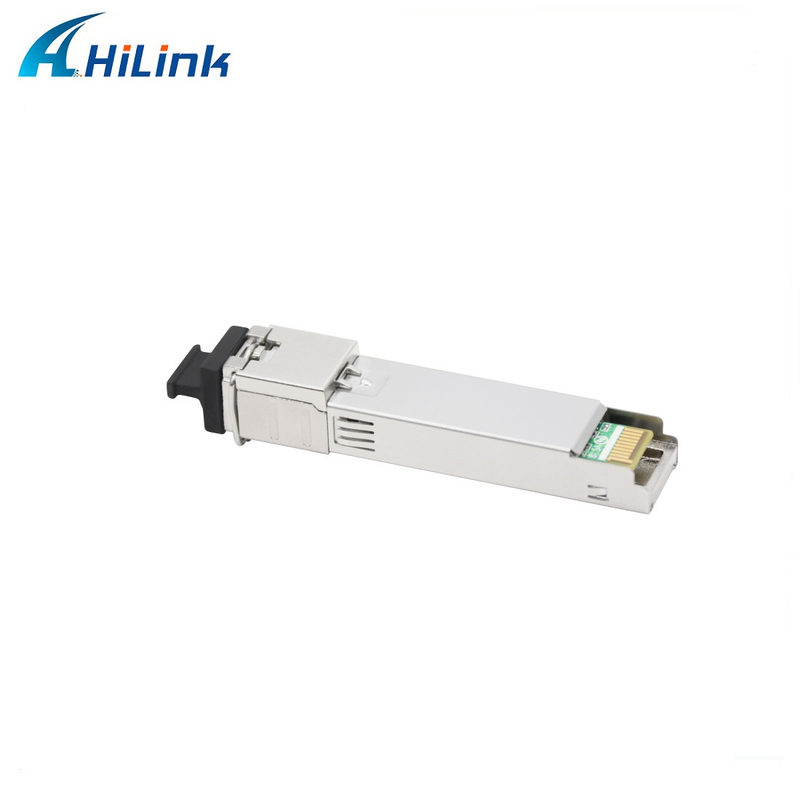

Details Photos
Hilink Advantages
1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
