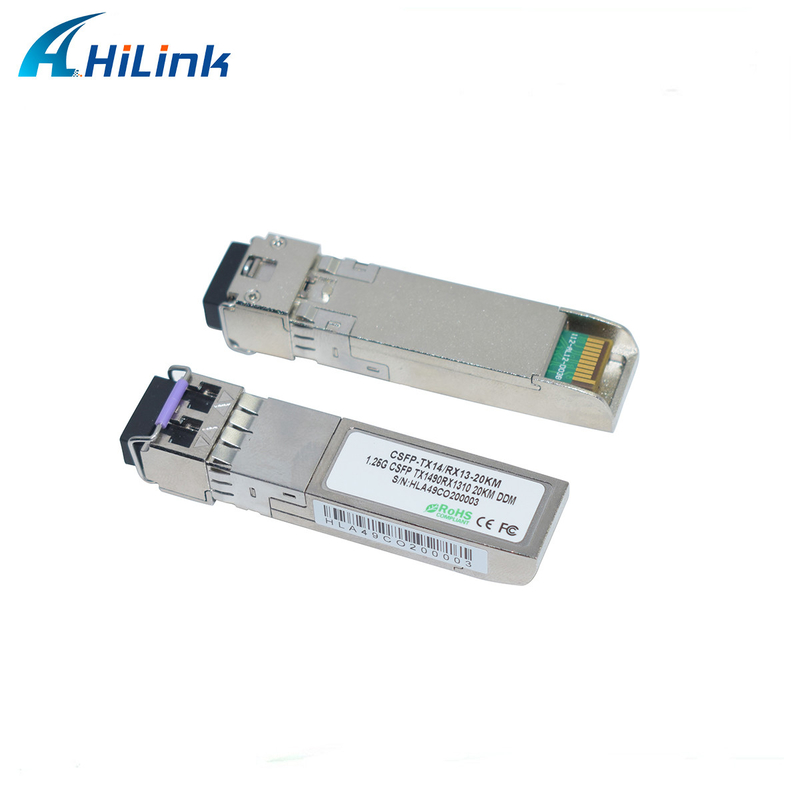

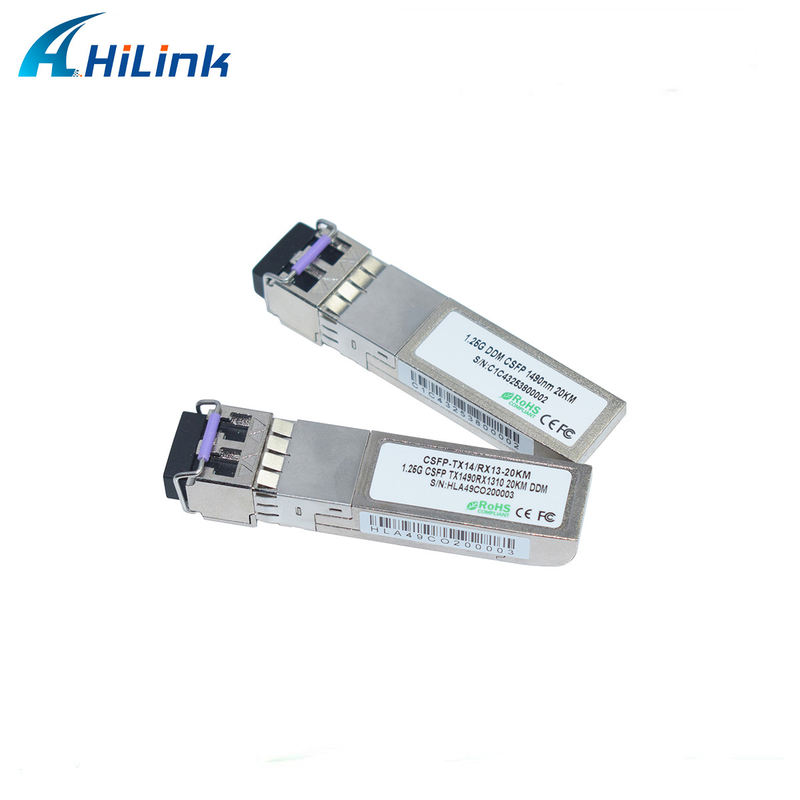

Compact SFP 1.25G Bidi 20KM Tx1490nm Rx1310nm DDM LC Connector Fiber Ethernet Module
Hilink Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA).
They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev.10.0 .They are RoHS compliant and lead-free.
Features
Support 1.25Gbps data links
1490nm DFB laser and PIN photodetector for 20km transmission
2xBi-directional transceivers in 1 SFP transceiver package
Compliant with CSFP MSA Option 2 and SFF-8472
Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
Compatible with SONET OC-24 system
Compatible with RoHS
+3.3V single power supply
Operating case temperature: 0 to +70°C(Commercial)
Optical Characteristics
| Parameter | Symbol | Min | Typ | Max | Unit | |||
| Transmitter | ||||||||
| Center Wavelength | λ | 1470 | 1490 | 1510 | nm | |||
| Spectral Width – RMS | Δλ | 1 | nm | |||||
| Average Launch Optical Power, each lane | LOP | -9 | -3 | dBm | ||||
| Extinction ratio | ER | 3 | dB | |||||
| Optical Rise/Fall Time (20%~80%) | tr/tf | 0.26 | ns | |||||
| Data Input Swing Differential | Vin | 400 | 1800 | mV | ||||
| Input Differential Impedance | Zin | 90 | 100 | 110 | Ω | |||
|
Tx Disable |
Disable Enable |
|
2.0 0 |
Vcc 0.8 |
V | |||
|
Tx Fault |
Fault Normal |
2.0 0 |
Vcc 0.8 |
V | ||||
| Receiver | ||||||||
| Center Wavelength | λ | 1290 | 1330 | nm | ||||
| Receiver Sensitivity | -3 | dBm | ||||||
| Receiver Overload | -23 | dBm | ||||||
| Los De-Assert | LOSd | -23 | dBm | |||||
| Los Assert | LOSa | -35 | dBm | |||||
| Los Hysteresis | 1 | 4 | dB | |||||
| Data Output Swing Differential | Vout | 400 | 1800 | mV | ||||
| LOS | High |
|
2.0
|
Vcc 0.8 |
V | |||
| Low | ||||||||
Compatibility
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Applications
SONET OC-24 system
Gigabit Ethernet
Fiber Channel
Switch to Switch interface
Point to Point FTTH Application
Other optical transmission systems
