Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC RoHS
Model Number:
HL-QSFP-DD-ZR-DCO

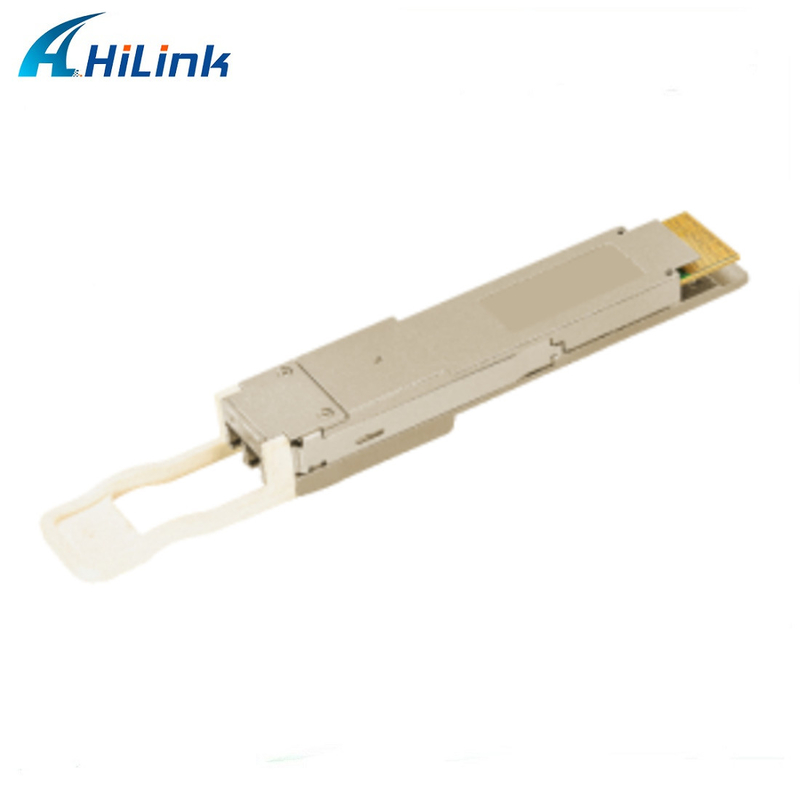

C Band 75/100GHz 400G Coherent Module QSFP-DD ZR 80~120KM for DCI Applications
This product is a coherent module, compliant with the OIF 400ZR MSA and QSFP-DD MSA standards, is designed for DCI applications. The digital diagnostics function is available via an I2C interface, as specified by the QSFP-DD MSA.
The product is a C-band 75G/100 GHz grid coherent optical module that combines coherent DSP ASIC functionality with best in class ultra-narrow line-width tunable lasers, high speed modulators and high responsively coherent receivers to deliver high performance at 400G 16QAM modulation formats (at 60G baud rate).
Features
Optical Characteristics
| Parameter | Min | Typ | Max | Unit |
Conditions |
|||
| Transmitter | ||||||||
|
Transmitter frequency range |
191.3 |
193.7 |
196.1 |
THz |
TU-T grid. Frequency range over which the specifications hold unless noted otherwise. The frequency is fixed at 193.7 THz for unamplified link applications. |
|||
|
Transmitter laser frequency stability |
-1.8 | 1.8 | GHz |
Offset from channel frequency set point. The receiver LO has the same frequency accuracy. |
||||
|
Transmitter output power |
-10 | -6 | dBm |
Measured at optical connector. |
||||
|
Transmitter output power with TX disabled |
-20 | dBm |
Max Output power with TX_DIS asserted |
|||||
|
Transmitter output power during wavelength switching |
|
-20 | dBm | |||||
|
Transmitter reflectance |
-20 | dBm |
Transmitter polarization dependent power |
|||||
|
Mean I-Q amplitude imbalance |
1 | dB | ||||||
|
Transmitter polarization dependent power |
1.5 | dB |
Power difference between X and Y polarization |
|||||
| Receiver | ||||||||
|
Frequency offset between RX and LO |
-3.6 | 3.6 | GHz |
Acquisition Range |
||||
|
Input power range |
-12 | 0 | dBm | |||||
|
Input sensitivity (amplified link application) |
-12 | dBm | ||||||
|
Input sensitivity (unamplified link application) |
-20 | dBm |
For unamplified link applications, the minimum input power is –20 dBm @receiver OSNR tolerance ≥ 34 dB. |
|||||
|
OSNR tolerance (amplified link application) |
26 | dB/0.1nm | The OSNR tolerance is referenced to an optical bandwidth of 0.1 nm @193.7 THz or 12.5 GHz. | |||||
|
OSNR tolerance (unamplified link application) |
34 | dB/0.1nm |
The OSNR tolerance cannot be less than 34 dB for unamplified link applications. |
|||||
|
Optical return loss |
20 | dB |
Optical reflectance at connector input |
|||||
|
CD Tolerance |
2400 | ps/nm |
Tolerance to chromatic dispersion |
|||||
|
Optical path power penalty |
0.5 | dB |
OSNR penalty tolerance due to –35 dB interferometric crosstalk and 2400 ps/nm chromatic dispersion. |
|||||
|
PMD tolerance |
10 | ps |
Tolerance to PMD with ≤ 0.5 dB penalty to OSNR sensitivity. 10 ps of PMD corresponds to max 30 ps of DGD and max 500 ps2 of SOPMD |
|||||
|
PDL tolerance (amplified link application) |
3.5 | dB |
Tolerance to PDL with < 1.3 dB penalty to OSNR sensitivity When change in PSP is ≤ 1 rad/ms. |
|||||
|
PDL tolerance (unamplified link application) |
2.5 | dB |
The PDL tolerance is 2.5 dB in unamplified link application when the reciever OSNR sensitivity penalty is 0.8 dB. |
|||||
|
Tolerance to change in SOP |
50 |
krad/s |
Tolerance to change in SOP with ≤ 0.5 dB penalty to OSNR sensitivity. Measurement relative to reference with 10 ps PMD and 2.5 dB PDL and SOP of < 1 rad/ms under the same conditions. |
|||||
|
Optical input power transient tolerance |
±2 |
dB |
Tolerance to change in input power with ≤ 0.5 dB penalty to OSNR sensitivity. Received power is within –12 dBm to 0 dBm. Rise/fall times of power change defined by 20%–80% of 50 µs or slower. |
|||||
Applications
Data Center Interconnect
400G ZR amplified point-to-point links
400G ZR unamplified links
Compatibility
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
