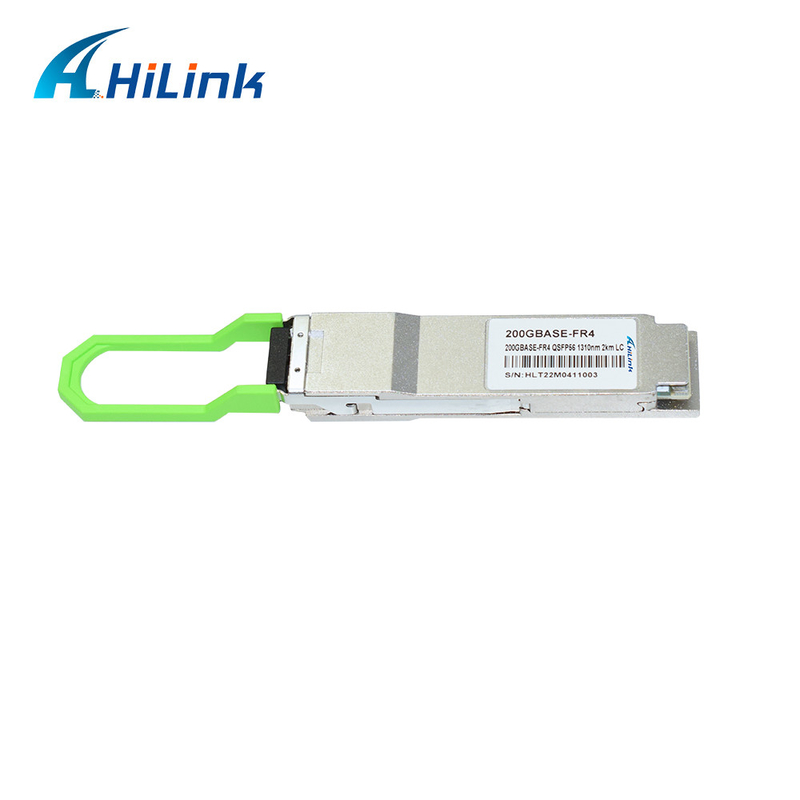

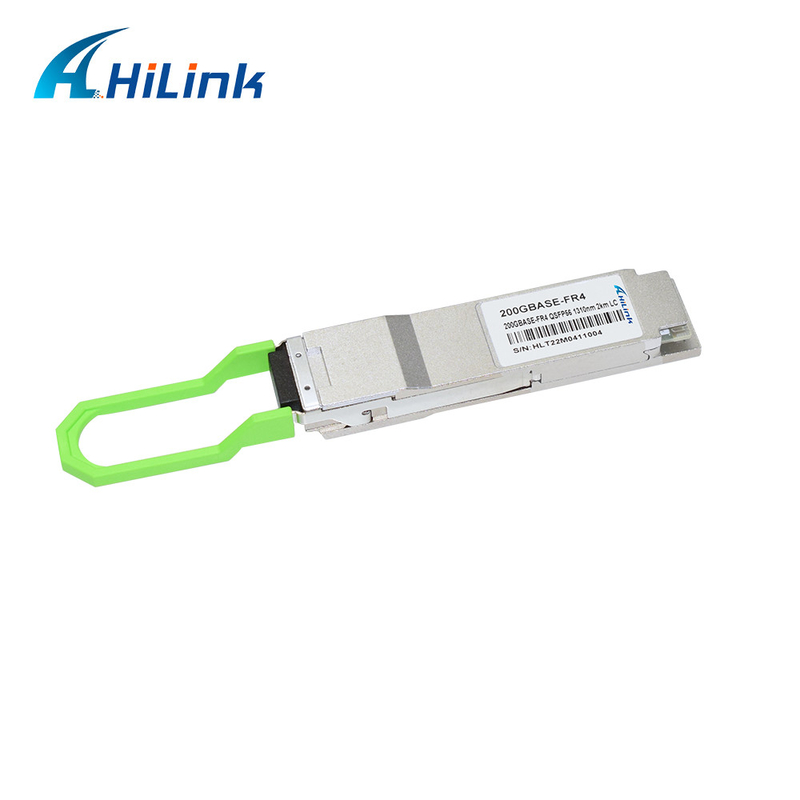

200G QSFP56 PAM4 FR4 4×50G 2KM Reach SMF Duplex LC Optical Fibre Transceivers with FEC
HiLink 200G QSFP56 FR4 is a 4×50Gbps singlemode fiber, hot pluggable optical transceiver.HiLink’s unique SystemOnGlassTM (SOGTM) technology enables the integration of 4 transmitters, 4 receivers and an optical MUX/DeMUX into a small form factor package that delivers a 200Gbps data link in a compact QSFP56 footprint.
The optical connectivity is based on two Singlemode Fiber (SMF) LC connectors, one for Tx and one for Rx. The Tx and Rx each consist of 4
50Gbps Coarse Wavelength Division Multiplex (CWDM) channels, whose wavelengths are in the 1310nm range. The 200G QSFP56 FR4 transceiver is designed for applications with a reach up to 2km and with the use of FEC.
Features
Optical Characteristics
| Parameter | Symbol | Min | Typ | Max | Unit | |||
| Transmitter | ||||||||
|
Lane Wavelength Range |
Lane 0 Lane 1 Lane 2 Lane 3 |
λ |
1264.5 1284.5 1304.5 1324.5 |
1271 1291 1311 1331 |
1277.5 1297.5 1317.5 1337.5 |
nm | ||
|
Average Launch Optical Power, each lane |
LOP | -4.2 | 4.7 | dBm | ||||
|
Total Average launch power |
10.7 | dBm | ||||||
|
Outer Optical Modulation Amplitude (OMAouter), each lane |
OMA | -1.2 | 4.5 | dBm | ||||
| Average launch power of OFF transmitter, each lane | -30 | dBm | ||||||
|
Launch Power in OMAouter minus TDECQ, each Lane for ER ≥ 4.5dB for ER < 4.5dB |
-2.6 -2.5 |
dBm | ||||||
|
Transmitter and dispersion eye closure for PAM4, each lane |
3.3 | dB | ||||||
|
Extinction ratio |
ER | 3.5 | dB | |||||
|
Relative Intensity Noise (OMA) |
OMA | -132 | dB/Hz | |||||
|
Side-Mode Suppression Ration (SMSR) |
SMSR | 30 | dB | |||||
|
Optical return loss tolerance |
16.5 | dB | ||||||
|
Transmitter Reflectance |
-26 | dB | ||||||
|
Transmitter Output Power Monitoring Accuracy |
-3 | 3 | dB | |||||
| Receiver | ||||||||
| Lane Wavelength Range |
Lane 0 Lane 1 Lane 2 Lane 3 |
λ |
1264.5 1284.5 1304.5 1324.5 |
1271 1291 1311 1331 |
1277.5 1297.5 1317.5 1337.5 |
nm | ||
| Damage Threshold | THd | 5.7 | dBm | |||||
|
Average power at receiver input, each lane |
-8.2 | 4.7 | dBm | |||||
|
Receive Power, each lane (OMA) |
4.5 | dBm | ||||||
|
Receiver Reflectance |
-26 | dB | ||||||
|
Difference in receive Power between any Two Lanes(OMAouter) |
4.1 | dBm | ||||||
|
Receiver sensitivity(OMAouter)each lane |
|
-6.0 | dBm | |||||
|
Stressed receiver sensitivity in OMA |
-3.6 | dBm | ||||||
|
Conditions of stressed receiver sensitivity test |
||||||||
|
Stressed eye closure (SECQ), lane under test |
3.3 | dB | ||||||
|
OMA of each aggressor lane |
0.5 | dBm | ||||||
Applications
200GBASE-FR4 Ethernet
Compatibility
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
