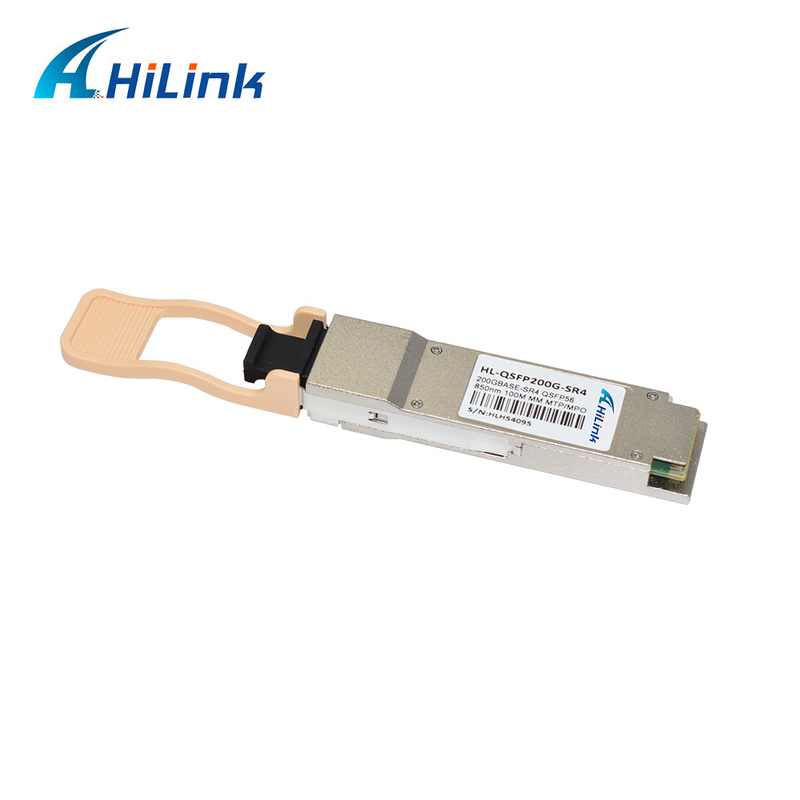

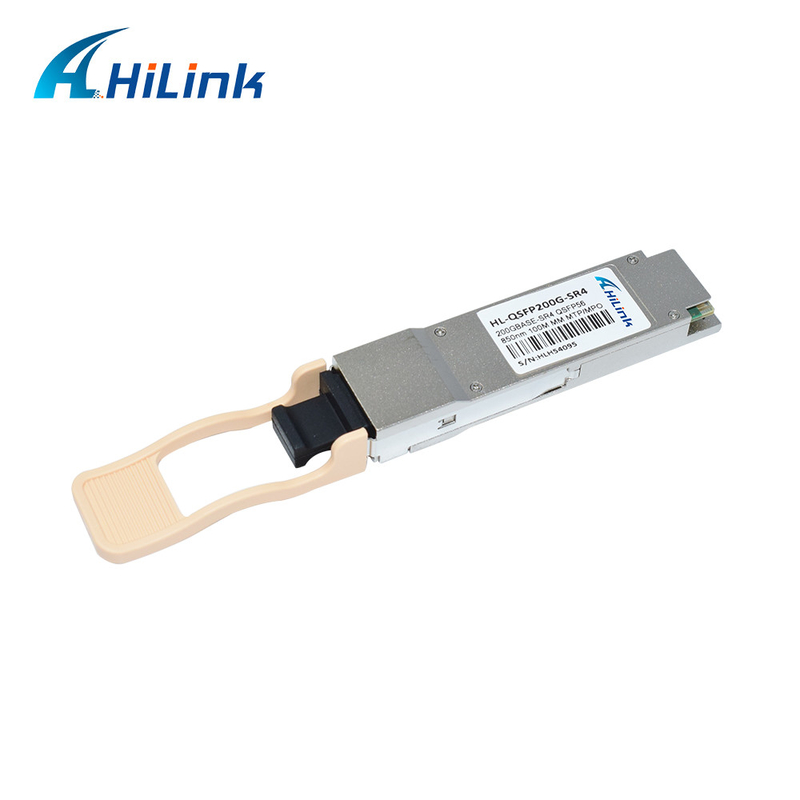

200G QSFP56 PAM4 SR4 4×50G 70~100M Reach MMF MPO-12 Ethernet Optic Transceivers
HiLink 200G QSFP56 SR4 is a 4×50Gbps multi mode fiber, hot pluggable optical transceiver. The module integrates four parallel lanes with baud
rate at 26.5625GBd each lane. It can transmit up to 70 m on fiber OM3 fiber or 100 m on OM4 fiber with FEC.
Features
Optical Characteristics
| Parameter | Symbol | Min | Typ | Max | Unit | ||
| Transmitter | |||||||
|
Center Wavelength |
λ |
840 | 850 | 860 | nm | ||
|
Spectral Width – RMS |
Δλ |
0.6 | nm | ||||
|
Average Launch Optical Power, each lane |
LOP | -6.5 | 4 | dBm | |||
|
Optical Modulation Amplitude, each lane |
OMA | -4.5 | 3 | dBm | |||
|
Launch power in OMA minus TDEC |
-5.9 | dBm | |||||
|
Transmitter and dispersion eye closure (TDECQ), each lane |
TDECQ | 4.5 | dB | ||||
|
Extinction ratio |
ER | 3 | dB | ||||
|
Average launch power of OFF transmitter, each lane |
-30 | dBm | |||||
|
Optical return loss tolerance |
12 | dB | |||||
|
Encircled Flux |
≥ 86% @ 19um,≤ 30% at 4.5um |
||||||
| Receiver | |||||||
| Center Wavelength | λ | 840 | 850 | 860 | nm | ||
| Damage Threshold | THd | 5 | dBm | ||||
|
Average power at receiver input, each lane |
-8.4 | 4 | dBm | ||||
|
Receive Power, each lane (OMA) |
3 | dBm | |||||
|
Receiver Reflectance |
-12 | dB | |||||
|
Receiver sensitivity(OMAouter)each lane(SECQ=1.4dB) |
|
-6.5 | dBm | ||||
|
Stressed receiver sensitivity in OMA |
-3.4 | dBm | |||||
|
Conditions of stressed receiver sensitivity test |
|||||||
|
Stressed eye closure (SECQ), lane under test |
4.5 | dB | |||||
|
OMA of each aggressor lane |
3.0 | dBm | |||||
Applications
Data Center Interconnect
200G Ethernet
Compatibility
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
