Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC RoHS
Model Number:
HL-QSFP28-ZR4-60
QSFP28 100G ZR4 60KM SMF with FEC Dual LC LAN WDM 4 Lanes Optical Modules
Hilink QSFP28 ZR4 modules are designed for for 60km optical communication applications. This module contains 4-lane optical transmitter, 4-lane optical receiver and module management block including 2 wire serial inter-face. The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector. A block diagram is shown in Figure 1.
Features
Optical Characteristics
| Parameter | Symbol | Min | Typ | Max | Unit | Ref. | ||
| Transmitter | ||||||||
| L0 | 1294.53 | 1295.56 | 1296.59 | nm | |||
| L1 | 1299.02 | 1300.05 | 1301.09 | nm | ||||
| L2 | 1303.54 | 1304.58 | 1305.63 | nm | ||||
| L3 | 1308.09 | 1309.14 | 1310.19 | nm | ||||
| Side-mode Suppression Ratio | SMSR | 30 | - | - | dB | |||
| Total Average Launch Power | PT | 8 | - | 12.5 | dBm | |||
| Average Launch Power, each Lane | 0 | - | 4.5 | dBm | ||||
| Difference in Launch Power between any two Lanes (OMA) | - | - | 3 | dB | ||||
| Extinction Ratio | ER | 6 | - | - | dB | |||
| Transmitter Eye Mask Definition {X1, X2, X3, Y1, Y2, Y3} | {0.25, 0.4, 0.45, 0.25, 0.28, 0.4} | 1 | ||||||
| Optical Return Loss Tolerance | - | - | 20 | dB | ||||
| Average Launch Power OFF Transmitter, each Lane | Poff | -30 | dBm | |||||
| Relative Intensity Noise | Rin | -130 | dB/HZ | |||||
| Optical return loss tolerance | 20 | dB | ||||||
| Transmitter reflectance | - | - | 12 | dB | ||||
| Receiver | ||||||||
| Total Damage Threshold | THd | 5.5 | dBm | 1 | ||||
| Receiver Sensitivity per Lane | R | -23 | dBm | |||||
| Average Power at Receiver Input, each Lane | R | -23 | -7 | dBm | 1 | |||
| LOS De-Assert | LOSD | -25 | dBm | |||||
| LOS Assert | LOSA | -40 | dBm | |||||
| LOS Hysteresis | LOSH | 0.5 | dB | |||||
Note
1. Sensitivity is specified at BER@1E-12 with FEC
Applications
Compatibility
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.

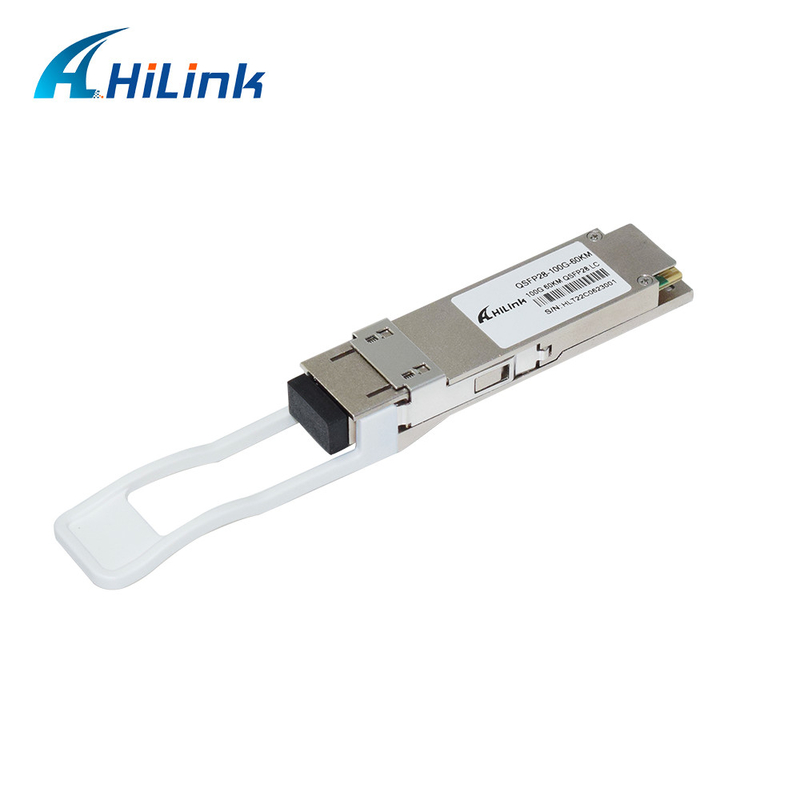

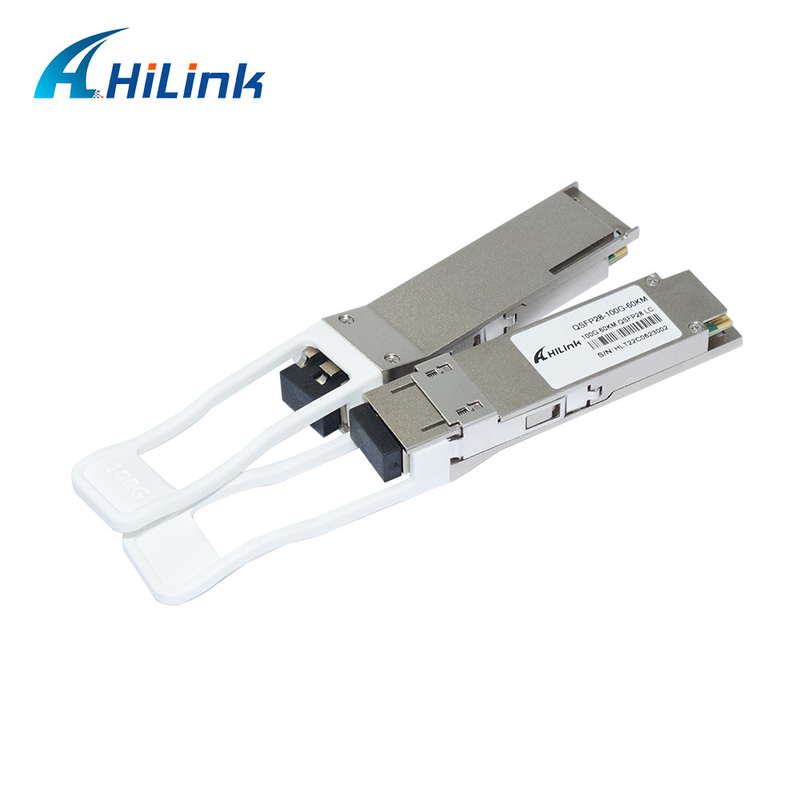

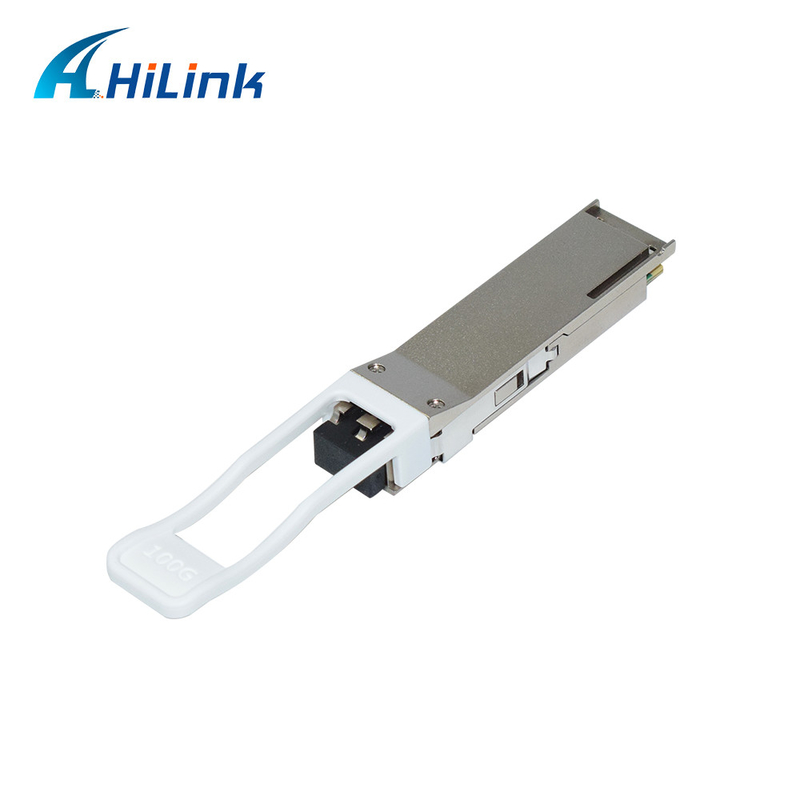

Details Photos
Hilink Advantage
1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2."Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
