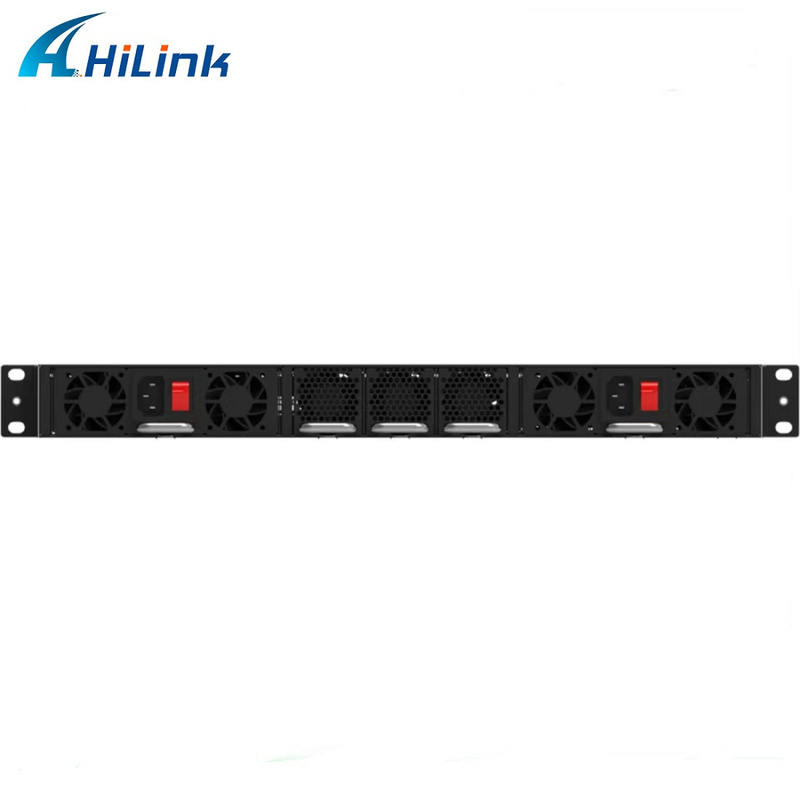

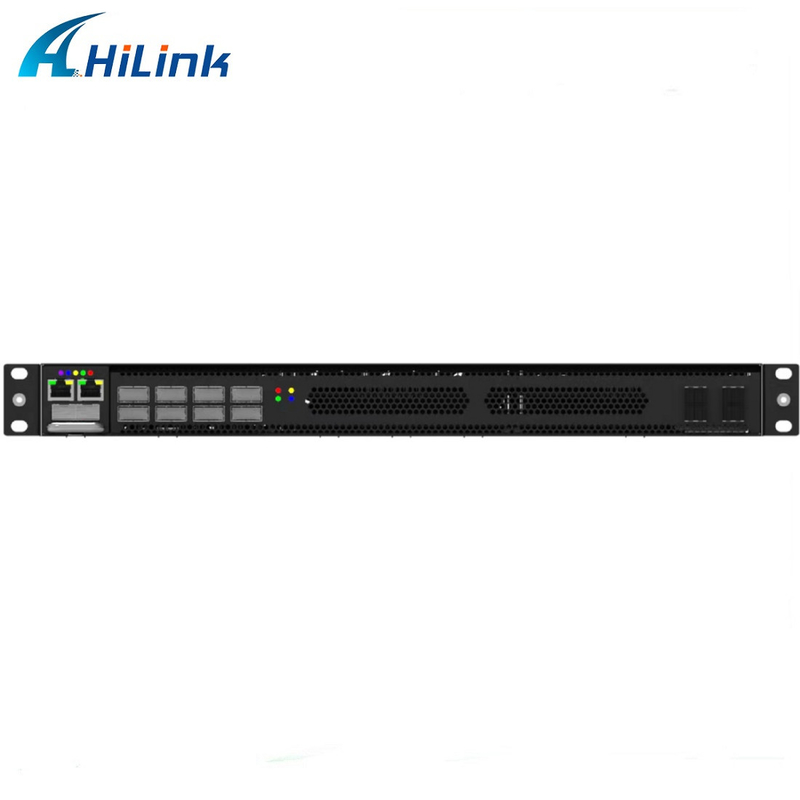

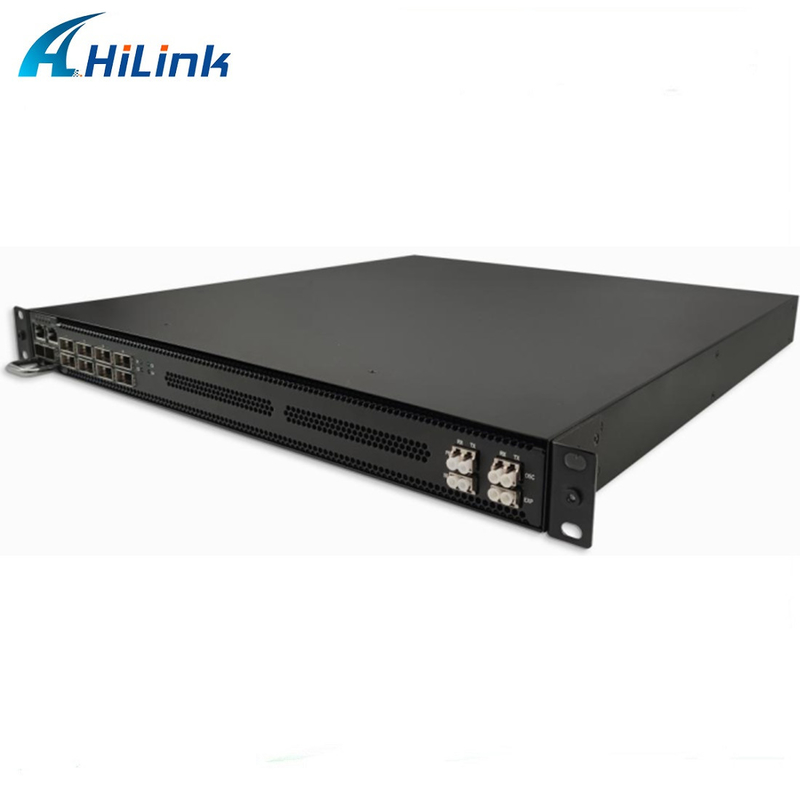

HL1500P Integrated DWDM Platform 800G P2P Transmission 120KM Box Type Service System
Hilink's HLBOX1500P Box Type 100G DWDM System is an integrated WDM transmission platform, which meets the application of 8*100G service by 0~120KM point-to-point transmission without middle repeater stations, adopts PAM4 DWDM QSFP28 transmission technology, supports automatic adjustment of line side dispersion and optical power, OLP protection, out-of-band OSC management and stack expansion; the appearance conforms to the network switch form, suitable for customers in the data industry, cost-effective, reducing the difficulty of system fiber connection, and facilitating service opening and daily maintenance.
Features
* Support up to 8*100GE/OTU4 service access
* Support dual / single fiber core transmission
* Support automatic adjustment of dispersion
* Support automatic adjustment of optical power
* Support 1+1 OLP protection of line side
* Support 0~120KM point-to-point transmission without middle repeater stations
* Support Stacking expansion＞1.6T
* Support Out-of-band OSC management
* Support Web/SNMP/CLI management
Performance Parameter
| Parameter | Unit | Performance Index | |
|
Optical Fiber Type |
|
G.652(SMF-28) |
|
|
Service Access Type |
|
100GE/OTU4 |
|
| Transmission Capacity
|
Gbps |
8*100G |
|
| Link Power Margin(point-to-point without middle repeater station)
|
dB |
≤23dB(with BA+PA optical amplifiers) |
|
|
Sourrounding Parameter |
Working Temperature |
℃ |
-10~ 60℃ |
|
Storage Temperarure |
℃ |
-40℃~ 85℃ |
|
|
Relative Moisture |
5% ~ 95% (No condensation) |
||
| Size | 1U | mm |
486W×492D×44.5H ( including mounting ears and infront & rear pull tabs) |
|
Power Supply |
AC | V |
100~240,50~60hz |
| DC |
36~72 |
||
|
Power Consumption |
1U | W |
＜350(Max) |
