Place of Origin:
China
Brand Name:
Hilink
Certification:
CE FCC Rohs
Model Number:
HL-OTN-DCI1600
Video

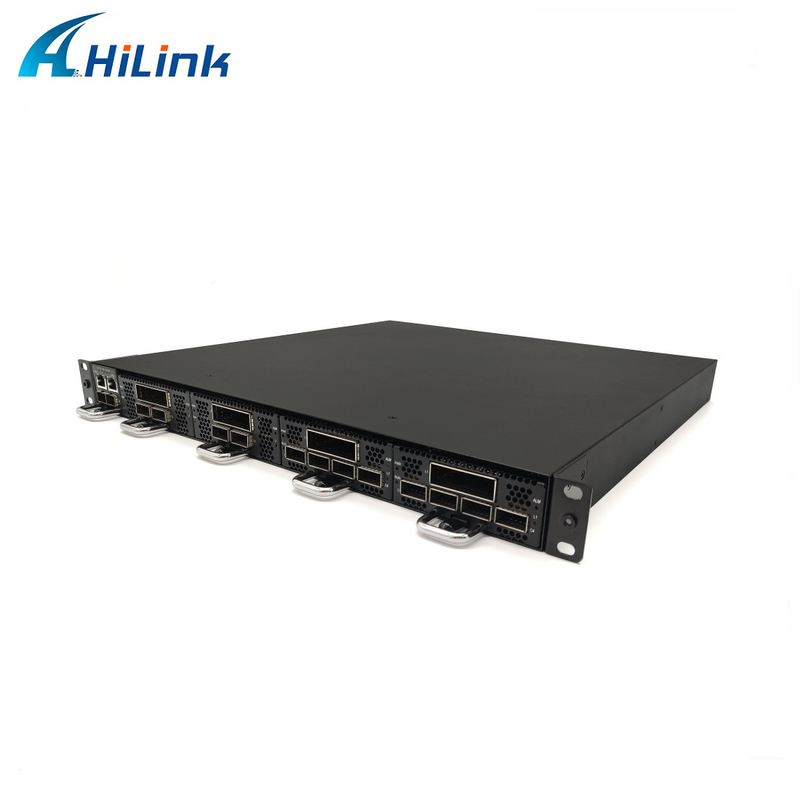

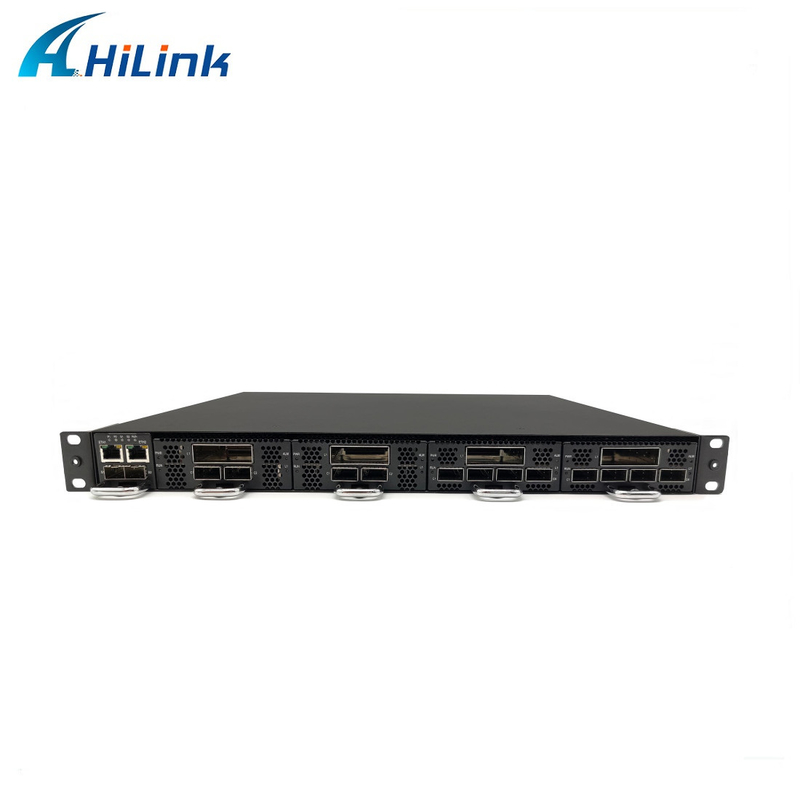

1U Chassis Optical Optical Service Conversion Subsystem 1.6T Capacity Data Center Interconnection
Hilink's DCI1600 optical service conversion subsystem is a service platform customized for data center interconnection (DCI) applications. It can achieve a maximum transmission capacity of 1.6Tbps. The line side has 8x200G CFP2 coherent optical paths, and the client side can access 16x100G QSFP28. Its powerful transmission capacity is very suitable for the using in data center computer rooms. At the same time, the platform adopts front and rear heat dissipation design, and is equipped with multiple sets of high-speed fans to ensure excellent heat dissipation performance.
Features
* 1U chassis can reach the data transmission capacity up to 1.6T
Performance Parameter
| Parameter | Unit | Performance Index | |
|
Max Transmission Capacity |
Tbps |
1.6 |
|
|
Service Access Rate |
Gbps |
100GE/100G OTU4 |
|
|
Line Side Rate |
Gbps |
100/200/400 |
|
|
Coherent Modulation Technology |
QPSK/8QAM/16QAM |
||
|
Sourrounding Parameter |
Working Temperature |
℃ |
-10~ 60℃ |
|
Storage Temperarure |
℃ |
-40℃~ 85℃ |
|
|
Relative Moisture |
5% ~ 95% (No condensation) |
||
| Size | 1U | mm |
482.6W×400D×44.5H |
|
Power Supply |
AC | V |
100~240,50~60hz |
| DC |
36~72 |
||
|
Power Consumption |
1U | W |
＜350(Max) |
Hilink Advantages
1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2. " Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
